Digging can be continued. The depth is measured compared to the original reference level, even
though the altitude of the excavator might have changed (Figure 35).

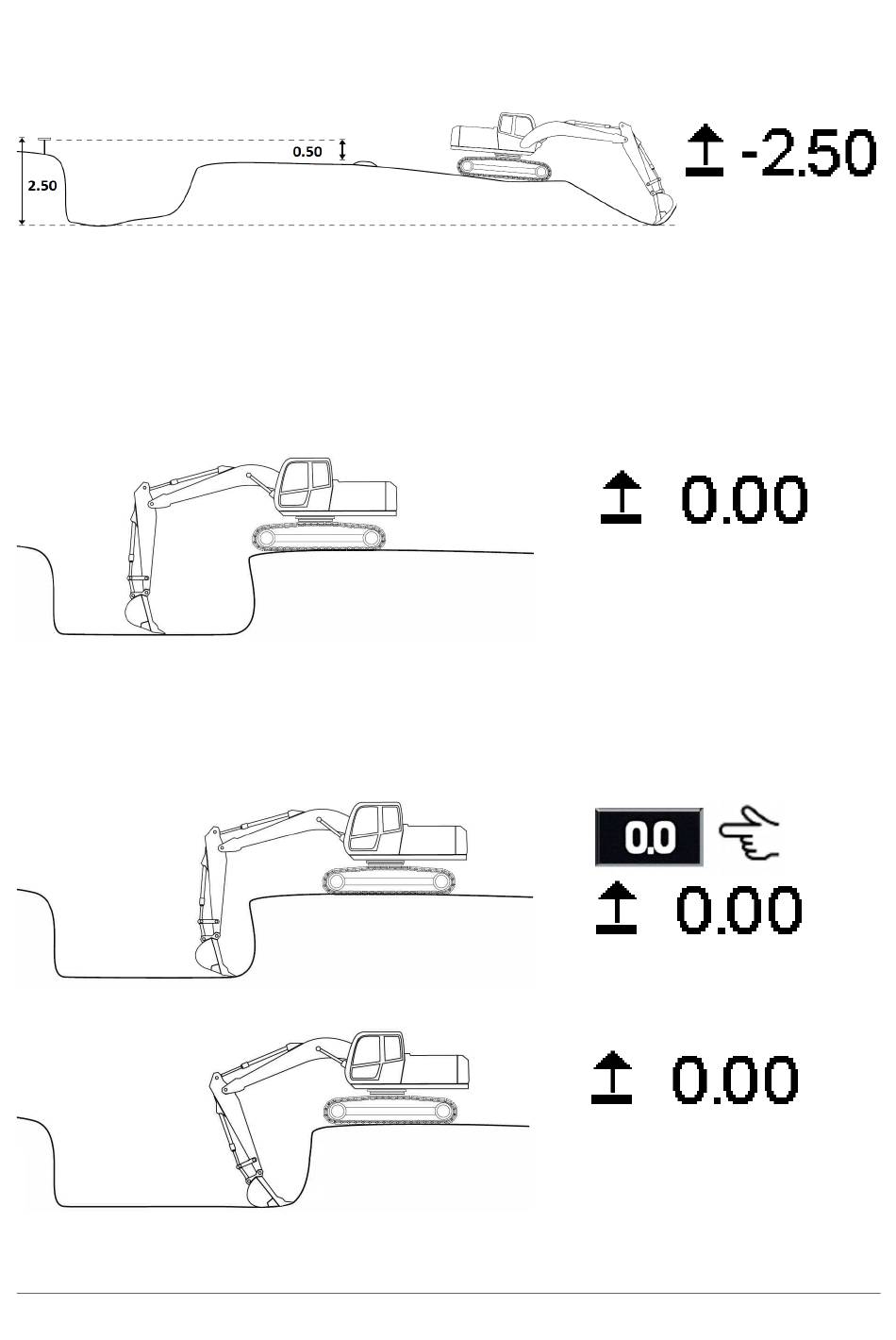

Figure 35. Digging can be continued after moving the machine

6.3.3 Moving the excavator by using the zero function

When measuring depth, the excavator can be moved in order to continue digging at the same
depth (for example when digging a foundation) with the help of the zero function. Measure the
depth normally (Figure 36). In this example, the "Starting level" is "0.00".
Figure 36. Measure depth normally
Move the machine to a new place, to a point where digging can be continued. After the excavator
has been moved, reach the measuring point on the completed surface and zero the measurement
value by pressing the "0.0" button (Figure 37). After zeroing, digging can be continued (figure 38).
Figure 37. Zeroing the reading after moving the excavator
Figure 38. Digging can be continued
