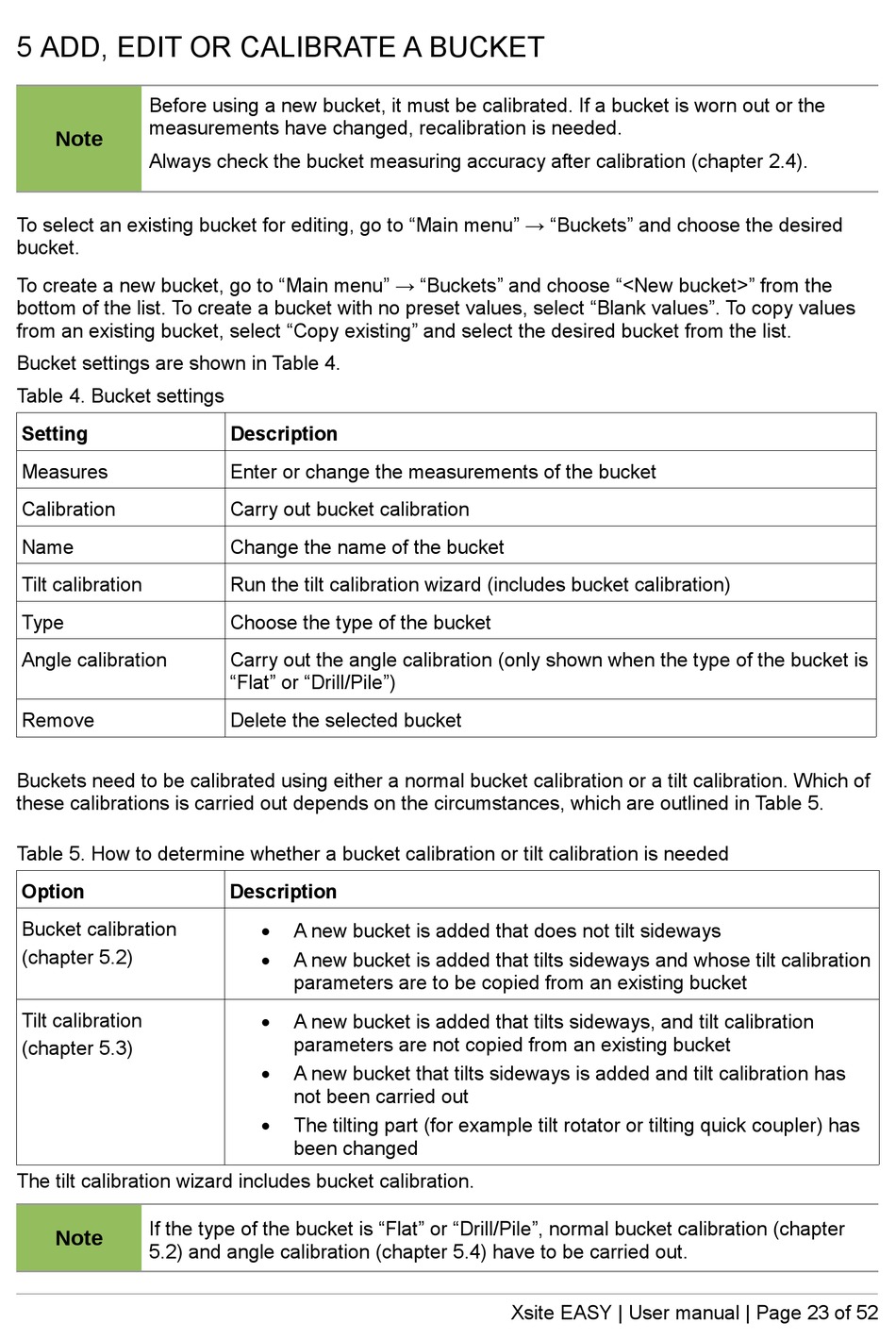

5 ADD, EDIT OR CALIBRATE A BUCKET

Before using a new bucket, it must be calibrated. If a bucket is worn out or the
measurements have changed, recalibration is needed.
Note
Always check the bucket measuring accuracy after calibration (chapter 2.4).
To select an existing bucket for editing, go to "Main menu" → "Buckets" and choose the desired
bucket.
To create a new bucket, go to "Main menu" → "Buckets" and choose "<New bucket>" from the
bottom of the list. To create a bucket with no preset values, select "Blank values". To copy values
from an existing bucket, select "Copy existing" and select the desired bucket from the list.
Bucket settings are shown in Table 4.
Table 4. Bucket settings
Setting
Measures
Calibration
Name
Tilt calibration
Type
Angle calibration
Remove
Buckets need to be calibrated using either a normal bucket calibration or a tilt calibration. Which of
these calibrations is carried out depends on the circumstances, which are outlined in Table 5.
Table 5. How to determine whether a bucket calibration or tilt calibration is needed
Option
Bucket calibration
(chapter 5.2)
Tilt calibration
(chapter 5.3)
The tilt calibration wizard includes bucket calibration.
If the type of the bucket is "Flat" or "Drill/Pile", normal bucket calibration (chapter
Note
5.2) and angle calibration (chapter 5.4) have to be carried out.
Description
Enter or change the measurements of the bucket
Carry out bucket calibration
Change the name of the bucket
Run the tilt calibration wizard (includes bucket calibration)
Choose the type of the bucket
Carry out the angle calibration (only shown when the type of the bucket is
"Flat" or "Drill/Pile")
Delete the selected bucket
Description
A new bucket is added that does not tilt sideways
A new bucket is added that tilts sideways and whose tilt calibration
parameters are to be copied from an existing bucket
A new bucket is added that tilts sideways, and tilt calibration
parameters are not copied from an existing bucket
A new bucket that tilts sideways is added and tilt calibration has
not been carried out
The tilting part (for example tilt rotator or tilting quick coupler) has
been changed
Xsite EASY | User manual | Page 23 of 52
