2.3.4 Date and time

The date and time can be changed by selecting "Main menu" → "Display unit" → "Date and time".
Select the page 1/2 to adjust time and page 2/2 to adjust date. The order of the digits for adjusting
the date is year, month and date.

2.3.5 Language

Select the language in "Main menu" → "Display unit" → "Language". Select the desired language
and press the "OK" button to confirm the change. After choosing the language, press any key for
the system to shutdown. Turn the system ON again afterwards by pressing the "Power" button.
Regardless of the chosen language, accessing the language selection is always possible as
follows: press the "Main menu" button → press "Down arrow" until the last (bottom) selection is
chosen → press "OK" → press "Down arrow" until the last (bottom) selection is chosen → press
"OK". The language menu will now open.

2.4 Checking the accuracy of the system

The accuracy of the system should be always tested before starting work. The following
procedures provide an easy way to check the accuracy.
During the test, all machine parts (bucket, stick, boom) should move to get 100 %
Note
certainty of the accuracy of the system.

2.4.1 Depth and distance accuracy test 1

Below are the instructions for carrying out accuracy test 1 (Figure 3).
1. Place the bucket on a reference point and zero the measurement value (Figure 23).
2. Turn the bucket (without tilting it sideways) to a different position and place it on the same
point.
3. The depth and distance readings should be close to zero in every position ( ±1 cm
accuracy tolerance is allowed).

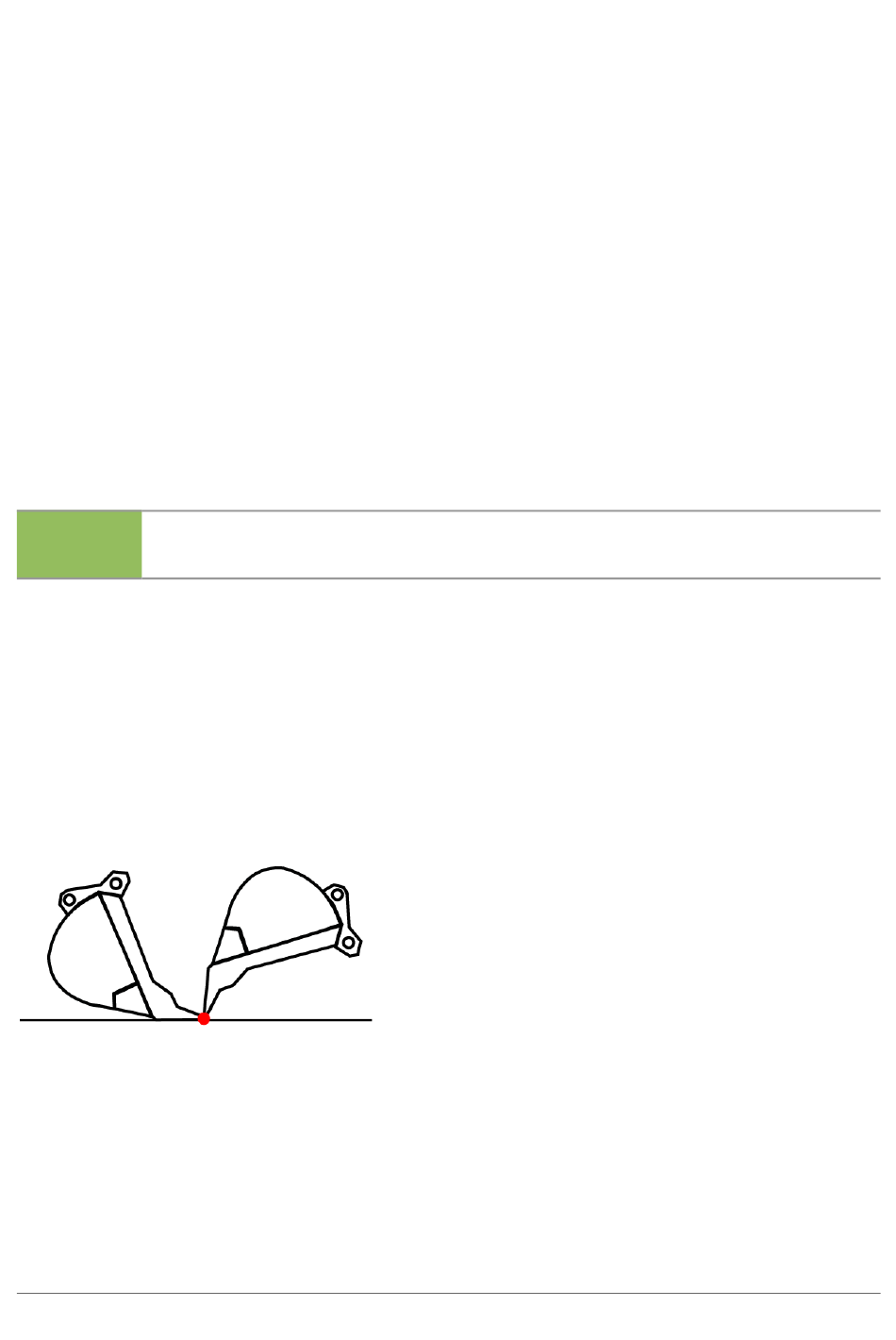

Figure 3. Accuracy test 1
Xsite EASY | User manual | Page 12 of 52
