2 GETTING STARTED

This chapter provides information about connecting the cables, starting and shutting down the
system, display unit settings and basic accuracy tests. It also introduces the detachment of the
laser receiver and changing a tilting bucket into a basic bucket.

2.1 Connecting the cables

Connect the power cable and the CAN cable to the connectors on the rear of the display (Figure
2). Then twist the connectors clockwise while pushing. The connectors are properly connected
when, with medium power applied, they do not turn further clockwise. The cables are disconnected
by twisting the connectors anticlockwise.
Caution
Do not connect the CAN cable and power cable to each other because the CAN-
bus will become permanently powered and eventually empty the battery of the
excavator.

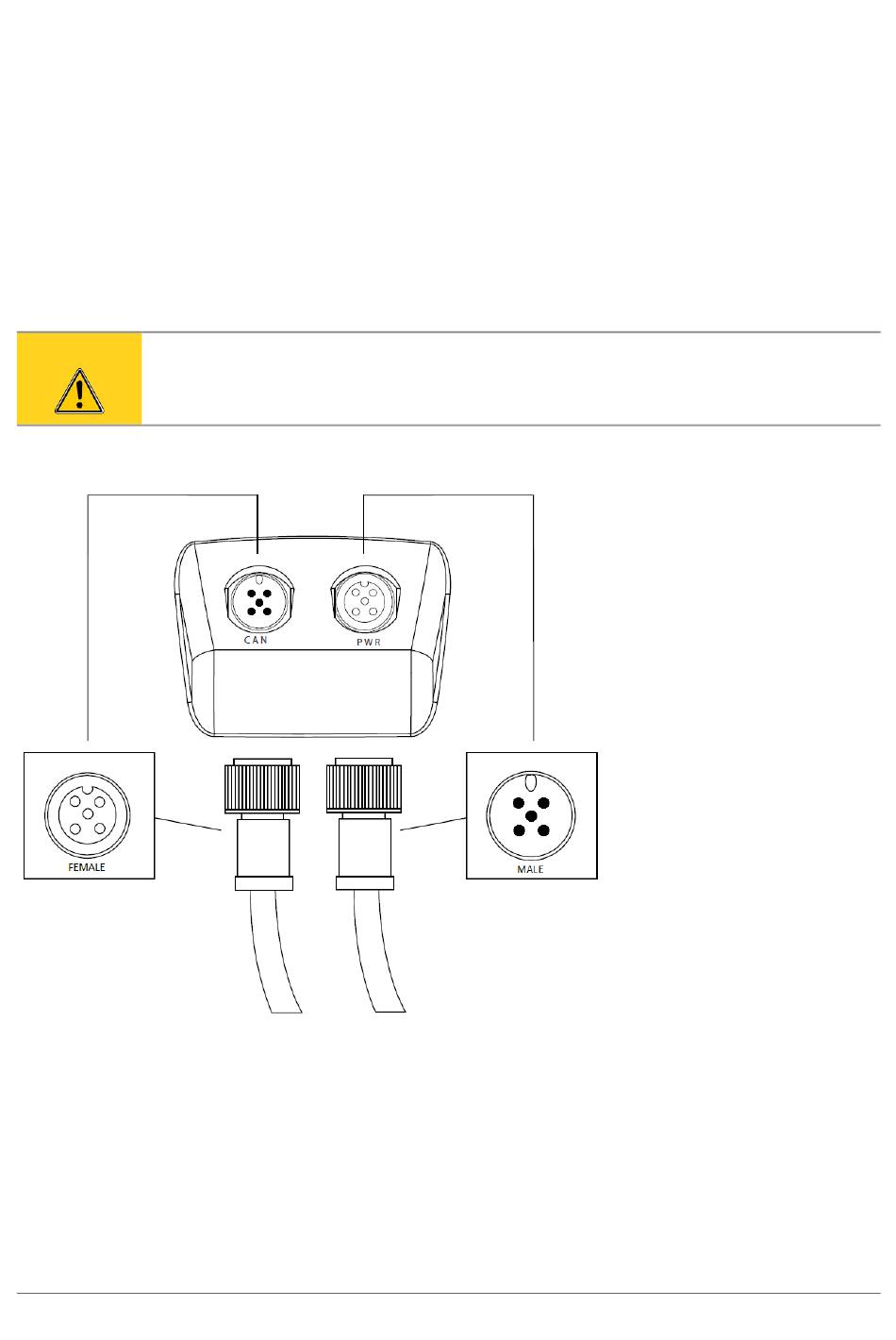

Figure 2. Connecting the power cable and the CAN cable
After connecting the cables, attach the display to the window of the excavator. Attach the display in
a place where it creates minimum obstruction to the view from the cabin.
