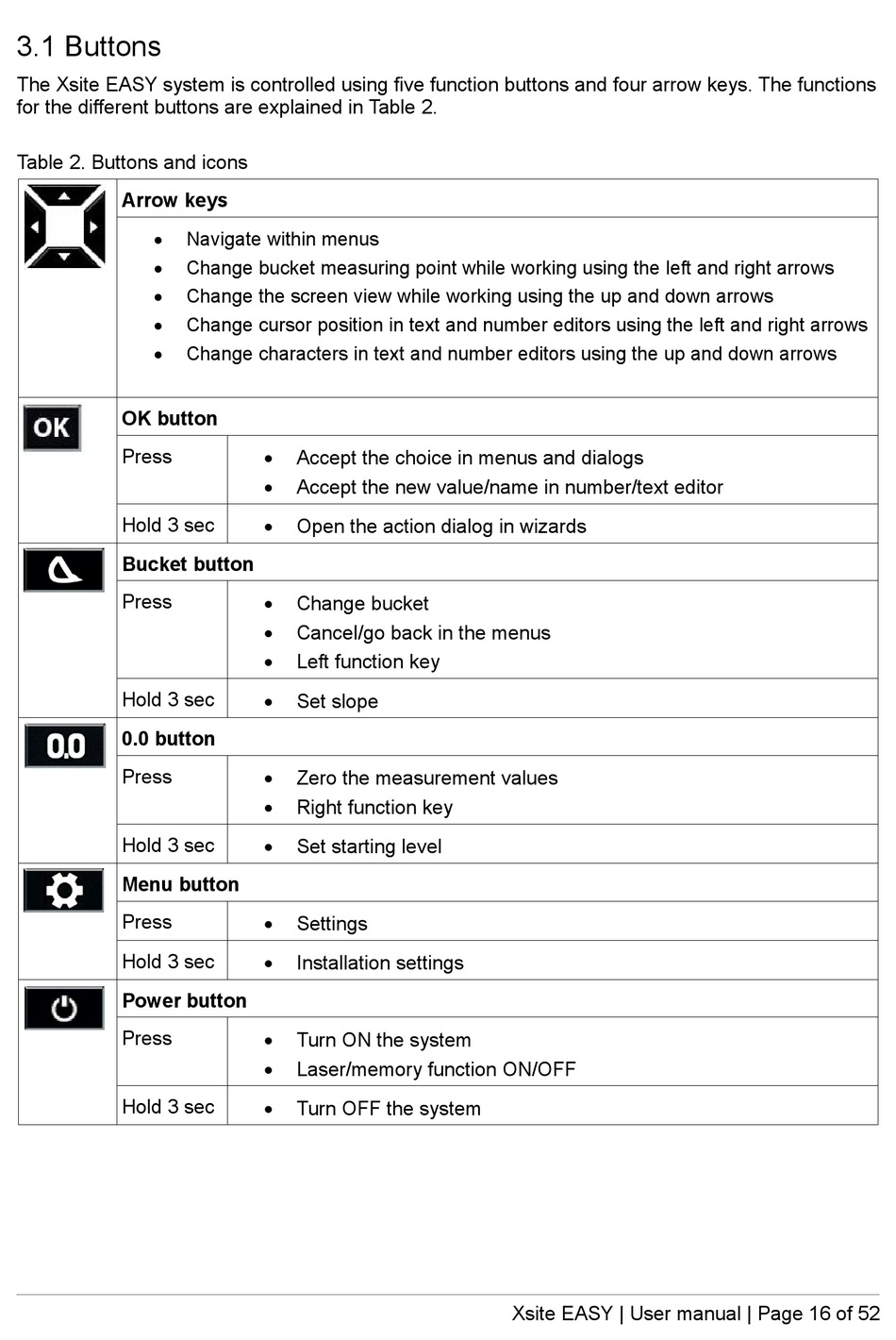

3.1 Buttons

The Xsite EASY system is controlled using five function buttons and four arrow keys. The functions
for the different buttons are explained in Table 2.
Table 2. Buttons and icons
Arrow keys





OK button
Press
Hold 3 sec
Bucket button
Press
Hold 3 sec
0.0 button
Press
Hold 3 sec
Menu button
Press
Hold 3 sec
Power button
Press
Hold 3 sec
Navigate within menus
Change bucket measuring point while working using the left and right arrows
Change the screen view while working using the up and down arrows
Change cursor position in text and number editors using the left and right arrows
Change characters in text and number editors using the up and down arrows

Accept the choice in menus and dialogs

Accept the new value/name in number/text editor

Open the action dialog in wizards

Change bucket

Cancel/go back in the menus

Left function key

Set slope

Zero the measurement values

Right function key

Set starting level

Settings

Installation settings

Turn ON the system

Laser/memory function ON/OFF

Turn OFF the system
Xsite EASY | User manual | Page 16 of 52
