ADJUSTMENTS

ADJUSTMENTS
WARNING! Incorrect adjustments can decrease the performance of the system
and create premature wear of components. After the initial installation, and after
every future reinstallation of the tracks, always adjust track angle of attack,
system alignment and track tension after the first use of the vehicle.

Front Track Angle of Attack

To obtain the correct angle of attack on front tracks systems, use the
following procedure. Refer to the track kit installation instructions for
more information as needed. Perform steps 3-6 for both front track
systems.
1. Position the vehicle on a level surface.
2. Stop the engine.
3. Using the handlebars or steering wheel, make sure the tracks are in
the straight-ahead position.

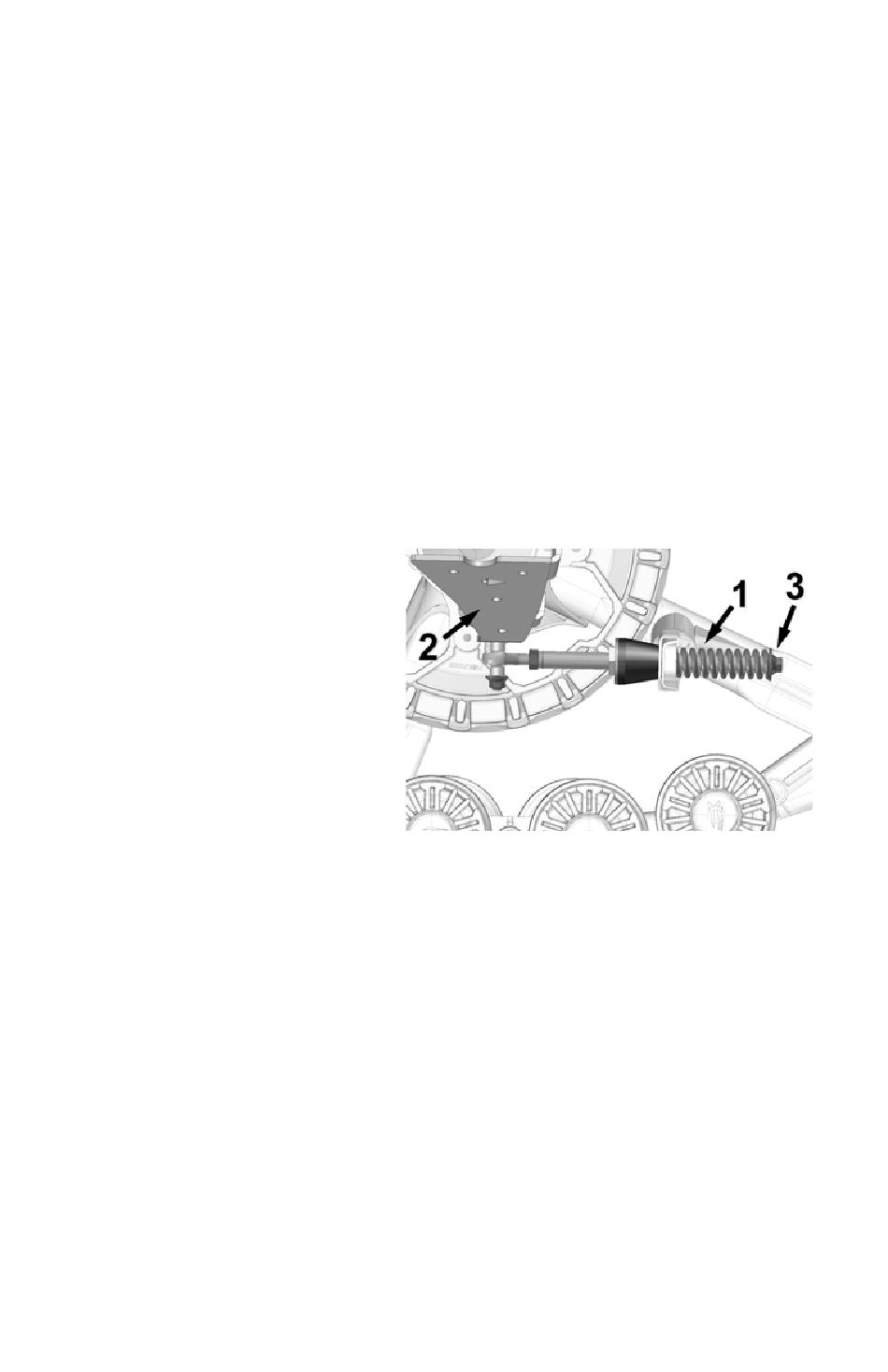

4. Verify that the stabilizing arm
(1) is attached to the front
anchor bracket (2).
5. Verify that the spring
assembly bolt (3) is
tightened to specification.
Torque: 29.5 ft. lbs. (40 Nm)
6. Verify that stabilizing arm
components are installed in
the correct order. Refer to
the track kit installation
instructions for more information as needed.
18
