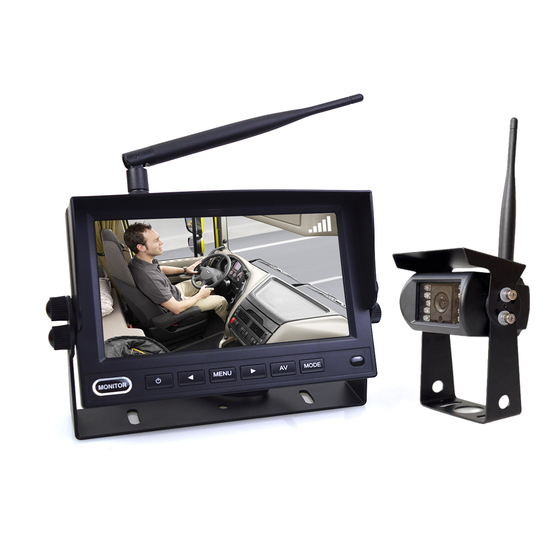

7" DIGITAL WIRELESS SYSTEM WITH DVR
1. Monitor antenna
2. Sun shade
7. Left
3. TFT LCD
4. Bracket screws
9. Right
5. U-Bracket
10. Channel switch
Short press
In menu mode, short
to turn
press to left option
on/of monitor
In video mode:
1.
Long press (3 sec)
to rotate video
2. Short press to
change brightness
WL70 USER MANUAL
6. Power
11. Mode (OK)
12. Camera bracket
8. Menu (Return)
13. IR lights
14. Lens
15. Camera antenna
MENU
In video mode,
press for main
menu
In all menus,
short press to
return
Hardwire the monitor/rear
camera positive and negative
wires to an accessory feed
In menu mode,
In video mode,
press to change
short press
for right option
channels
In video mode,
short press to
change brightness
AV
MODE
In menu mode,
press to enter
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Polaris WL70
Summary of Contents for Polaris WL70
- Page 1 WL70 USER MANUAL 7" DIGITAL WIRELESS SYSTEM WITH DVR Hardwire the monitor/rear camera positive and negative wires to an accessory feed 1. Monitor antenna 6. Power 11. Mode (OK) 2. Sun shade 7. Left 12. Camera bracket 3. TFT LCD 8.
- Page 2 How to Pair Additional Cameras Important: Make sure to power on the camera right after choosing "Pair" on the monitor. If the camera is already powered on before pairing, it won't pair correctly. You can install the camera and connect it to power, but when trying to pair, unplug the camera and plug it back in while it's in pairing mode.
