ADJUSTMENTS

Track System Alignment

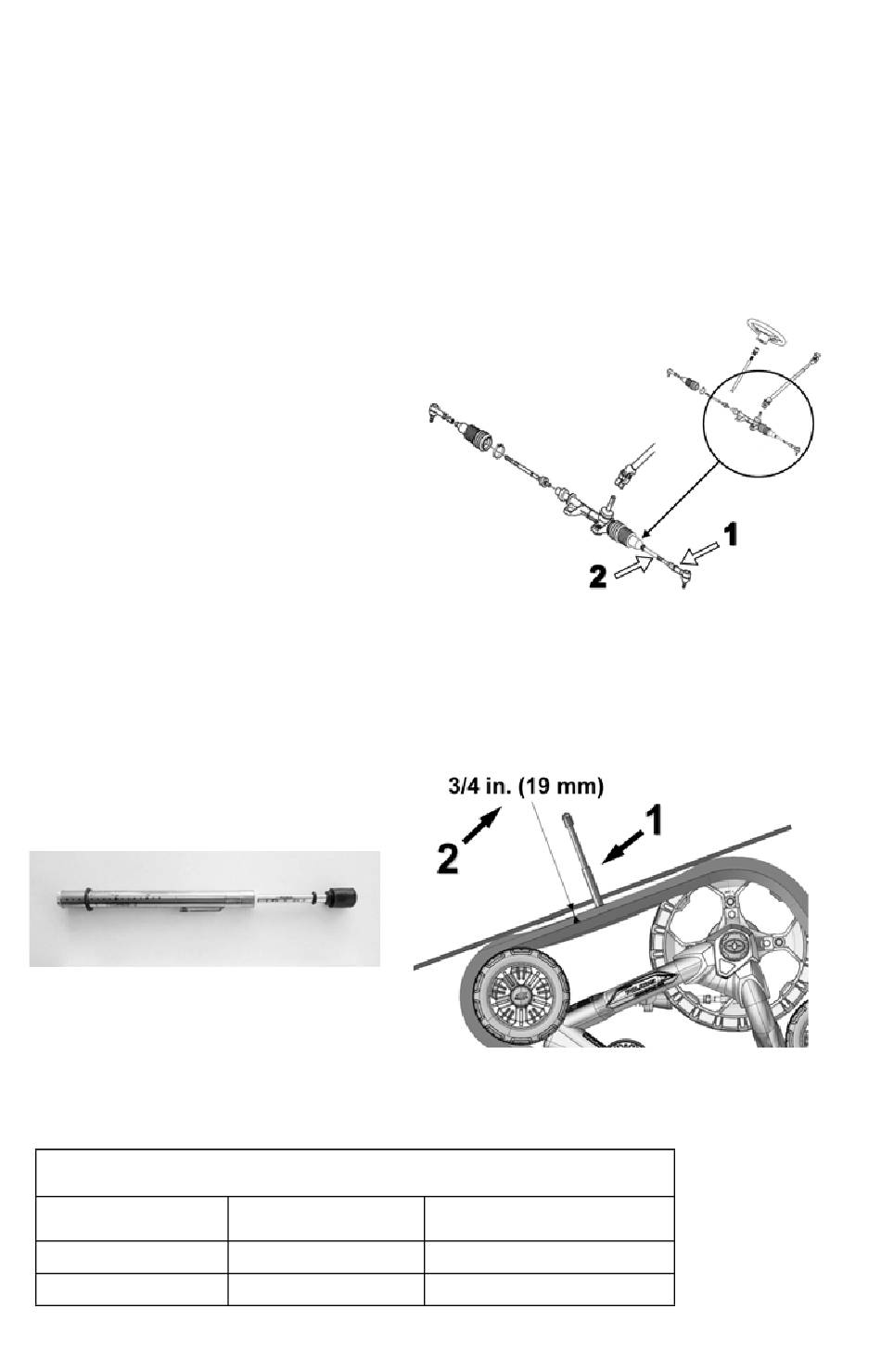

Alignment Adjustment
1. Release the coupling lock nuts (1).
NOTE: Some nuts have reverse threads. Be sure to unlock the nuts in the
proper direction.
2. Screw or unscrew the
coupling rods (2) equally on
both sides of the vehicle.
3. Tighten the lock nuts to
specification. Refer to your
vehicle-specific service
manual.
4. To verify the adjustment,
operate the vehicle in reverse
for 15-20 feet (5-6 m), then
repeat steps 1-4 of the
alignment inspection procedure on page 22.

Rubber Track Tension

Measure and adjust rubber track tension using a tension testing tool and
a flat bar. Apply the recommended force (1) to measure deflection (2).
Refer to the chart below for track tension data. If adjustment is needed,
see page 25.
Track
Front
Rear
24
Track Tension Data Chart
Force
24 lbs. (11 kg)
24 lbs. (11 kg)
Deflection
3/4 inch (19 mm)
3/4 inch (19 mm)
