POLARIS
® ®
PRO HD 3500 WINCH KIT
P/N 2882243
APPLICATION
Verify accessory fitment at Polaris.com.
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for.
Please retain these installation instructions for future reference and parts ordering
information.
KIT CONTENTS

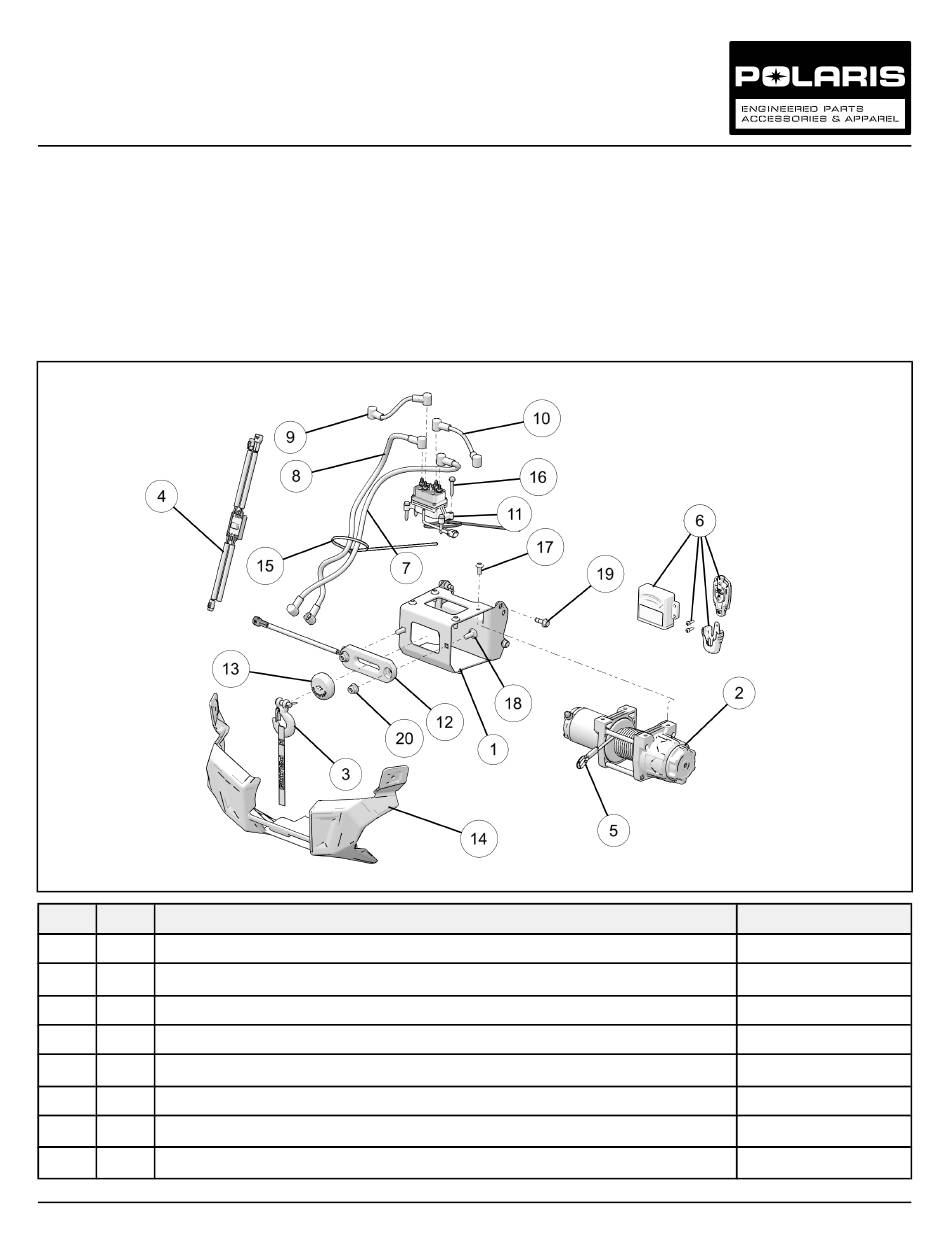

This Kit includes:
REF
QTY
PART DESCRIPTION
1
1
Winch Mount Bracket
2
1
Winch Assembly, 3500 HDDS
3
1
Latch Hook
4
1
Control Box
5
1
Rope
6
1
Wireless Remote Kit
7
1
Winch Cable, Yellow 6 GA
8
1
Winch Cable, Blue 6 GA
Instr 9927476
Rev 01 2016-11
PART NUMBER
1022610
2206383
2411836
**
2878888
2879316
4013468-750
4013469-665
Page 1 of 12
