Front Track System Alignment

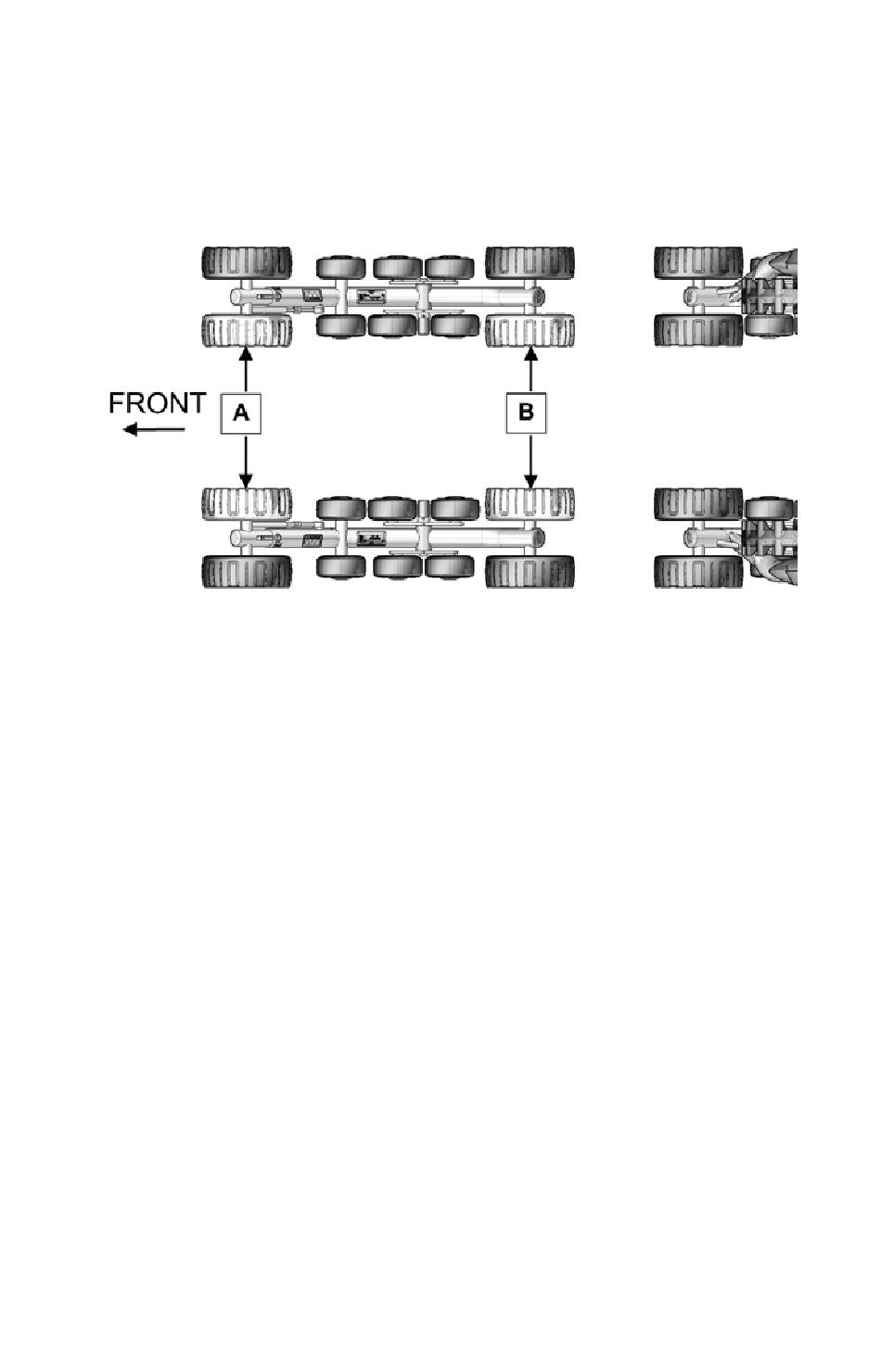

Alignment Inspection
4. Subtract measurement B from measurement A. The result must be 0
to 1/8 inch (0-3 mm). If the result is not within this range, adjust
alignment. See page 24.
NOTE: Adjustments will be easier and more precise if you begin when
measurement
A - B = 0 to 1/8 inch (0 to 3 mm)
A is greater than measurement
ADJUSTMENTS
23
