USER'S
GUIDE

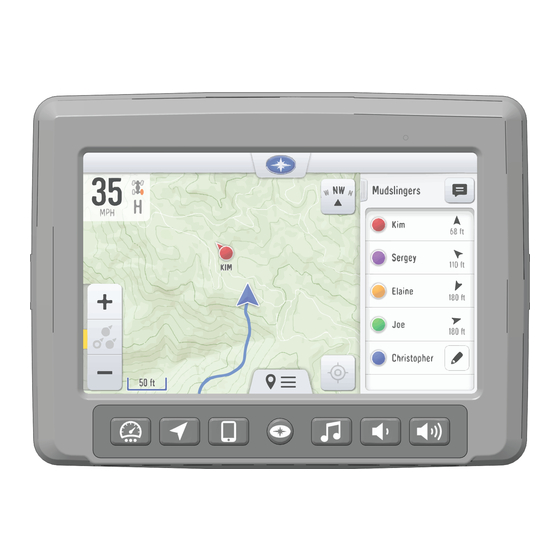

RIDE COMMAND

Advertisement

Table of Contents
loading

Related Manuals for Polaris RIDE COMMAND

Summary of Contents for Polaris RIDE COMMAND

  • Page 1 USER’S GUIDE RIDE COMMAND...
  • Page 2 For more information go to www.P65Warnings.ca.gov/passenger-vehicle. For videos and more information about a safe riding experience with your Polaris vehicle, scan this QR® code with your smartphone.
  • Page 3 RIDE COMMAND User’s Guide For RANGER, RZR, and GENERAL Off-Road Vehicles...
  • Page 4 Unless noted, trademarks are the property of Polaris Industries, Inc. Ride Command® is a registered trademark of Polaris Industries, Inc. iPhone® and iPod® are registered trademarks of Apple Inc. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
  • Page 5 WELCOME Thank you for purchasing a POLARIS vehicle, and welcome to our world-wide family of POLARIS enthusiasts. Be sure to visit us online at www.polaris.com for the latest news, new product introductions, upcoming events, career opportunities and more. Here at POLARIS we proudly produce an exciting line of utility and recreational products.
  • Page 6 SAFETY SYMBOLS AND SIGNAL WORDS The following signal words and symbols appear throughout this manual and on your vehicle. Your safety is involved when these words and symbols are used. Become familiar with their meanings before reading the manual. DANGER DANGER indicates a hazardous situation which, if not avoided, WILL result in death or serious injury.
  • Page 7 TABLE OF CONTENTS Introduction ....7 Getting Started ....11 Features and Controls .
  • Page 9 INTRODUCTION INTRODUCTION OVERVIEW Thank you for purchasing a RIDE COMMAND Display, and welcome to the Polaris RIDE COMMAND App. This intuitive display gives you access to your vehicle’s custom information and a variety of features. For a safe and enjoyable riding experience with your new Display, please read your vehicle’s owner’s manual and this Display owner’s manual.
  • Page 10 INTRODUCTION DEVICE OPERATING REQUIREMENTS Phone functionality is dependent on the capabilities of your cell phone. NOTICE Some cell phones or operating systems will not work as shown in this manual. RADIO COMPLIANCE STATEMENTS The following statements apply to radio components offered with this vehicle. These include but may not be limited to the touchscreen display.
  • Page 11 MANUFACTURER 9200 Series Display Polaris Industries Inc. Hereby, Polaris Industries Inc. declares that the above radio equipment is in compliance with EU Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:...
  • Page 13 GETTING STARTED GETTING STARTED OVERVIEW Ride Command Buttons Icon Bar Drive Mode Gauge View Mode Widgets Speedometer/Tachometer Settings Gear Status RIDE COMMAND BUTTONS BUTTON DESCRIPTION FUNCTION Menu/Power Press the Menu/Power button to access Button the settings. To reboot the display, press and hold for 5 seconds.
  • Page 14 GETTING STARTED BUTTON DESCRIPTION FUNCTION Map Button Press the Map button to access the map, manage your rides and waypoints, and to see your friends on the map with Group Ride. Phone Button Press the Phone button to access your Bluetooth®...
  • Page 15 GETTING STARTED DRIVE MODE INDICATOR DESCRIPTION FUNCTION When the switch is on 2X4, the ATV is in two-wheel drive at all times. When in All-Wheel Drive, the demand drive unit will automatically engage any time the rear wheels lose traction. When the rear wheels regain traction, the demand drive unit will automatically disengage.
  • Page 16 To access the Setting menu, press the Menu/ Power button You can also navigate to the settings menu by pressing the POLARIS logo at the top of the display screen . This will open the Control Panel. From the Control Panel,...
  • Page 17 GETTING STARTED ICON BAR ICON DESCRIPTION FUNCTION Headset Displays icon if headset is connected Signal Strength Displays current cell signal strength Fuel Level Displays current fuel capacity percentage Vehicle Direction Displays vehicle direction Ambient Displays ambient temperature Temperature Clock Displays current time...
  • Page 19 FEATURES AND CONTROLS FEATURES AND CONTROLS MENU/POWER Press the Menu/Power button once to access the Badge Panel. The Badge Panel provides quick and easy access to key display features, for more information on the Badge Panel, see page 18. Press and Hold the Menu/Power button for five seconds to perform a hard reboot of the display screen.
  • Page 20 The badge panel provides easy access to frequently used features, basic display and vehicle controls, and a list of recent notifications. To access the Badge Panel, press the Polaris logo at the top of the display screen, or press the Polaris Menu/Power hard button.
  • Page 21 FEATURES AND CONTROLS SCREEN BRIGHTNESS From the Control tab , select screen brightness by moving the touchscreen slider to the left or right . Press the AUTO check box to allow the screen to adjust automatically based on ambient light conditions. DISPLAY MODE From the Control tab , select the display mode from the available options...
  • Page 22 FEATURES AND CONTROLS GAUGE SCREEN Press the Gauge Screen button to toggle between gauge screens. The display comes loaded with two different gauge screens. Additional gauge screens can be added or deleted. Each gauge screen is customizable and can be set up in the following configurations: •...
  • Page 23 FEATURES AND CONTROLS MAP SCREEN Press the MAP SCREEN button shown above to display the map screen. The map will center you based on the location of the GPS. NOTE Controls on the map surface disappear after 10 seconds of inactivity, return with a tap anywhere on the map.
  • Page 24 FEATURES AND CONTROLS MAP ORIENTATION The COMPASS icon on the right side of the screen toggles north up and course up. It will also re-center your vehicle if not already centered. MAP ORIENTATION MAP ICON North Up view locks the maps orientation so that North is always at the top of the screen, regardless of your vehicle’s position or direction.
  • Page 25 FEATURES AND CONTROLS WAYPOINTS Waypoints are user-defined locations on the map. Waypoints can be saved and shared with friends. To add a waypoint, do the following: 1. From the map screen, tap the map menu icon at the bottom of the display screen 2.
  • Page 26 Connect a smart phone and headset to listen to audio, make and receive calls and text messages, access a phone’s contact list, and call history. CONNECT YOUR PHONE TO THE DISPLAY The Ride Command display is compatible with Android and iOS. Go to https:// ridecommand.polaris.com/en-us/supported-devices for latest operating system compatibility.
  • Page 27 FEATURES AND CONTROLS 3. Ensure the confirmation code on the screen and your phone are the same then press “Pair” on your phone. 4. For optimal experience, enable notifications and sync contacts from your smartphone’s Bluetooth® settings. ANDROID To connect you Android device to the display, do the following: 1.
  • Page 28 3 MPH. CONNECTING YOUR BLUETOOTH® HEADSET WITH THE DISPLAY The display can connect with Polaris approved Bluetooth® headsets to listen to music, take phone calls, and talk with other riders. To connect your Bluetooth® heaset to your display, do the following: 1.
  • Page 29 FEATURES AND CONTROLS AUDIO SCREEN 1. Press the audio screen button shown above to display the audio screen. 2. Use the source button in the top left corner to change between FM, AM, Weather, Bluetooth®, and USB Audio. 3. Press the tune up or down icons to change the radio station by small increments or press the scan up or down icon to search for the next quality signal station.
  • Page 30 FEATURES AND CONTROLS USB / IPOD AUDIO • Show currently playing song, artist, and album, if available • Show song duration and current progress • Browse available music by artist, album, song title and playlist, if available • Show play queue of upcoming songs, add and remove music from queue •...
  • Page 31 PIN ACTIVATED SECURITY SYSTEM (IF EQUIPPED) The Pin Activated Security System (P.A.S.S.) allows you to safely lock and unlock your vehicle from the Ride Command display screen. ENABLE P.A.S.S. 1. Go the settings menu by pressing the Power/Menu button. 2. Select Vehicle Settings from the left toolbar.
  • Page 32 Invite your friends to a group to see their live location on the map of your smartphone, tablet, or in vehicle Ride Command Display. For information on how...
  • Page 33 FEATURES AND CONTROLS GROUP RIDE SETUP There are two ways to set up a group ride. Mobile Phone Group Ride: • Works within cellular range • Requires a tethered mobile phone • Infinite range between vehicles • Works with friends using the mobile app Vehicle-to-vehicle Group Ride: •...
  • Page 34 • Connect your phone via Bluetooth®. If you phone is currently connected you MUST disconnect and reconnect it. • Press the login button to login to your Ride Command account. If you do not have a ride command account, sign up at ridecommand.polaris.com...
  • Page 35 FEATURES AND CONTROLS You are now able to join a group ride with other riders who have a V2V antenna installed. Press the back button to go back to the group ride screen and join your Group Ride. If you would like to ride with friends who do not have a V2V antenna, complete the setup instructions below to set up a mobile phone group ride.
  • Page 36 FEATURES AND CONTROLS RIDING WITH A GROUP 1. Tap the handle by the group name minimize the panel and show more map. 2. After 10 seconds of not interacting with the screen, the map controls will disappear. Tap the screen to make them visible again.
  • Page 37 PLOW MODE (IF EQUIPPED) NOTE Plow Mode is a feature available for use with RANGER XP 1000 vehicles that have a factory installed Ride Command System with a winch and auto stop winch fairlead as part of the factory wiring harness. NOTE It is not recommended to use plow mode with winch in rapid recovery mode.
  • Page 38 FEATURES AND CONTROLS MANUAL PLOW MODE Manual Plow Mode allows you to use the Ride Command touchscreen display to raise and lower the plow. To raise and lower the plow, do the following: 1. To raise the plow, press the up arrow on the touchscreen display and slide it to the left.
  • Page 39 Mode” button on the Ride Command display. PLOWING IN HIGH RANGE Polaris does not recommend plowing in High Range. Excessive belt wear and belt failure, plow damage, and vehicle damage can occur. The system by default will not allow automatic operation when the vehicle is in High Range. This lockout can be beneficial while plowing as it allows the operator to shift to High Range to move the vehicle forward without lowering the plow automatically.
  • Page 41 OPERATION SETTINGS To access the Setting menu, press the Menu/Power button, or tap the POLARIS logo at the top of the display screen. This will open the control panel. From the Control Panel, select the settings tab, and then tap the All Settings button located in the lower right corner of the display screen.
  • Page 42 OPERATION TIME Select the Time tab to do the following: • Set Time from GPS • Select Time Zone • Enable/Disable Daylight Savings Time • Set Time • Set Date • Enable/Disable 24–Hour format AUDIO Select the Audio tab to do the following: •...
  • Page 43 OPERATION ENGINE OVERHEAT INDICATORS NOTICE See your vehicle owner’s manual for more information. A flashing indicator indicates continued operation could result in serious engine damage. The engine management system will automatically reduce engine power and set a fault. Stop the engine immediately. Allow the engine to cool down.
  • Page 45 Polaris-designed Suspension Control Module (SCM). The suspension control algorithms and software were designed and developed by Polaris’ engineering team, leveraging our expertise and deep knowledge of off- road vehicle dynamics. Dynamix Active Suspension proactively makes split-...
  • Page 46 Read your User Guide. Always ride with the latest maps and trails data from polaris.com/ ridecommand. Your vehicle is equipped with an advanced Ride Command display. The suspension control screen provides additional information about the operation of your Dynamix Active Suspension system.
  • Page 47 DYNAMIX ACTIVE SUSPENSION (IF EQUIPPED) DYNAMIX™ SYSTEM COMPONENTS SUSPENSION CONTROL MODULE (SCM) The Suspension Control Module (SCM) contains the logic for suspension con- trol, including communications, operator inputs, and shock drivers. The SCM al- so has an internal 6-axis inertial measurement unit which is used to monitor the performance of the vehicle by the suspension control algorithms.
  • Page 48 DYNAMIX ACTIVE SUSPENSION (IF EQUIPPED) ACCELERATION The system continuously monitors vehicle speed, and accelerator pedal position to increase damping of the rear shocks under high straight line acceleration conditions to keep the vehicle level. AIRBORNE DETECTION The system continuously monitors the state of the vehicle using its 6-axis inertial measurement unit.
  • Page 49 DYNAMIX ACTIVE SUSPENSION (IF EQUIPPED) DYNAMIX MODE SWITCH This RZR is equipped with a suspension control mode switch that allows you to change the suspension control mode of your DYNAMIX™ Active Suspension system on-the-fly. There are 3 available drive modes to select from: Comfort, Sport, and Firm.
  • Page 50 DYNAMIX ACTIVE SUSPENSION (IF EQUIPPED) SPORT In Sport mode, some level of rider comfort is traded for higher performance levels and reduced body motion. Damping ramps up more aggressively as a function of vehicle speed. This mode is recommended for spirited driving where additional suspension system performance is required.
  • Page 51 DYNAMIX ACTIVE SUSPENSION (IF EQUIPPED) INSTANTANEOUS COMPRESSION (IF EQUIPPED) The Instantaneous Compression button allows you to immediately apply full compression damping to all 4 shocks in any handling mode for the full duration of holding the button plus a short delay time. This is intended to be used when encountering unsuspected vehicle events or obstacles to avoid bottom-out or occupant discomfort.
  • Page 53 ON YOUR VEHICLE 1. Connect the USB flash drive to the USB cable and power up your vehicle. 2. On the RIDE COMMAND display, select the Settings menu on your display by pressing the POLARIS icon at the top of the screen.
  • Page 54 4. Try using a different USB flash drive. UPDATE MAPS To update the maps on your display, do the following: 1. Go to ridecommand.polaris.com/update and download the map update to a USB flash drive. 2. Insert USB flash drive into the USB port on your vehicle.
  • Page 55 Go to Nav ....... . 23 Ride Command GPS ........41 Buttons .
  • Page 56 Pin Activated Security System (P.A. S.S.) ........29 Settings .
  • Page 58 For your nearest Polaris dealer, call 1-800-POLARIS (765-2747) or visit www.polaris.com Polaris Industries Inc. 2100 Highway 55 Part No. 9939929 Rev 01 Medina, MN 55340 Printed in USA...
