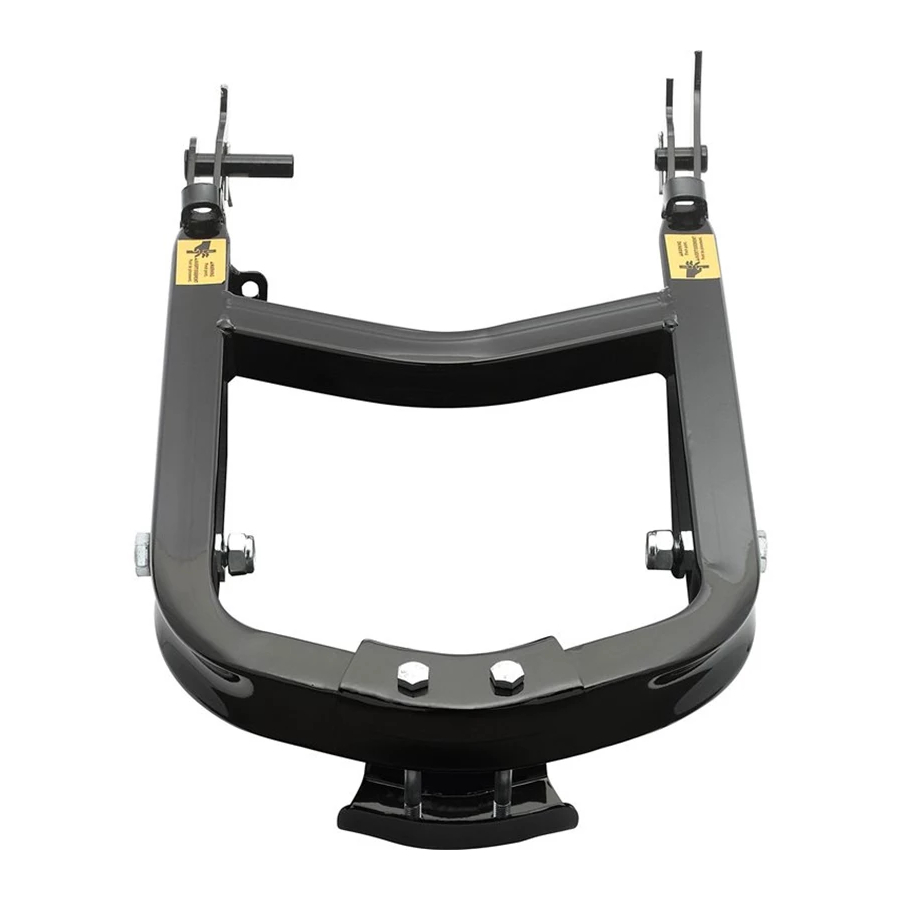

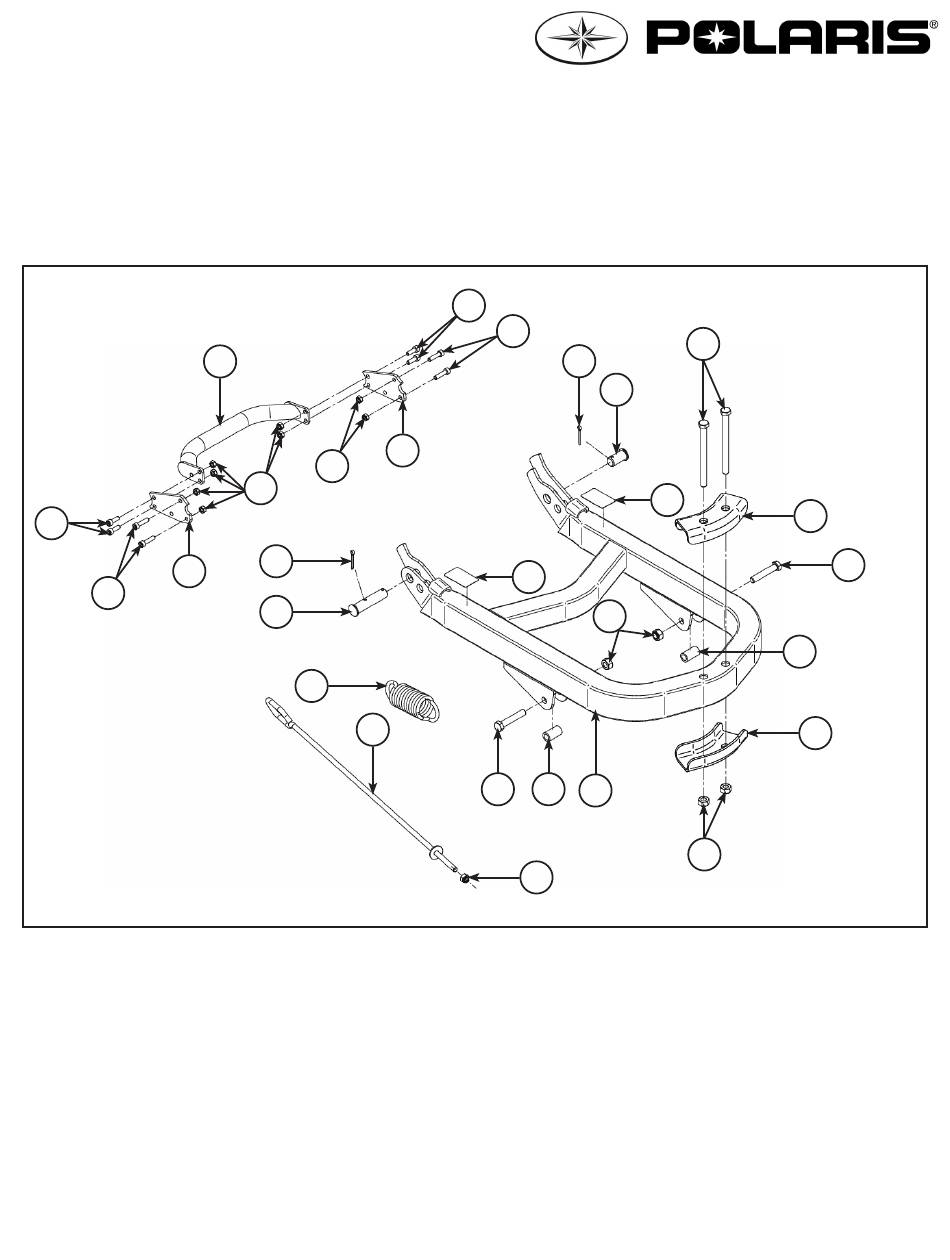

EXTENSION FOR "GLACIER
PRO ATV" PLOW FRAME KIT
P/N 2879719
Application
GLACIER PRO ATV PLOW FRAME (PN 2879630)
Before you begin, read these instructions twice and check to be sure all parts and tools are accounted for. The
following instructions contain details required to install the contents of this kit.
9
8
4
16
2
1
14
6
6
10
13
9
2
3
14
10
8
11
5
15
17
18
13
3
15
12
5
7
P/N 9924942 Rev 01 02/14
-1-
Advertisement
Table of Contents
Related Manuals for Polaris 2879719
Summary of Contents for Polaris 2879719
- Page 1 EXTENSION FOR “GLACIER PRO ATV” PLOW FRAME KIT P/N 2879719 Application GLACIER PRO ATV PLOW FRAME (PN 2879630) Before you begin, read these instructions twice and check to be sure all parts and tools are accounted for. The following instructions contain details required to install the contents of this kit.
- Page 2 5 mm Allen Key, and Long Nose Pliers APPROXIMATE ASSEMBLY TIME: 30 minutes IMPORTANT: Your Polaris accessory is exclusively designed to work with Glacier Pro ATV Plow System. Before beginning, please read these instructions and make sure that all parts and tools are at your disposal.
- Page 3 INSTALLATION INSTRUCTIONS: IMPORTANT: Polaris winch must be installed first. It is strongly suggested that your ATV front suspension setup be changed to the stiffest setting. PUSH FRAME EXTENSION: 1. Position push frame (PN 2879630) under the extension. Figure 1. Insert...
- Page 4 HOOK UP ASSEMBLY: 4. Refer to the mount plate installation guide for instructions. Hook up assembly must be assembled to extension brackets instead of push frame brackets. 5. If there is a tension spring with steel cable and eyebolt assembly in your mount plate kit, replace the original tension spring by the new spring supplied in the extension kit.
- Page 5 Hook up extension for Sportsman Non-XP mount plate kit (P/N 2879633): 6. Remove four M6-1 x 18 mm socket head cap screws and four M6-1.0 hex. Nylon nuts. Keep the two half lock plates from the hook up; they Keep Half must be reinstalled.
- Page 6 SPARE KITS REF. DESCRIPTION Hardware Winch Link Kit (2205215) (2205463) Ø16 mm x 30 mm clevis pin Ø3 x 25 mm cotter pin M10-1.5 x 50 mm hexagonal bolt M10-1.5 x 120 mm hexagonal bolt M10-1.5 hexagonal nylon nut M6-1.0 hexagonal nylon nut M8-1.25 hexagonal nylon nut M6-1 x 25 mm socket head cap screw M6-1 x 18 mm socket head cap screw...
