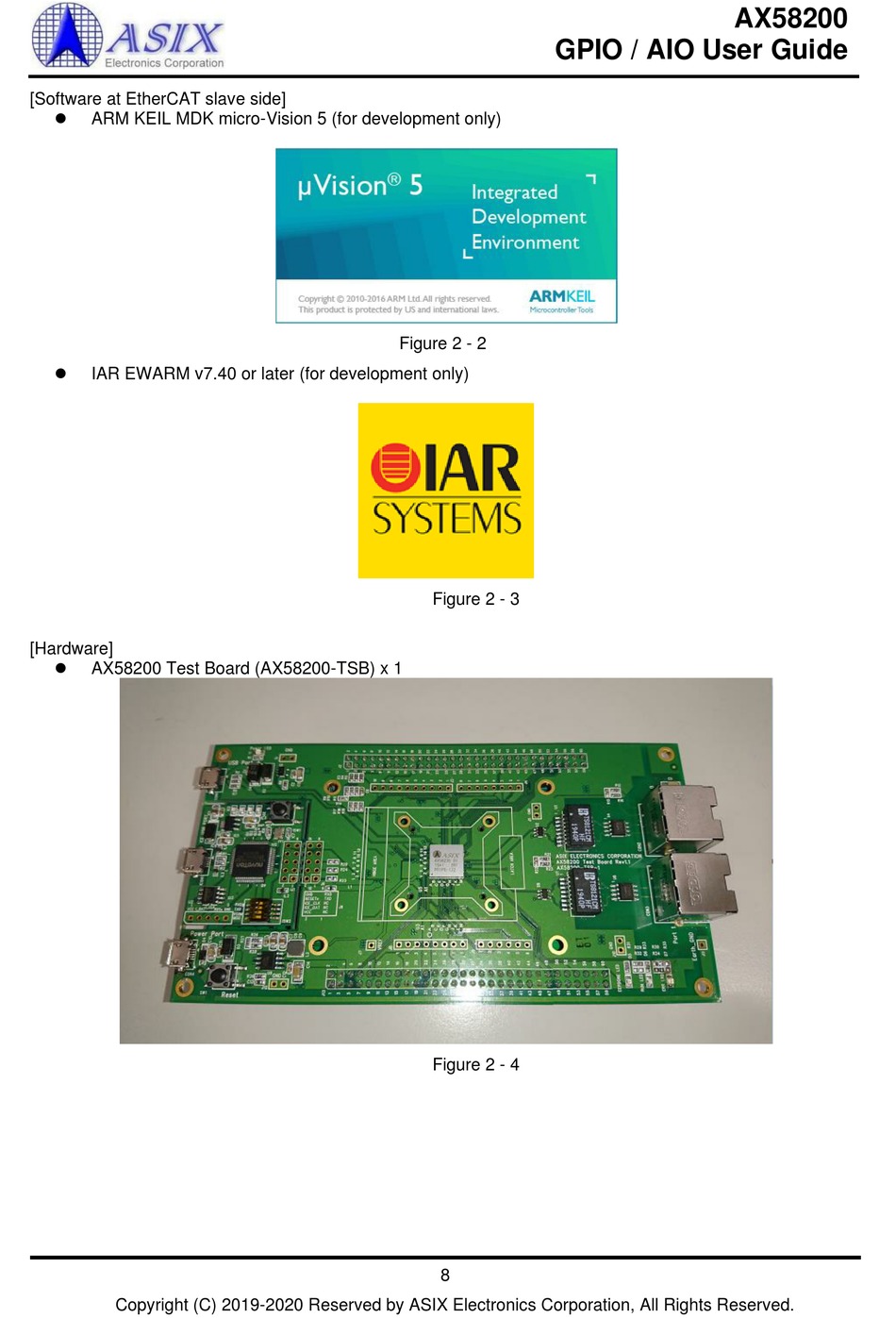

ASIX AX58200 User Manual page 8

[Software at EtherCAT slave side]
⚫
ARM KEIL MDK micro-Vision 5 (for development only)
⚫
IAR EWARM v7.40 or later (for development only)
[Hardware]
⚫
AX58200 Test Board (AX58200-TSB) x 1
Copyright (C) 2019-2020 Reserved by ASIX Electronics Corporation, All Rights Reserved.
GPIO / AIO User Guide
Reference Design User Guide
Figure 2 - 2
Figure 2 - 3
Figure 2 - 4
8
AX58200
