5-1 Mass Storage Method

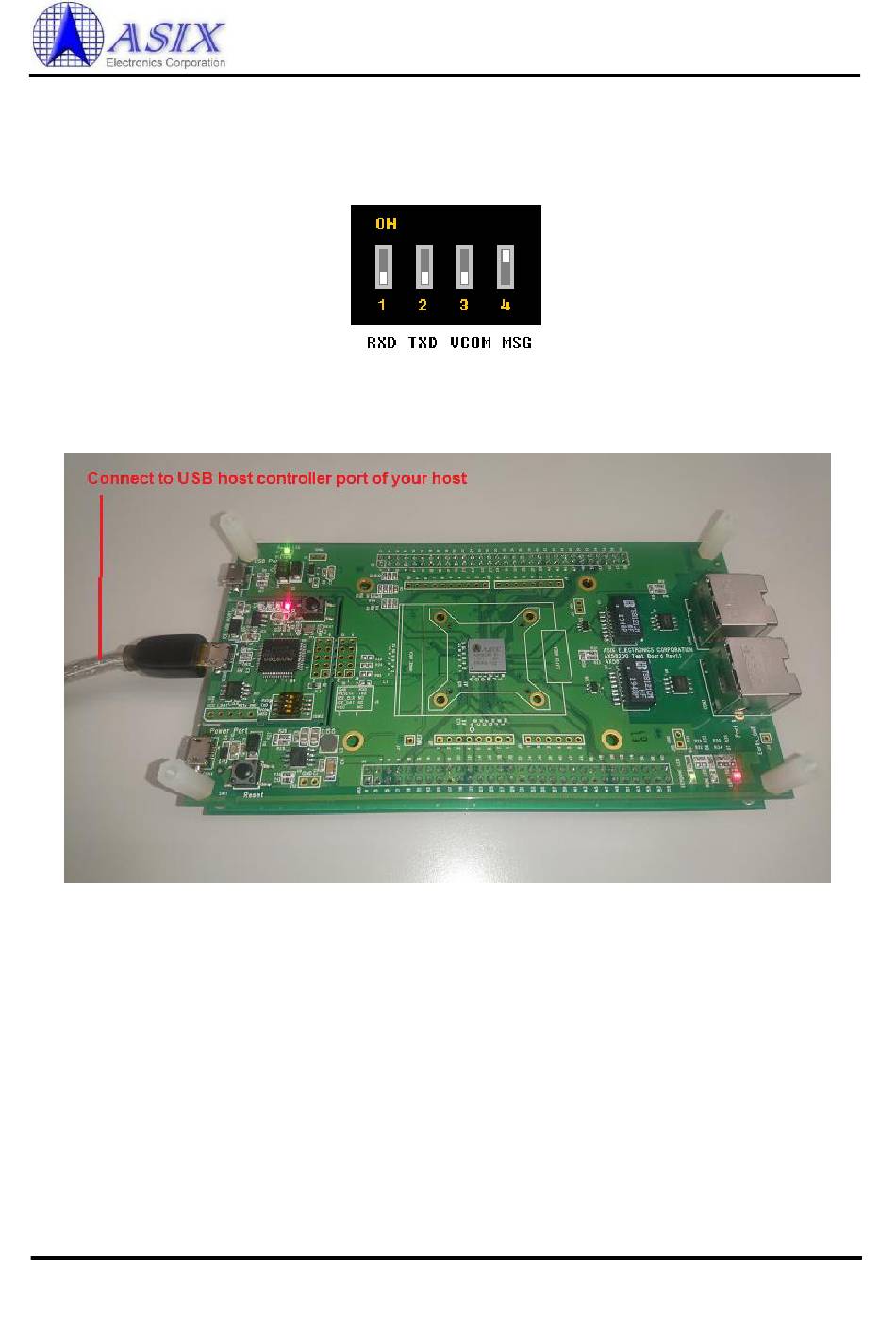

This is a simplest mode and provided by NUVOTON ICE IC. Make sure to take off the USB power cable and
modify the "DIP of ICE" to below state:
And let "Debug Port" to connect your host as following:
You will see an external disk named "NuMicro MCU" inserted.
Just copy the firmware binary file "AX58200_GpioAio_vX.X.X.bin" from the BSP directory
"YOUR_BSP_FOLDER\SampleCode\EtherCAT_GPIO_AIO_Reference_Design\Binary\" to the root
directory of this disk (for example: "F:\").
After finish copy, the AX58200 will auto-restart.
Note: If you want to check out the firmware status for judge if the download is success, please refer to
Chapter 5.5.
Copyright (C) 2019-2020 Reserved by ASIX Electronics Corporation, All Rights Reserved.
GPIO / AIO User Guide
Reference Design User Guide
Figure 5 - 2
Figure 5 - 3
