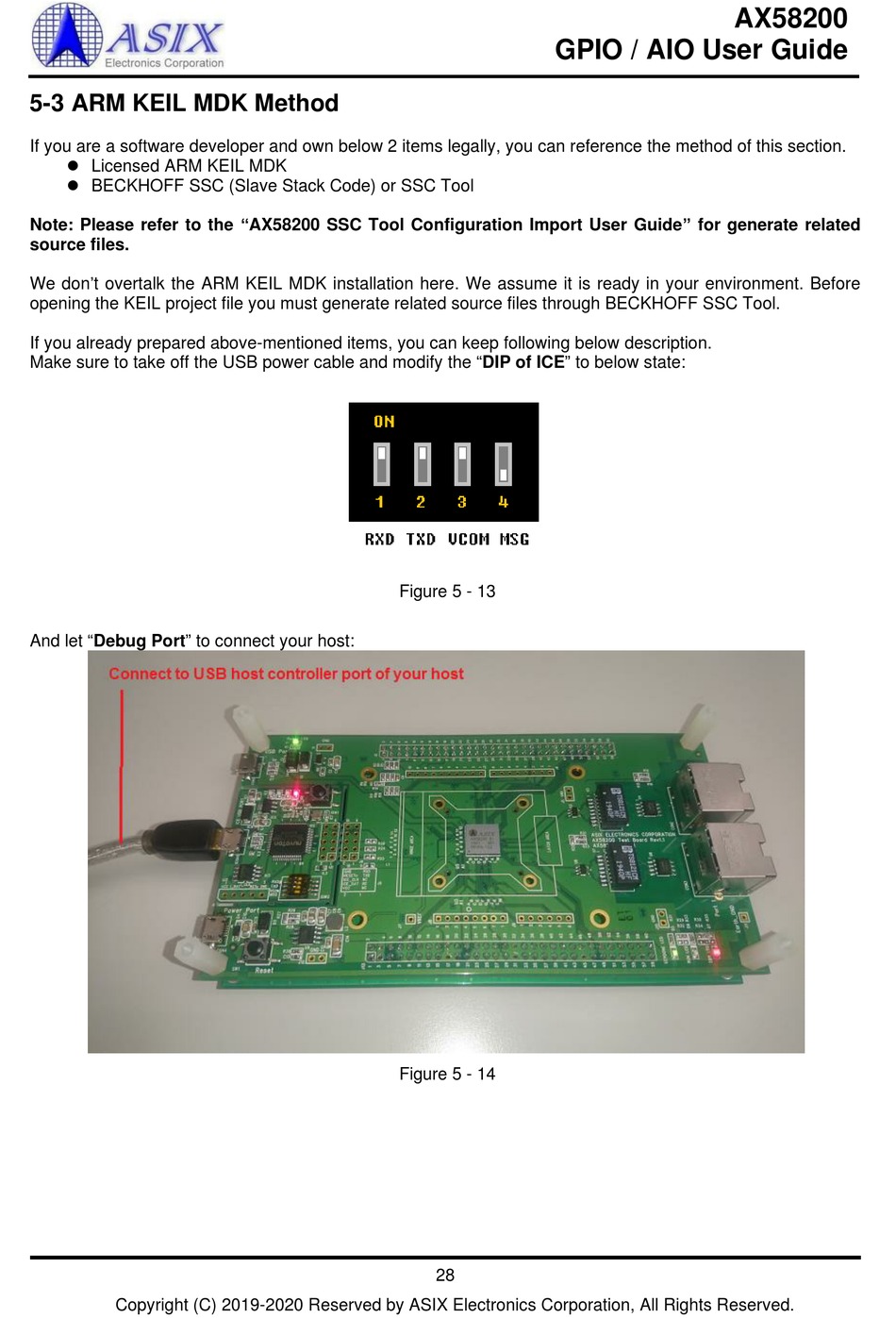

5-3 ARM KEIL MDK Method

If you are a software developer and own below 2 items legally, you can reference the method of this section.
⚫ Licensed ARM KEIL MDK
⚫ BECKHOFF SSC (Slave Stack Code) or SSC Tool
Note: Please refer to the "AX58200 SSC Tool Configuration Import User Guide" for generate related
source files.
We don't overtalk the ARM KEIL MDK installation here. We assume it is ready in your environment. Before
opening the KEIL project file you must generate related source files through BECKHOFF SSC Tool.
If you already prepared above-mentioned items, you can keep following below description.
Make sure to take off the USB power cable and modify the "DIP of ICE" to below state:
And let "Debug Port" to connect your host:
Copyright (C) 2019-2020 Reserved by ASIX Electronics Corporation, All Rights Reserved.
GPIO / AIO User Guide
Reference Design User Guide
Figure 5 - 13
Figure 5 - 14
