5-2 NUVOTON ICP Tool Method

Please install NUVOTON ICP (In Circuit Programming) Tool first. You can download the tool through the link
NUVOTON_ICP_TOOL, or install it from AX58200 BSP\Tool folder directly.

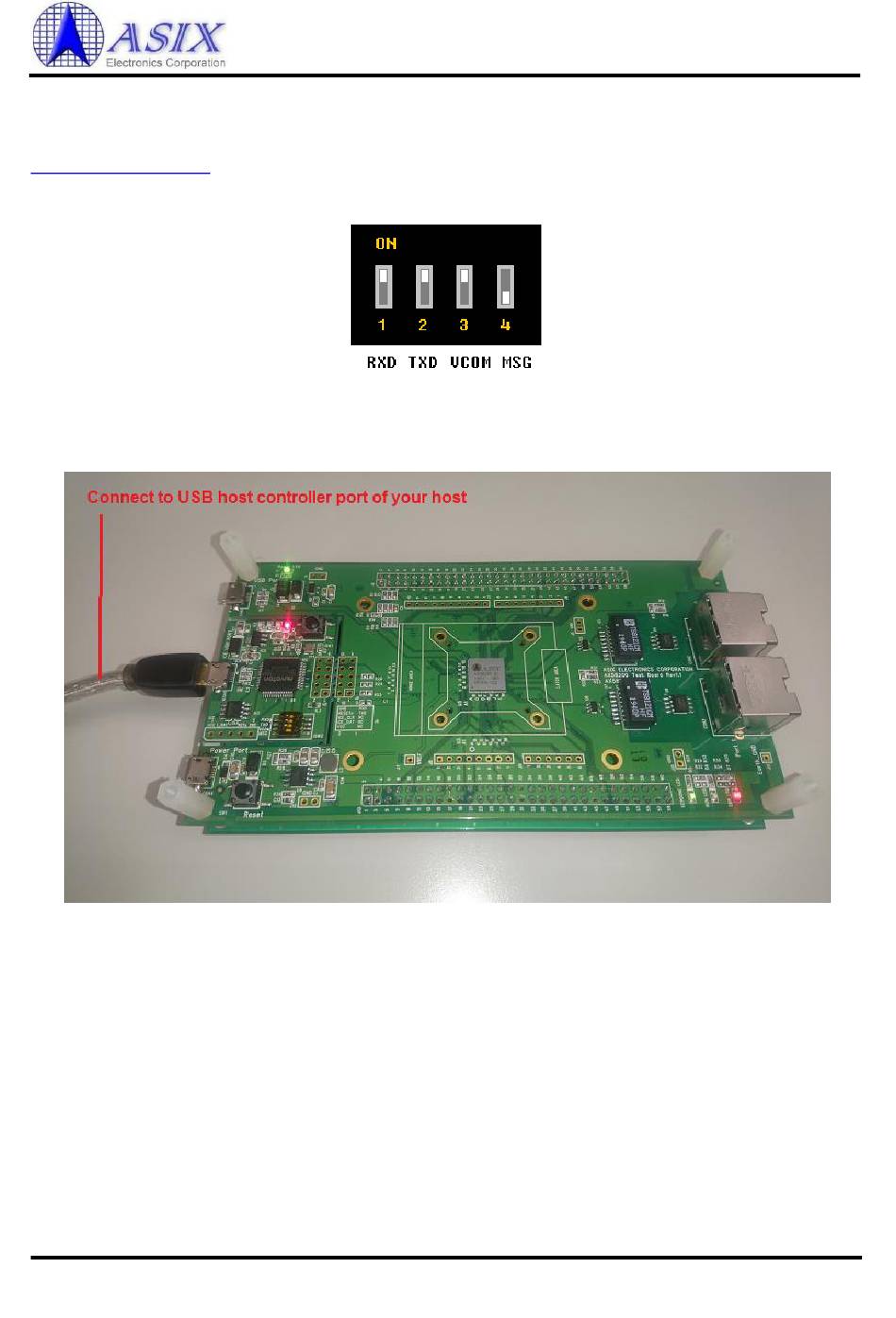

Make sure to take off the USB power cable and modify the "DIP of ICE" to below state:
And let "Debug Port" to connect your host as following:
Copyright (C) 2019-2020 Reserved by ASIX Electronics Corporation, All Rights Reserved.
GPIO / AIO User Guide
Reference Design User Guide
Figure 5 - 4
Figure 5 - 5
23
AX58200
