ASIX AX88796ALF Manual

3-in-1 local bus fast ethernet controller
Table of Contents

Advertisement

Quick Links

10/100BASE 3-in-1 Local CPU Bus Fast Ethernet Controller
Features
Highly integrated with embedded 10/100Mbps
MAC, PHY and Transceiver
Embedded 8K * 16 bit SRAM
Compliant
100BASE-TX specification
NE2000 register level compatible instruction
Single chip local CPU bus 10/100Mbps Fast
Ethernet MAC Controller
Support both 8 bit and 16 bit local CPU
interfaces include MCS-51 series, 80186 series,
MC68K series CPU and ISA bus
Support both 10Mbps and 100Mbps data rate
Support
both
operation
Provides an extra MII port for supporting other
media. For example, Home LAN application
Product description
The AX88796A Fast Ethernet Controller is a high performance and highly integrated local CPU bus Ethernet Controller
with embedded 10/100Mbps PHY/Transceiver and 8K*16 bit SRAM. The AX88796A supports both 8 bit and 16 bit local
CPU interfaces include MCS-51 series, 80186 series, and MC68K series CPU and ISA bus. The AX88796A implements
both 10Mbps and 100Mbps Ethernet function based on IEEE802.3 / IEEE802.3u LAN standard. The AX88796A also
provides an extra IEEE802.3u compliant media-independent interface (MII) to support other media applications. Using
MII interface, Home LAN PHY type media can be supported.
As well as, the chip also provides optional Standard Print Port (parallel port interface), can be used for printer server device
or treat as simple general I/O port.

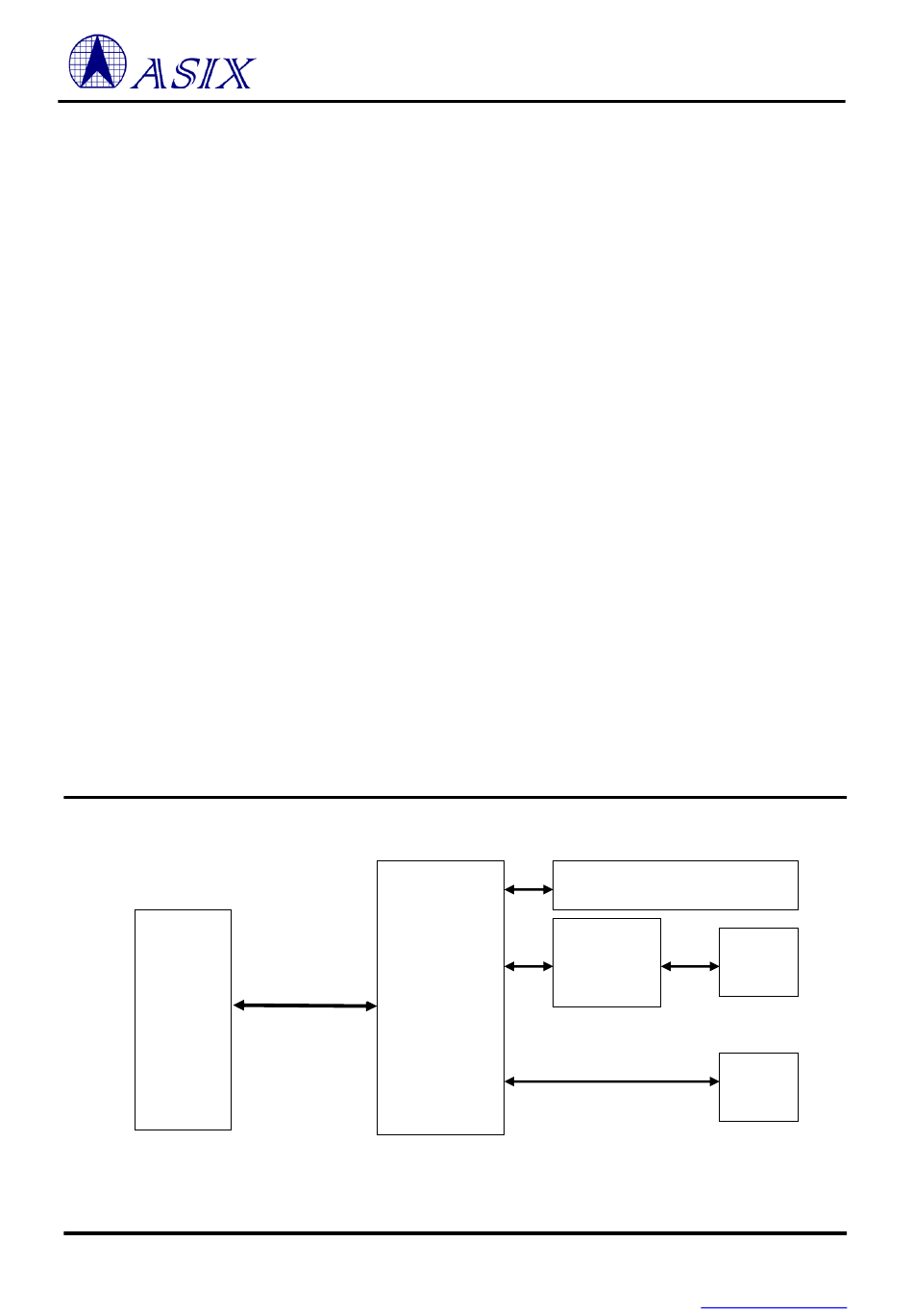

System Block Diagram
51 series
/
186 bus
series
/
68K bus
series
/
ISA bus
ASIX ELECTRONICS CORPORATION
4F, NO.8, Hsin Ann Rd., Hsinchu Science Park, Hsin-Chu City, Taiwan, R.O.C. 300
TEL: 886-3-579-9500
3-in-1 Local Bus Fast Ethernet Controller
with Embedded SRAM
with
IEEE
802.3/802.3u
full-duplex
or
half-duplex
8bit / 16bit
non-PCI bus
AX88796A
10/100 Mbps
PHY/TxRx
FAX: 886-3-579-9558
Document No.: AX88796A/V1.12/01/09/13
Support EEPROM interface to store MAC
address
External and internal loop-back capability
Support Standard Print Port for printer server
application
Support up to 3/1 General Purpose In/Out pins
128-pin LQFP low profile package
0.25 Micron low power CMOS process. 25MHz
Operation, Pure 3.3V operation with 5V I/O
tolerance.
RoHS compliant package
*IEEE is a registered trademark of the Institute of
Electrical and Electronic Engineers, Inc.
*All other trademarks and registered trademark are
the property of their respective holders.
Optional
Home LAN
PHY
With
1
AX88796ALF
Optional Print Port
Or General I/O Ports
RJ11
RJ45
Release Date: 01/09/2013
http://www.asix.com.tw
