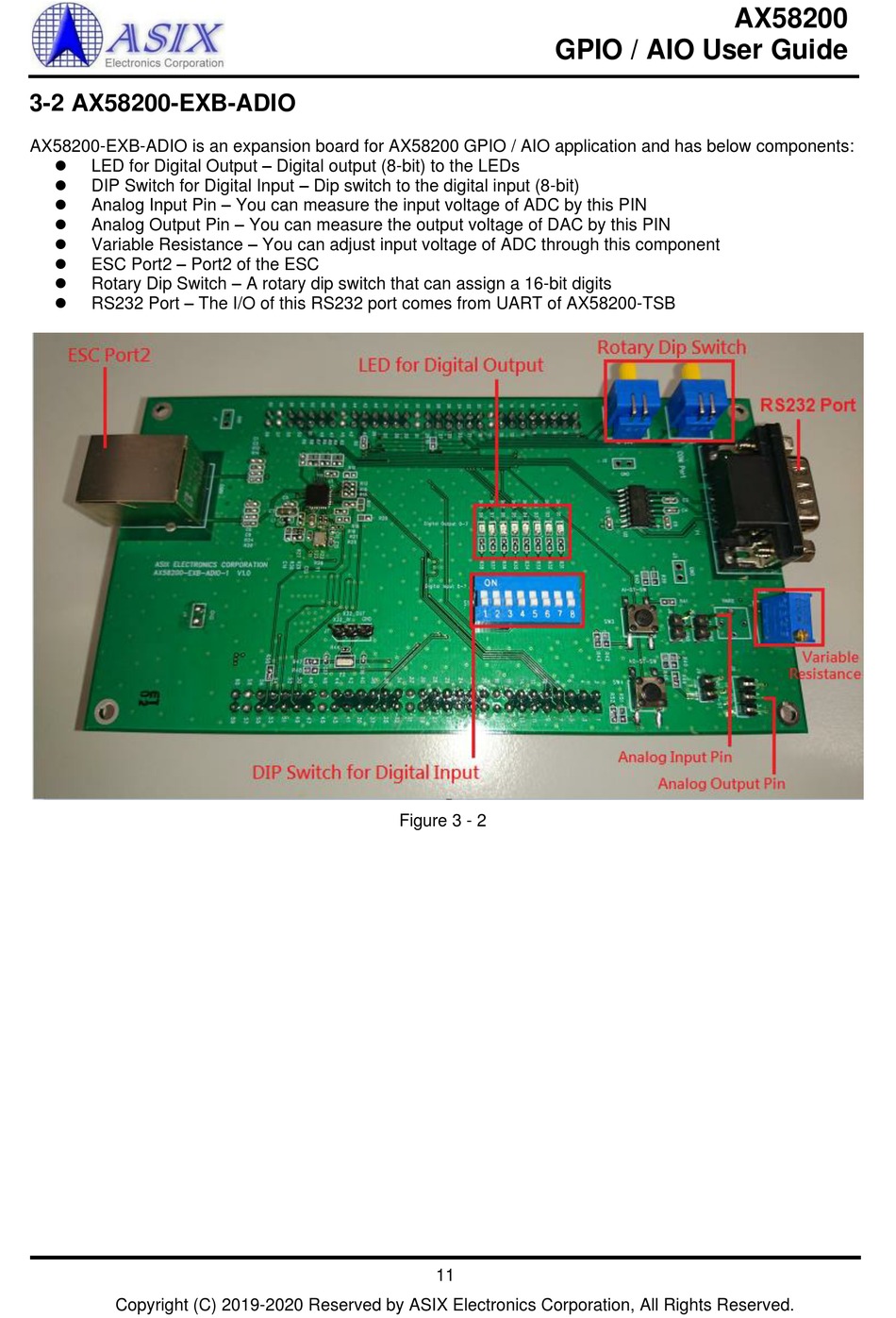

3-2 AX58200-EXB-ADIO

AX58200-EXB-ADIO is an expansion board for AX58200 GPIO / AIO application and has below components:
⚫ LED for Digital Output – Digital output (8-bit) to the LEDs
⚫ DIP Switch for Digital Input – Dip switch to the digital input (8-bit)
⚫ Analog Input Pin – You can measure the input voltage of ADC by this PIN
⚫ Analog Output Pin – You can measure the output voltage of DAC by this PIN
⚫ Variable Resistance – You can adjust input voltage of ADC through this component
⚫ ESC Port2 – Port2 of the ESC
Rotary Dip Switch – A rotary dip switch that can assign a 16-bit digits
⚫
⚫ RS232 Port – The I/O of this RS232 port comes from UART of AX58200-TSB
Copyright (C) 2019-2020 Reserved by ASIX Electronics Corporation, All Rights Reserved.
GPIO / AIO User Guide
Reference Design User Guide
Figure 3 - 2
