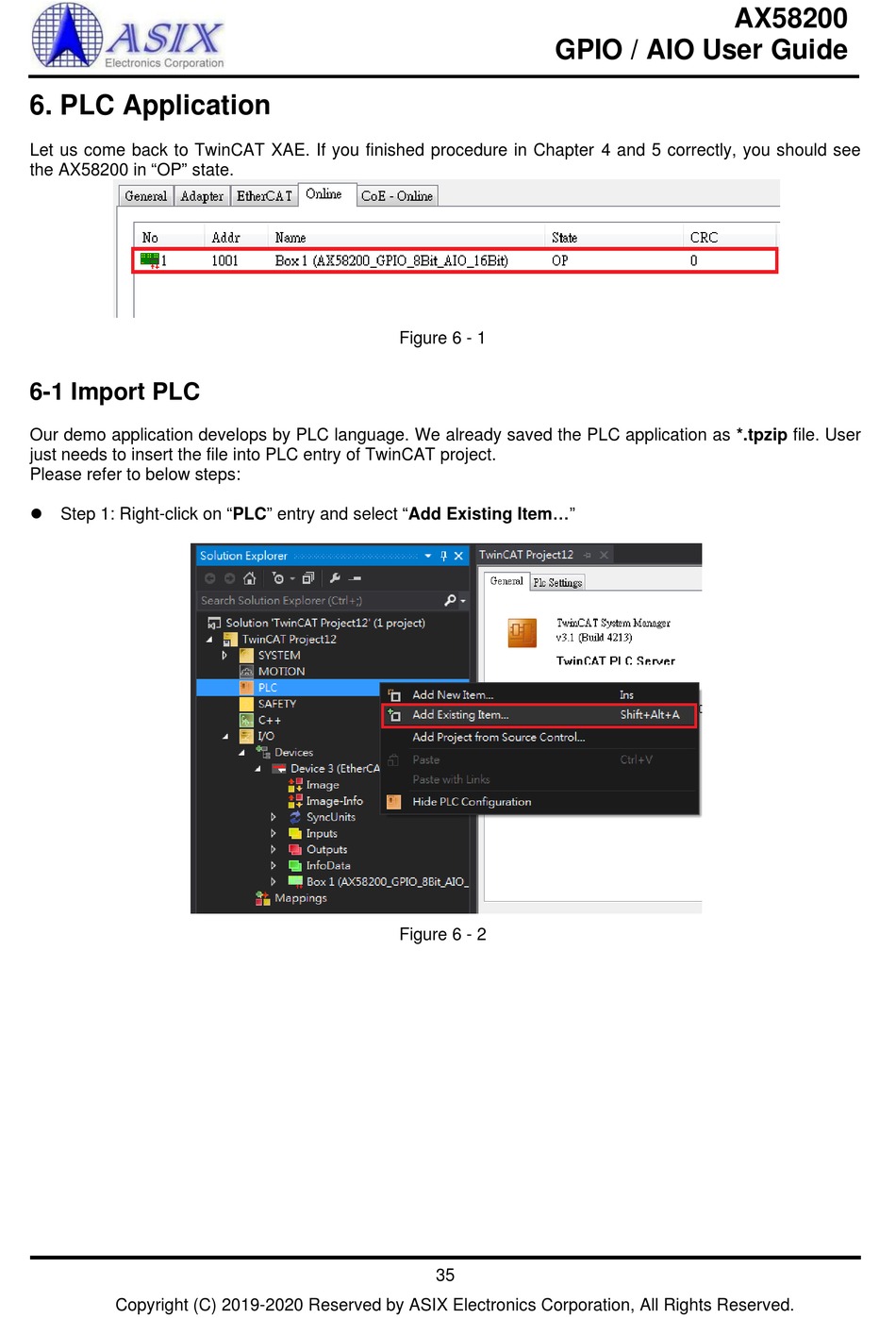

6. PLC Application

Let us come back to TwinCAT XAE. If you finished procedure in Chapter 4 and 5 correctly, you should see
the AX58200 in "OP" state.

6-1 Import PLC

Our demo application develops by PLC language. We already saved the PLC application as *.tpzip file. User
just needs to insert the file into PLC entry of TwinCAT project.
Please refer to below steps:
⚫ Step 1: Right-click on "PLC" entry and select "Add Existing Item..."
Copyright (C) 2019-2020 Reserved by ASIX Electronics Corporation, All Rights Reserved.
GPIO / AIO User Guide
Reference Design User Guide
Figure 6 - 1
Figure 6 - 2
