Relay Test 5/30– special function

Each Active Channel Relay can be tested by this function . When function is started, the

corresponding Channel relay switches On and Of every 5 sec . within 30 seconds .

Start of special test function Relay Test 5/30 can be done by the following menu sequence:

EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X –

Relay Test 5/30 sec – {Enter – STOP/START }

EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X – Relay Test

5/30 sec – {Enter – STOP/START }

NB: When this function is started nothing new appears on the screen(-s). Only the switching

sound of the corresponding relay is heard.

DEVIreg™ Multi controller has Alarm relay with both types of contacts – NO and NC . For

Alarm used controller contacts which have number 8 – NC8, C8 and NO8 . Connection

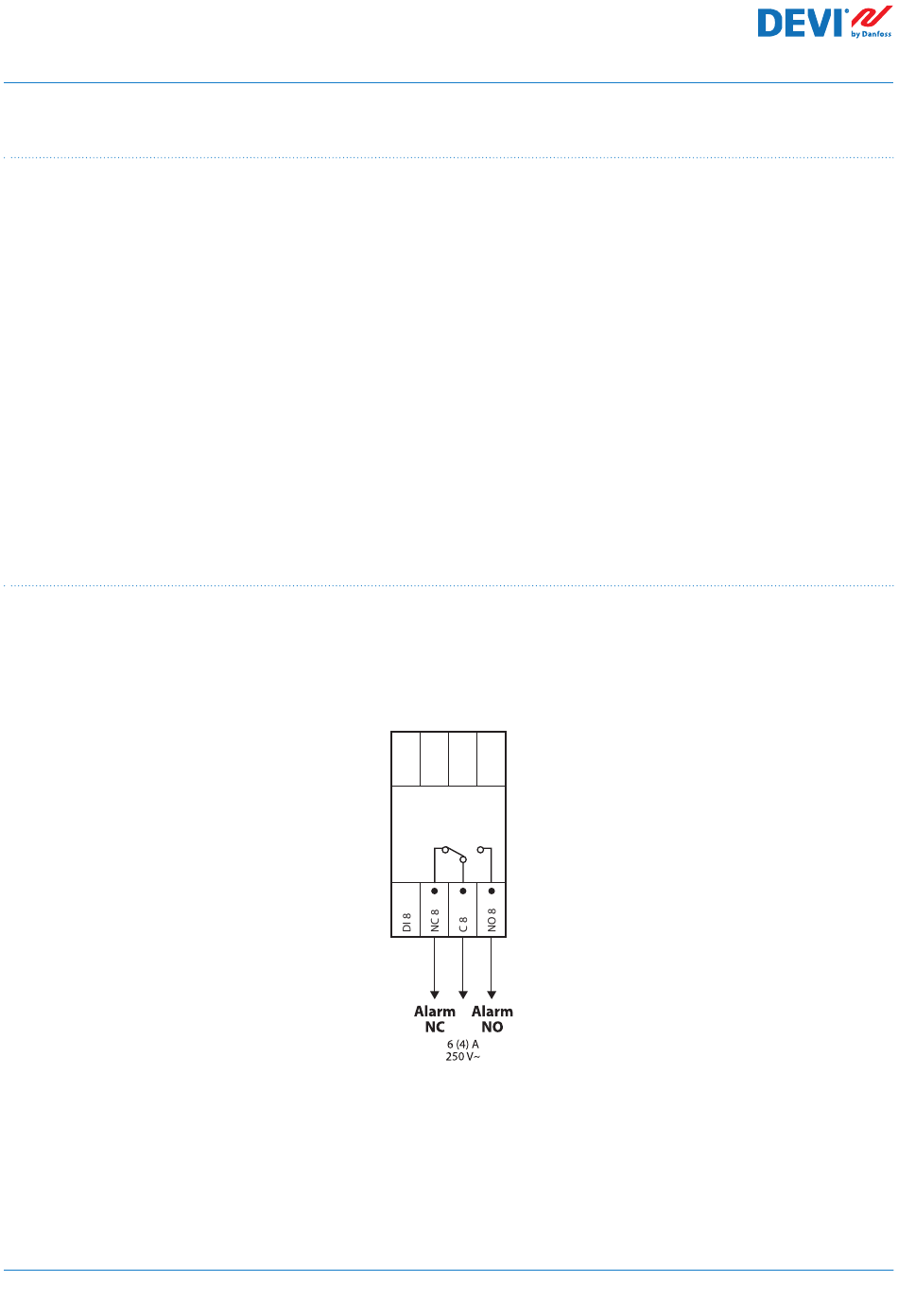

diagram is shown on the picture below:

DEVIreg™ Multi

Alarm
