Setting Temperature and Hysteresis can be done by the following menu sequence:
EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X –
Temp & Hysteresis – #X Set temperature – { Down – #X Set +-Hysteresis }
EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X – Temp &
Hysteresis – #X Set temperature – { Down – #X Set +-Hysteresis }
Temperatures Alarm . 1S mode has Temp Alarm settings with 3 parameters – alarm Enabled
or Disabled, alarm minimal temperature and alarm maximum temperature .
Alarm temperatures have unchangeable hysteresis 0,2°C .
Default – Temp Alarm is Disabled, Alarm min Temp = 0°C, Alarm max Temp = 60°C .
NB: It is the full responsibility of the installer/user to set correct alarm values that correspond
to the sensor type and for the specific application to avoid overheating of the cable, building
materials and so on.

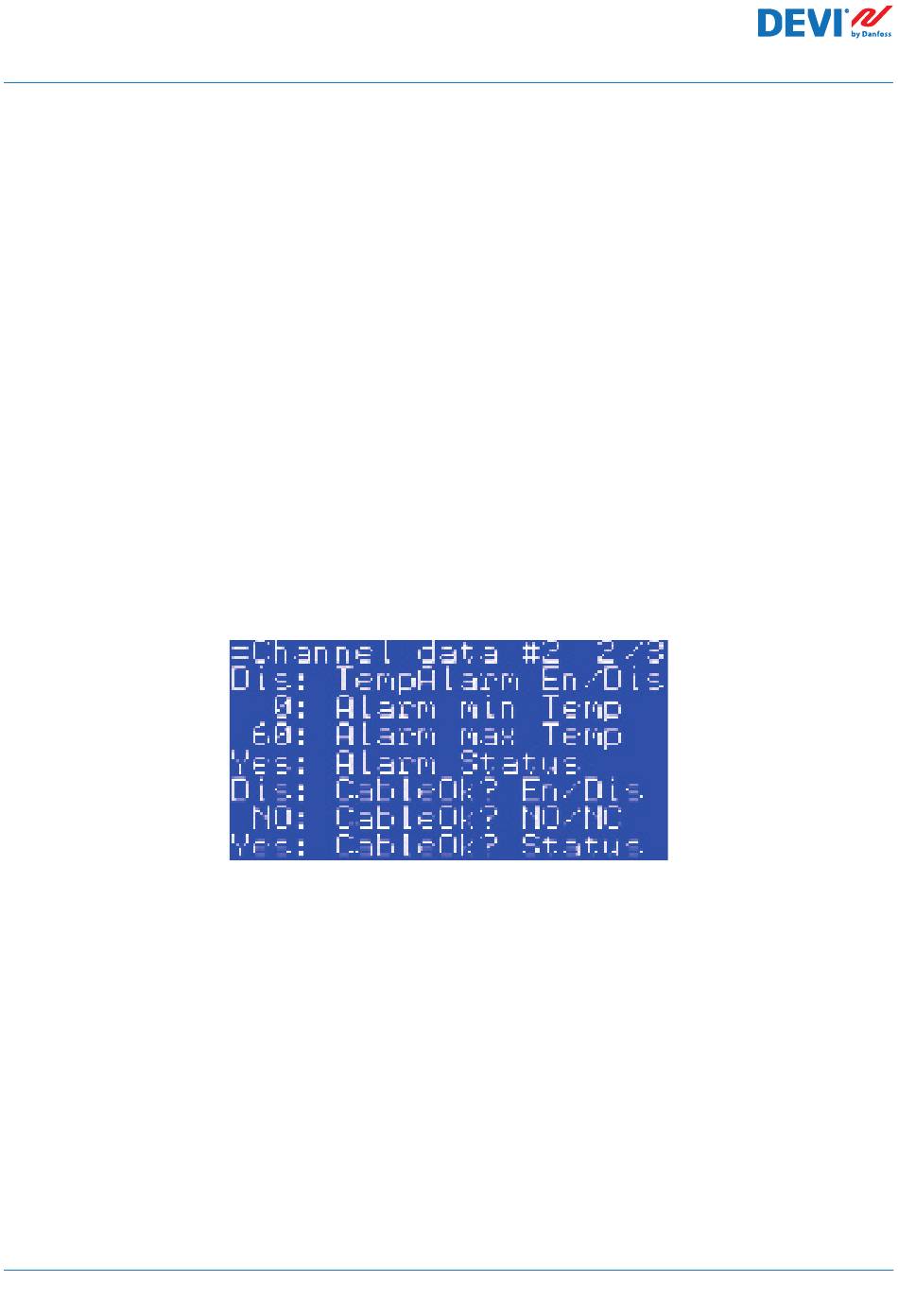

Example of data for Temp Alarm settings and temperature Alarm Status is presented on
the screen below (lines 2-4):
Data on the picture above means the following: Temp Alarm is disabled for Channel #2 (Dis)
and Software does not control alarm temperature, alarm range set up with values from 0 °C to
60 °C, actual temperature of the sensor out of the range – Alarm Status = Yes .
Setting Alarm Temperatures and Alarm Enabling can be done by the following menu sequence:
EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X –
Alarm Temps & En/Dis – ( #X Alarm Temp En/Dis – Down – #X Alarm min Temp –
Down – #X Alarm max Temp }
EN: Main Screen – Enter to Main Menu – Channels settings – Channel #X – Alarm
Temps & En/Dis – ( #X Alarm Temp En/Dis – Down – #X Alarm min Temp – Down
– #X Alarm max Temp }
