Device memory, battery-buffered

The device is equipped with an internal data memory, which is battery buffered to preserve long-term data. To
prevent it from being discharged, this backup battery (e.g. Varta CR 2032) is not built in when the device is
delivered, but included separately in the delivery.
a
Caution
Before the initial commissioning of the device, please insert the backup battery
first (as described in the following), as otherwise all storage data would be lost in
case of a power failure.

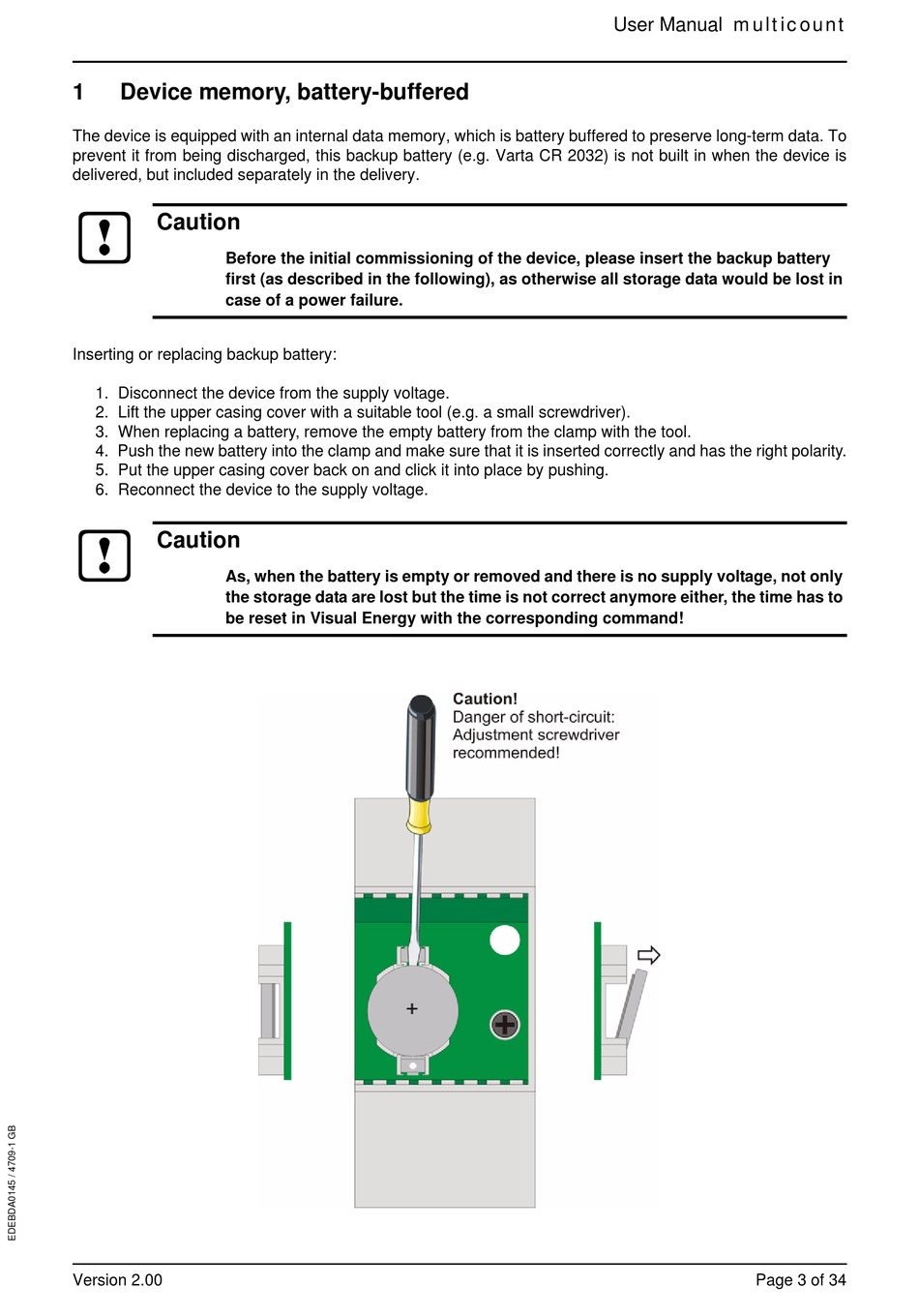

Inserting or replacing backup battery:
1. Disconnect the device from the supply voltage.
2. Lift the upper casing cover with a suitable tool (e.g. a small screwdriver).
3. When replacing a battery, remove the empty battery from the clamp with the tool.
4. Push the new battery into the clamp and make sure that it is inserted correctly and has the right polarity.
5. Put the upper casing cover back on and click it into place by pushing.
6. Reconnect the device to the supply voltage.
a
Caution
As, when the battery is empty or removed and there is no supply voltage, not only
the storage data are lost but the time is not correct anymore either, the time has to
be reset in Visual Energy with the corresponding command!
