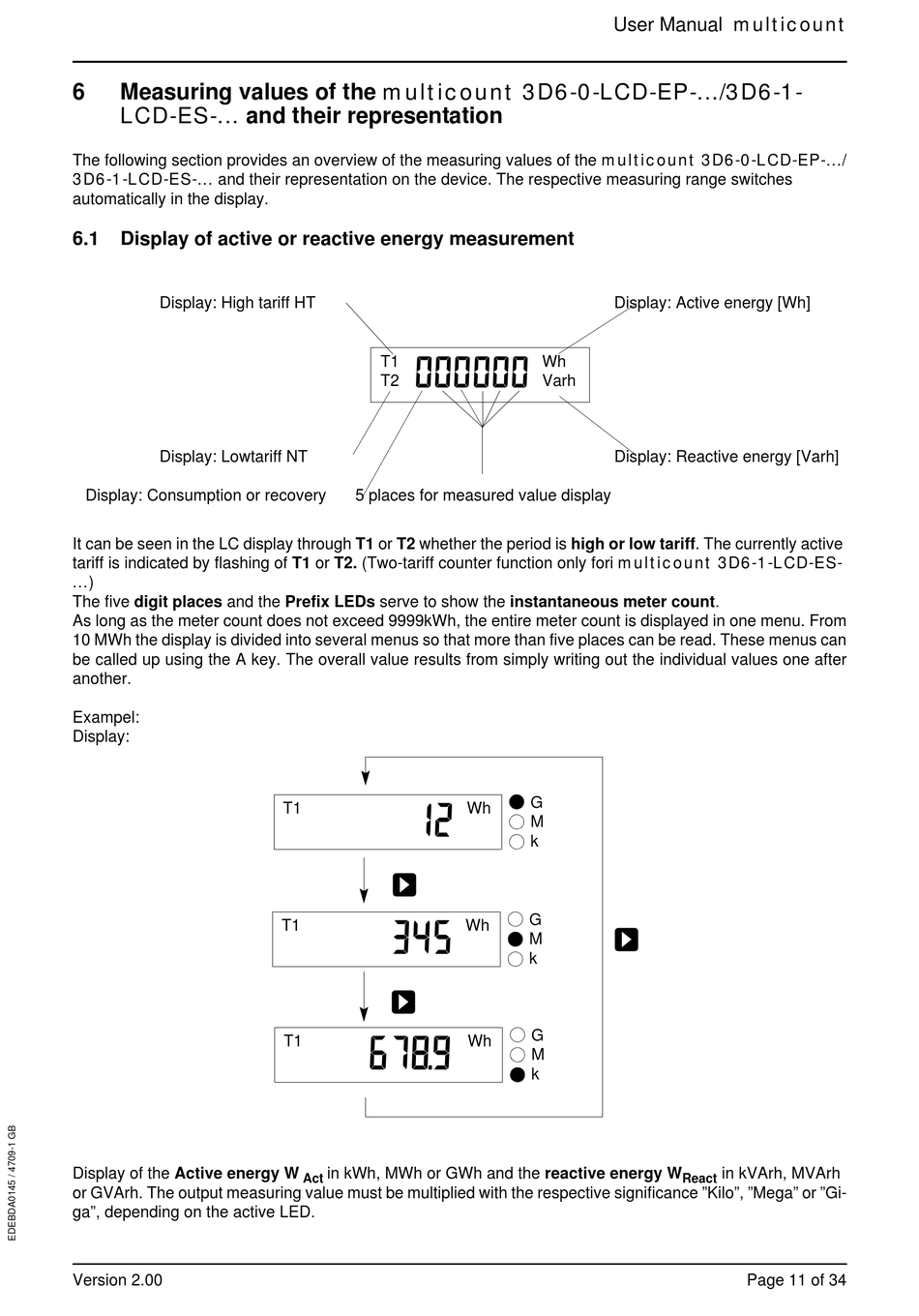

Measuring values of the multicount 3D6-0-LCD-EP-.../3D6-1-
6
LCD-ES-... and their representation
The following section provides an overview of the measuring values of the multicount 3D6-0-LCD-EP-.../
3D6-1-LCD-ES-... and their representation on the device. The respective measuring range switches
automatically in the display.
6.1

Display of active or reactive energy measurement

Display: High tariff HT
Display: Lowtariff NT
Display: Consumption or recovery
It can be seen in the LC display through T1 or T2 whether the period is high or low tariff. The currently active
tariff is indicated by flashing of T1 or T2. (Two-tariff counter function only fori multicount 3D6-1-LCD-ES-
...)
The five digit places and the Prefix LEDs serve to show the instantaneous meter count.
As long as the meter count does not exceed 9999kWh, the entire meter count is displayed in one menu. From
10 MWh the display is divided into several menus so that more than five places can be read. These menus can
be called up using the A key. The overall value results from simply writing out the individual values one after
another.
Exampel:
Display:
Display of the Active energy W
or GVArh. The output measuring value must be multiplied with the respective significance "Kilo", "Mega" or "Gi-
ga", depending on the active LED.
Version 2.00
T1
000000
T2
5 places for measured value display
T1
12
X
T1
345
X
T1
g78. 9
in kWh, MWh or GWh and the reactive energy W
Act
User Manual multicount
Display: Active energy [Wh]
Wh
Varh
Display: Reactive energy [Varh]
G
Wh
M
k
G
Wh
X
M
k
G
Wh
M
k
in kVArh, MVArh
React
