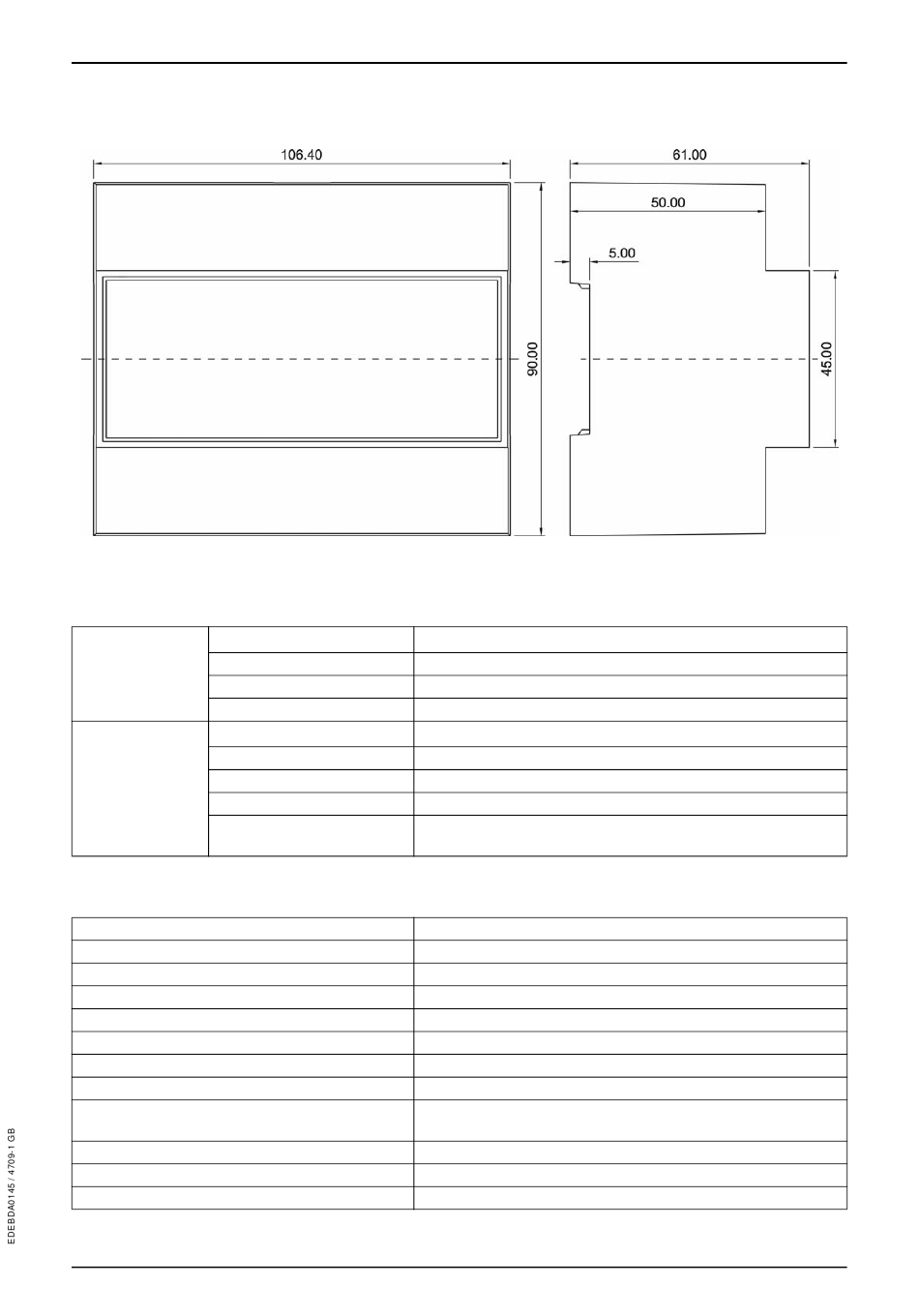

8.11 Dimensioned drawing

8.12 Environmental conditions / Electrical safety

Ambient conditions Standards
Operating temperature
Humidity
Storage temperature
Electrical safety Standards and amendments
Protection class
Overvoltage category
Mode of protection
Electromagnetic
Compatibility

8.13 Default settings after reset

Measurement voltage, primary
Measurement voltage, secondary
Measuring current secondary
Measuring current primary
Summertime (multicount 3D6-1-LCD-ES-... only)
Frequency correction
Current average value over
Tariff switching ( multicount 3D6-1-LCD-ES-... only)
Default setting for tariff switching over time by
internal clock (multicount 3D6-1-LCD-ES-... only)
All measurements
Energy Memory
Measuring period (multicount 3D6-1-LCD-ES-... only) 15 min.
Version 2.00
DIN EN 60721-3-3/A2: 1997-07; 3K5+3Z11; (IEC721-3-3; 3K5+3Z11)
-5°C ... +55°C
5% ... 95%
-25°C ... +70°C
DIN EN 61010-1 / Edition 2002; (IEC1010-1/A2)
I in accordance with DIN EN 61010 / Edition 2002
CAT III: U up to 400V
PH-PH
IP20 in accordance with DIN EN 40050 Part 9: 1993-05
DIN EN 61000-6-3: 2005-06; (IEC 61000-6-3)
DIN EN 61000-6-2: 2000-03; (IEC 61000-6-2)
400V
400V
5A
5A
from March to October
automatic
10 minutes
via digital input, active tariff T1 (HT)
Start time: 12:00:00 AM for LT start
End time: 12:00:00 AM for LT end
Restart
Deleting all energy memories
