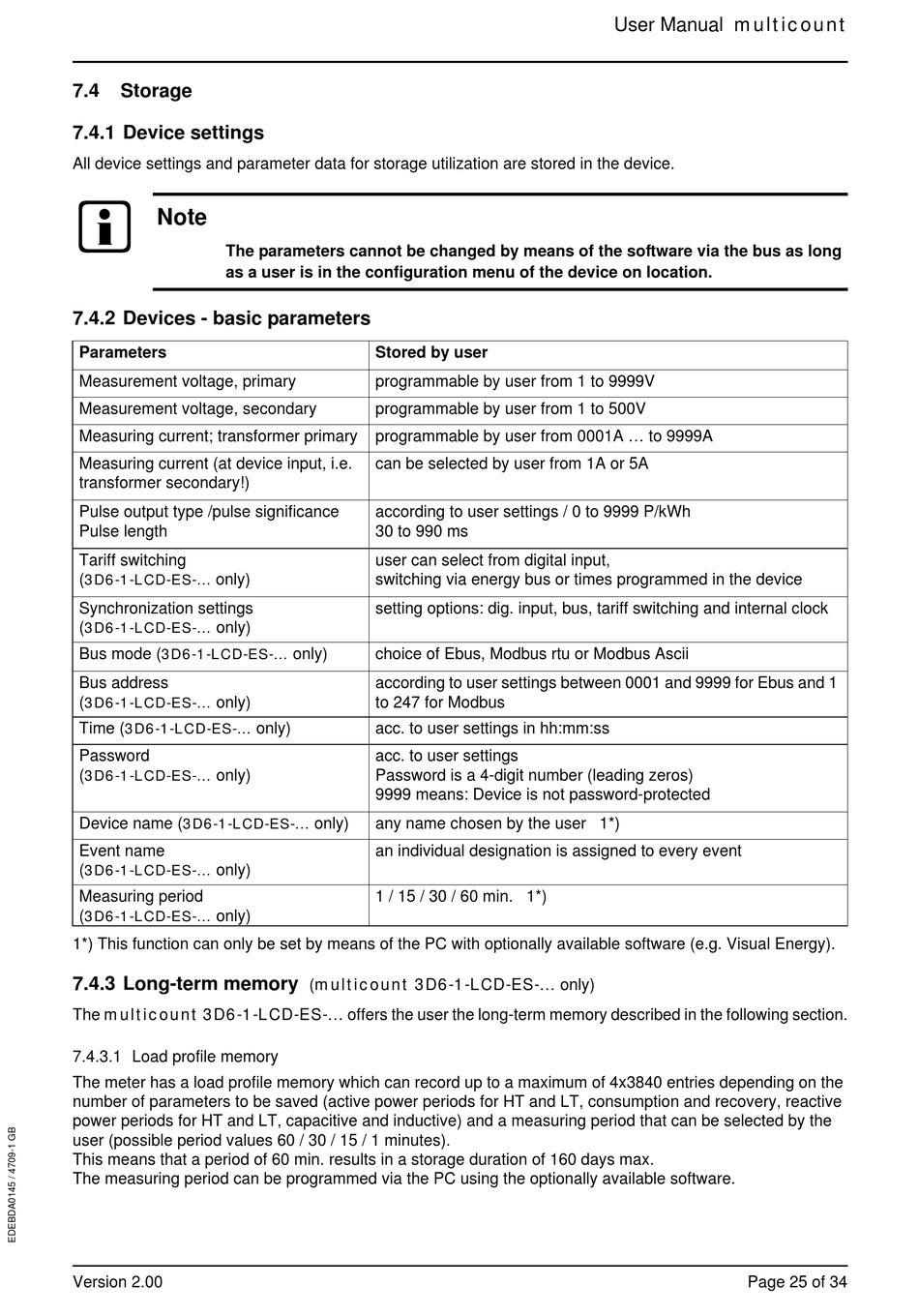

Storage

7.4.1 Device settings

All device settings and parameter data for storage utilization are stored in the device.
b
Note
The parameters cannot be changed by means of the software via the bus as long
as a user is in the configuration menu of the device on location.

7.4.2 Devices - basic parameters

Parameters
Measurement voltage, primary
Measurement voltage, secondary
Measuring current; transformer primary
Measuring current (at device input, i.e.
transformer secondary!)
Pulse output type /pulse significance
Pulse length
Tariff switching
3D6-1-LCD-ES-...
( only)
Synchronization settings
3D6-1-LCD-ES-...
( only)
3D6-1-LCD-ES-...
Bus mode (
Bus address
3D6-1-LCD-ES-...
( only)
3D6-1-LCD-ES-...
Time (
Password
3D6-1-LCD-ES-...
( only)
3D6-1-LCD-ES-...
Device name (
Event name
3D6-1-LCD-ES-...
( only)
Measuring period
3D6-1-LCD-ES-...
( only)
1*) This function can only be set by means of the PC with optionally available software (e.g. Visual Energy).
7.4.3 Long-term memory
The multicount 3D6-1-LCD-ES-... offers the user the long-term memory described in the following section.

7.4.3.1 Load profile memory

The meter has a load profile memory which can record up to a maximum of 4x3840 entries depending on the
number of parameters to be saved (active power periods for HT and LT, consumption and recovery, reactive
power periods for HT and LT, capacitive and inductive) and a measuring period that can be selected by the
user (possible period values 60 / 30 / 15 / 1 minutes).
This means that a period of 60 min. results in a storage duration of 160 days max.
The measuring period can be programmed via the PC using the optionally available software.
Version 2.00
Stored by user
programmable by user from 1 to 9999V
programmable by user from 1 to 500V
programmable by user from 0001A ... to 9999A
can be selected by user from 1A or 5A
according to user settings / 0 to 9999 P/kWh
30 to 990 ms
user can select from digital input,
switching via energy bus or times programmed in the device
setting options: dig. input, bus, tariff switching and internal clock
only) choice of Ebus, Modbus rtu or Modbus Ascii
according to user settings between 0001 and 9999 for Ebus and 1
to 247 for Modbus
only) acc. to user settings in hh:mm:ss
acc. to user settings
Password is a 4-digit number (leading zeros)
9999 means: Device is not password-protected
only) any name chosen by the user 1*)
an individual designation is assigned to every event
1 / 15 / 30 / 60 min. 1*)
(multicount 3D6-1-LCD-ES-... only)
