Summers CoulterChisel CC2815 Operator's Manual page 84

1. Install danger, warning, and caution decals.
– Part numbers can be found on lower right hand corner of each decal. Match this number with
number on decal location drawing on Page 1-6.
– The drawing gives approximate locations of decals. Decals must be clearly visible.
– Order replacement decals if any are damaged.
2. Install reflectors.
– Amber reflectors are part # 8Z0800, these should be placed on front corners and sides of
machine in transport position.
– Red-orange reflectors are part # 8Z0805, these should be placed on outside back of machine
in transport position.
– Red reflectors are part # 8Z0810, these should be placed on outside back of machine in
transport position.
3. Install Safety Light Kit, see Page 6-26 for mounting layout.
8Z0344
8Z0087
8Z0346
8Z0276
8Z2370 - 16'-20' COULTERCHISEL
8Z2375 - 24'-28' COULTERCHISEL
8Z2380 - 32'-40' COULTERCHISEL
8Z2350 - 16'-20' DISKCHISEL
8Z2355 - 24'-28' DISKCHISEL
8Z2360 - 32'-40' DISKCHISEL

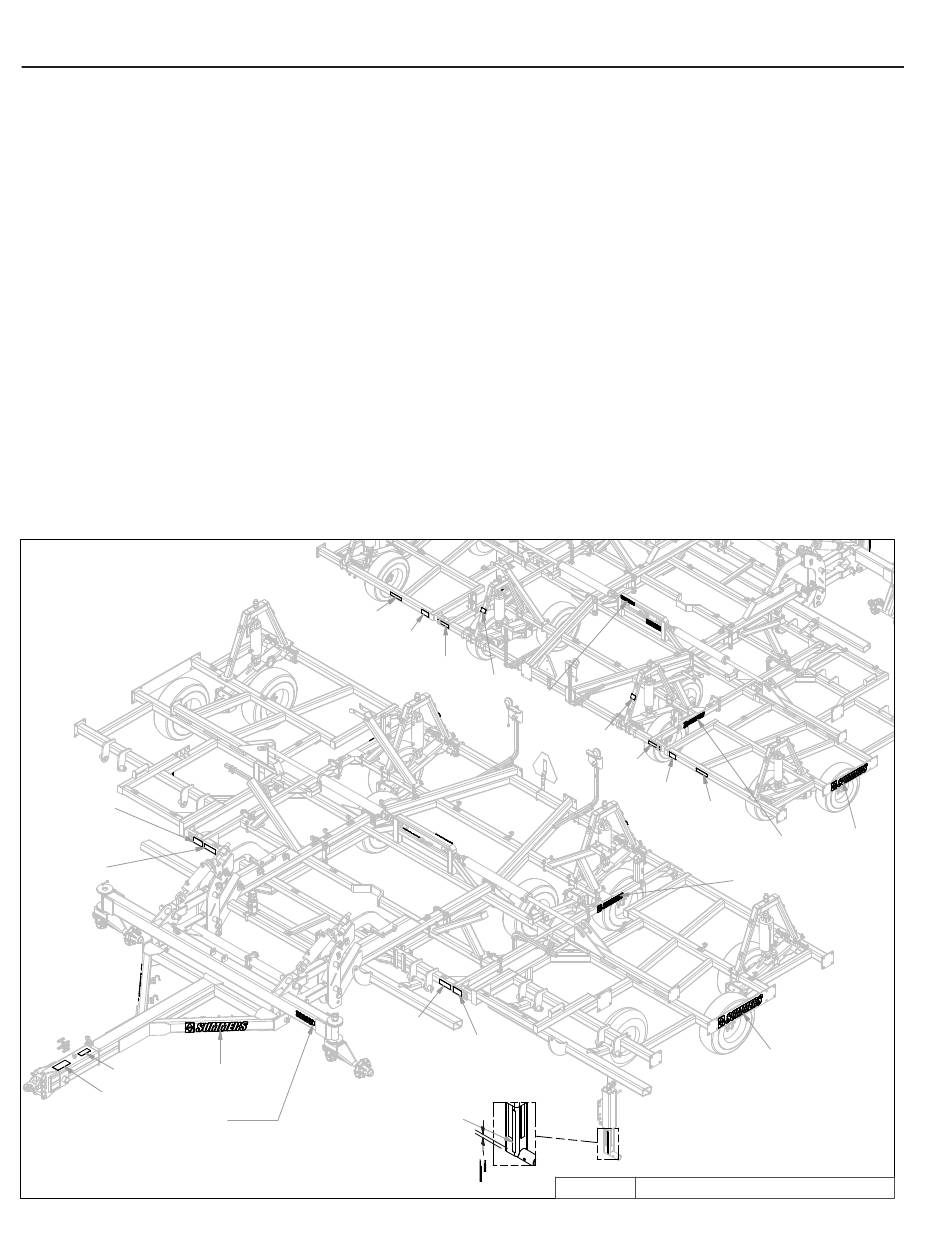

SECTION 2 – WARNING DECALS (ALL SIZES)
8Z0810
8Z0204
8Z0344
8Z0805
8Z0342
8Z0101
8Z0087
8Z0344
8Z0348
DETAIL A
2-72
8Z0342
8Z0805
8Z0344
8Z0810
8Z0202
A
4/28/2014 9CC3212.iam/
8Z0204
8Z0202
8Z0204
DECALS
