Summers CoulterChisel CC2815 Operator's Manual page 34

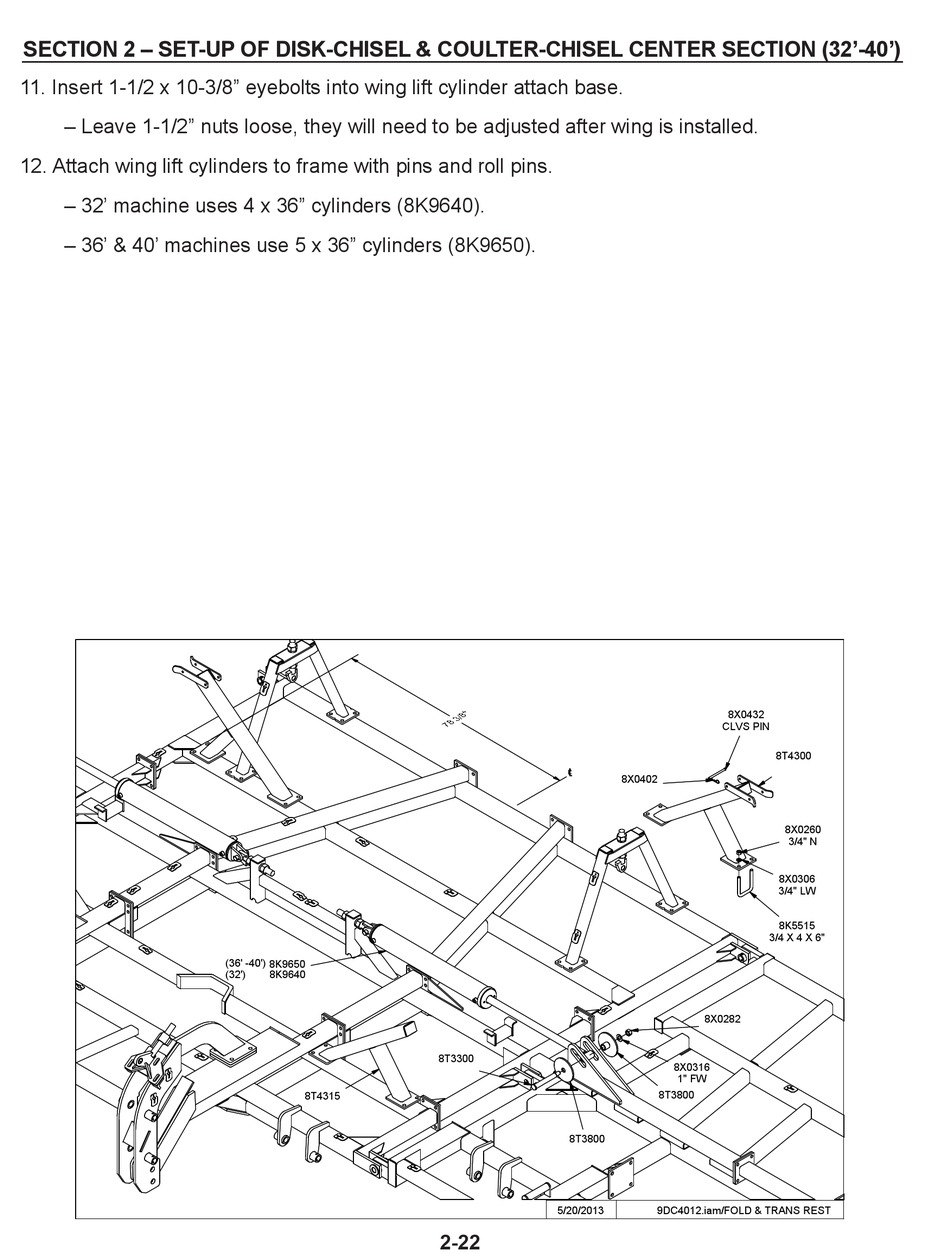

SECTION 2 – SET-UP OF DISK-CHISEL & COULTER-CHISEL CENTER SECTION (32'-40')
11. Insert 1-1/2 x 10-3/8" eyebolts into wing lift cylinder attach base.
– Leave 1-1/2" nuts loose, they will need to be adjusted after wing is installed.
12. Attach wing lift cylinders to frame with pins and roll pins.
– 32' machine uses 4 x 36" cylinders (8K9640).
– 36' & 40' machines use 5 x 36" cylinders (8K9650).
(36' -40')
8K9650
(32') 8K9640
8T4315
q
8T3300
8T3800
5/20/2013
2-22
8X0432
CLVS PIN
8T4300
8X0402
8X0260
3/4" N
8X0306
3/4" LW
8K5515
3/4 X 4 X 6"
8X0282
8X0316
1" FW
8T3800
9DC4012.iam/ FOLD & TRANS REST
