Summers CoulterChisel CC2815 Operator's Manual page 54

Hydraulic Hitch Hydraulic Setup - 16'-28'

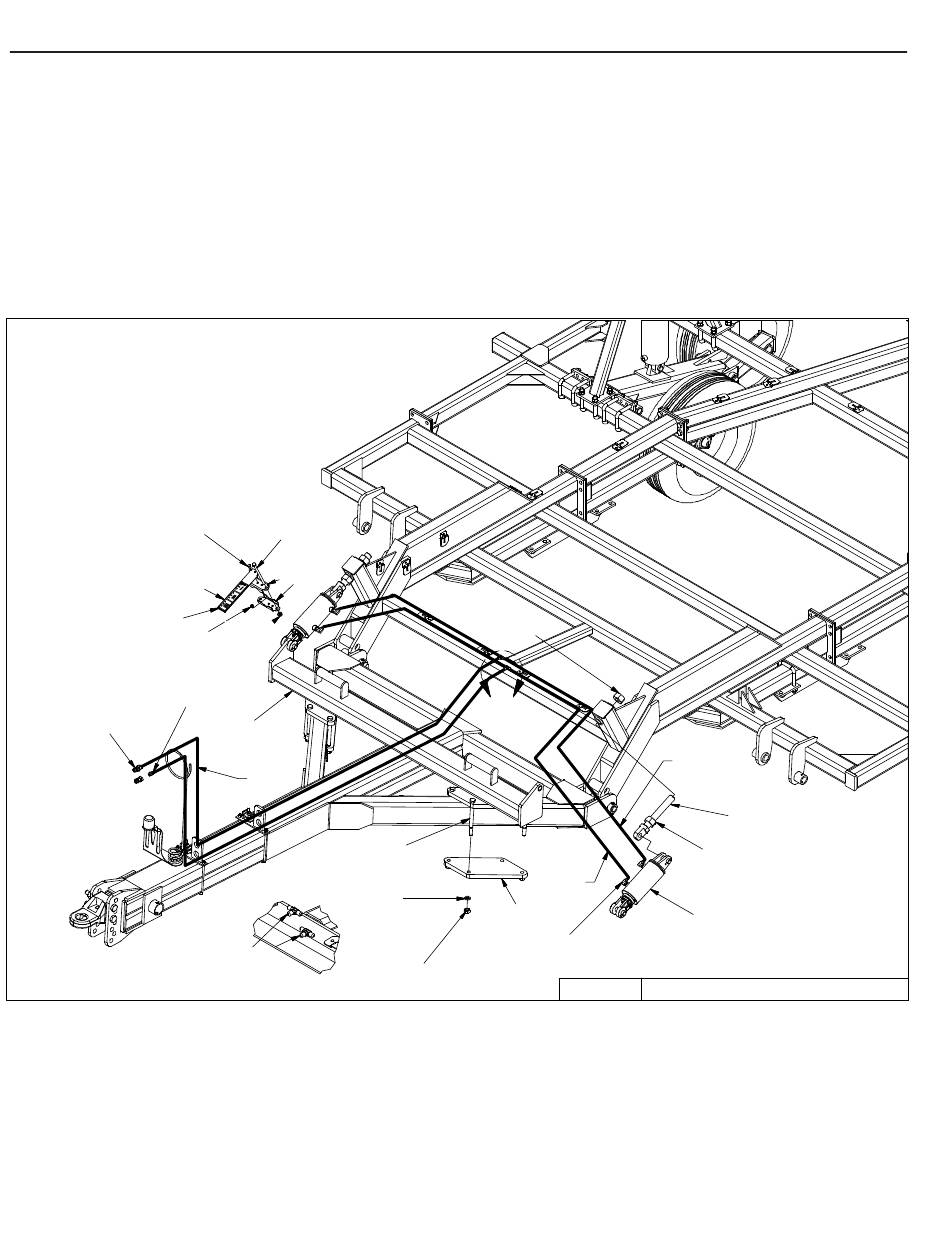

1. Install Hydraulic hitch hose as shown in the diagram.
2. Hydraulic Hitch cylinder should be plumbed in parrallel.
3. Route hose along hitch frame.
4. Use provided clamps and plastic ties to secure hoses.
16' - 28' COULTER- AND DISK-CHISEL
HYDRAULIC HITCH
8X0001
3/8 X 3/4"
8CC0805
8Z0365
8X0203
3/8" FN
8J5510
3/4" ORB X #6 JIC(M)
8D3212
3/4" ORB TIP ISO
SECTION 2 – HYDRAULIC SET-UP (16' - 28')
8X0077
1/2" X 7-1/2"
8CC0800
8X0246
1/2" FN
8CC4010
8N3150
2X
8X0120
3/4" X 9"
8X0306
3/4" LW
8J5300
#6 JIC(M) TEE
8X0285
1 1/2" N
8N3060
8CC4012
8J6010
3/4-16ORB X #6JIC(M) 90° ADP
8X0260
3/4" N
2-42
8N3048
2X
8P7250
8X0285
1 1/2" N
2X
8T2040
8/31/2012 9CC2012H.iam/ 16'-28' HYD HITCH
