1. Hydraulic hoses and fittings for depth control cylinders can be found on following drawing.
– Rephasing cylinders require that oil from the rod end of first cylinder goes to base end of
second cylinder and so forth. Cylinders will not operate properly unless they are connected
correctly.
2. Special attention should be paid to routing of hydraulic hoses. Diagrahm below shows layout of
hoses for depth control cylinders.
A. It is best to start by routing the hose for the 6 x 10" cylinder. Make sure there is 60" of hose
ahead of hose holder. This is usually enough hose for safe and easy hook-up to tractor.
B. Route hose along hitch frame. Use plastic clamps provided. Do not tighten until routing is
complete.
– Clamps are made to have the round surface point towards the surface that you are
mounting to. DO NOT OVER TIGHTEN.
C. Leave slack by hitch pivot.

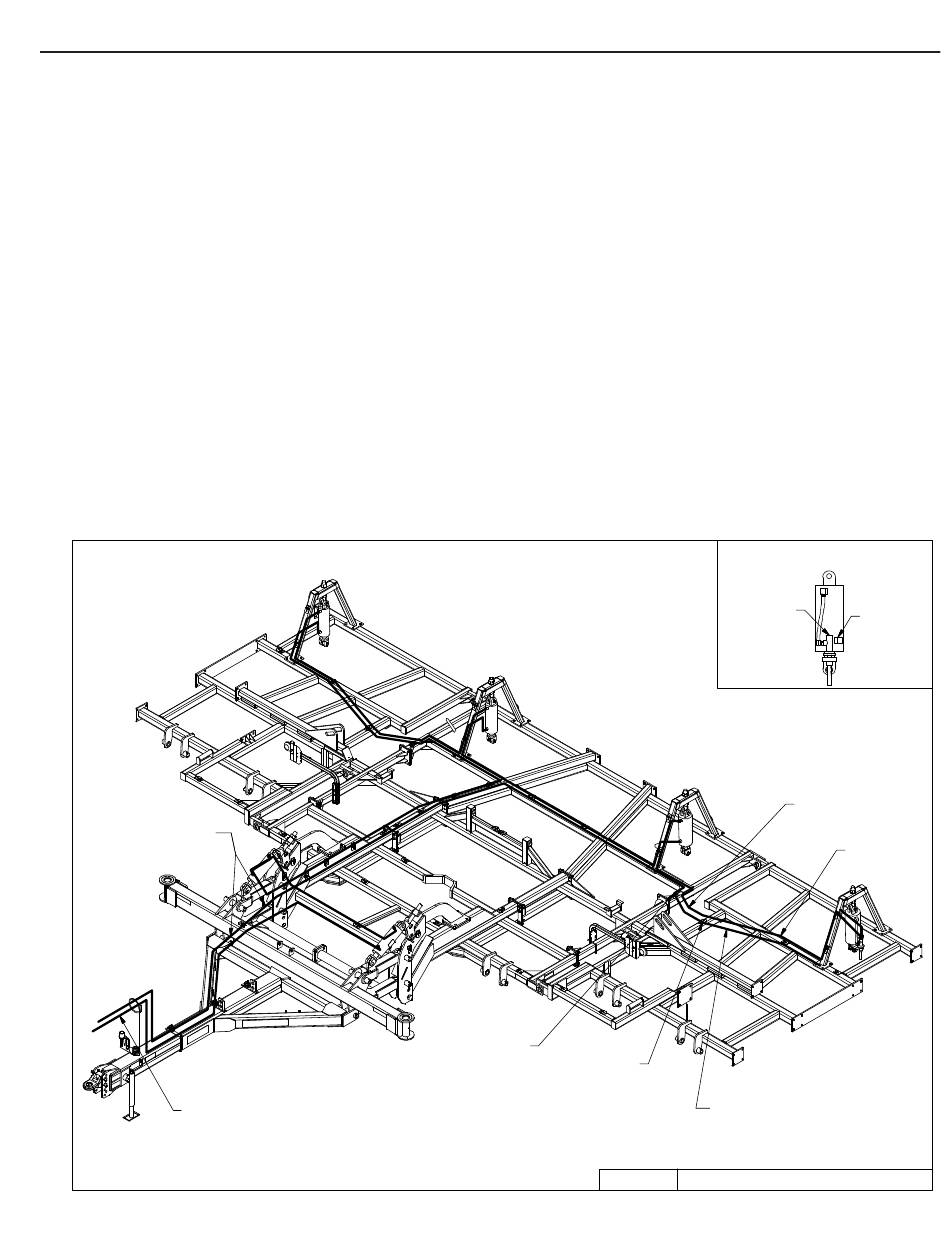

32' - 40' DEPTH CONTROL HYD.
LEAVE SLACK AT THESE
LOCATIONS FOR FLEX
LEAVE APPROX. 60"
SECTION 2 – HYDRAULIC SET-UP (32'-40')
1
2
8/31/2012
2-43
8T1060 CYLINDER
PORT LOCATIONS
BASE PORT
ROD PORT
LEAVE ENOUGH
SLACK FOR WING
TO PIVOT
3
STRETCH HOSES TIGHT
TO PREVENT PINCHING
BY TRANSPORT LOCK
9CC3212.iam/ DEPTH CONTROL HYD
