Summers CoulterChisel CC2815 Operator's Manual page 66

SECTION 2 – INSTALLATION OF SHANKS AND COULTER GANGS

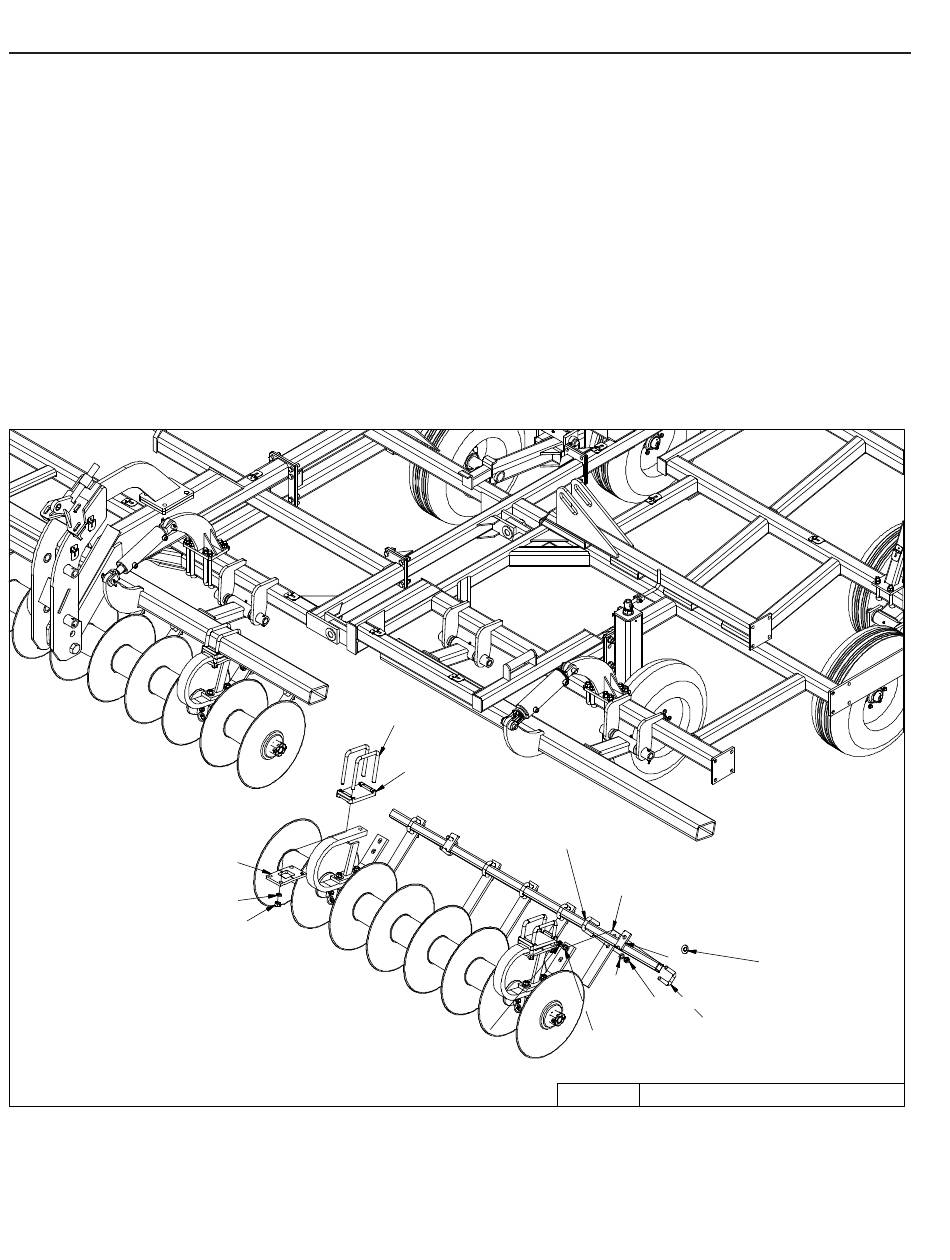

1. Gang Mounting – Start from the center and work towards the outside when hanging the gangs.
Bearing location is important, use correct gang assembly for each location. Carefully lift gang to
frame close to correct location. Attach C-shanks to frame using (2) 3/4" U-bolts, mounting plate
with peg, flat mounting plate, lockwashers and nuts. After both C- shanks on each gang are
mounted, slide the gang to its proper location and tighten hardware.
2. Scraper Mounting – Attach scraper mounting tubes to scraper support brackets (8J0200) using
3/4" U-bolts (8K5505), spacer flat (8K4420), lockwashers and nuts. Attach scraper flats (8J0190)
to the mounting tubes using 3/4" U-bolts (8K5505), flatwashers (lower hole only), lockwashers
and nuts. Center between coulter blades.
Locations are shown in the following pages
3/4" LW
3/4 X 6-1/8 X 7-1/2"
8K4210
8X0306
8X0260
3/4" N
8K5520
8K4200
8K5505
3/4 X 2-1/8 X 4-1/4"
8X0260
3/4" N
2-54
8J0190
8K4420
8X0306
ON 8J0190 ONLY)
3/4" LW
8X0260
3/4" N
8K5505
8X0306
3/4 X 2-1/8 X 4-1/4"
3/4" LW
8/15/2012 9CC3212.iam/
8X0318
3/4" FW
(BTTM HOLE
GANGS & SCRAPERS
