Summers CoulterChisel CC2815 Operator's Manual page 82

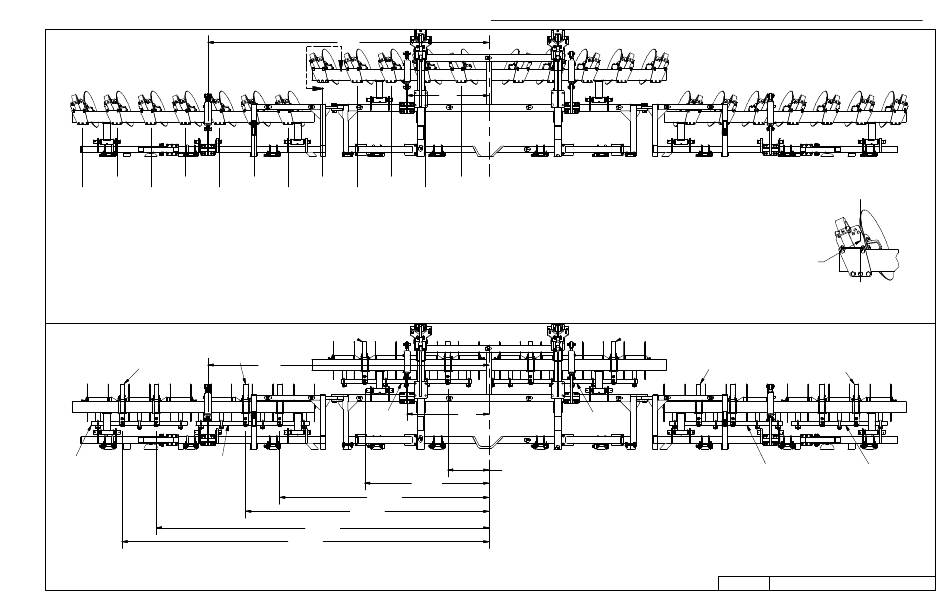

SECTION 2 – INSTALLATION OF SHANKS AND COULTER GANGS
40' DISK-CHISEL
164"
A
48"
217 1/4" 177 1/4" 137 1/4" 97 1/4" 57 1/4" 16 1/4" 0"
237 1/4" 197 1/4" 157 1/4" 117 1/4" 77 1/4" 37 1/4" 0"
WHEN LOCATING BLADE, USE CENTER
HOLE ON REAR OF BRACKET, AS
SHOWN. DIMENSION SHOWN IS FROM
CENTERLINE OF MACHINE TO THIS HOLE.
DETAIL A
40' COULTER-CHISEL
8CC2280F 8CC2280F
8CC2260F
8CC2260F
8CC2260F
8CC2260F
164"
48"
8J3276
8J3286
8J3256 8J3266
24 1/4" 8J3266 8J3256
72 1/2"
122 1/4"
142 1/4"
194 1/4"
214 1/4"
8/30/2012 9DC4012.iam/ 40' GANG LAYOUT
2-70
