Summers CoulterChisel CC2815 Operator's Manual page 80

36' DISK-CHISEL
217 1/4" 177 1/4"
197 1/4" 157 1/4"
36' COULTER-CHISEL
8CC2250F
8CC2252F
8J3246 8J3256
164"
A
137 1/4" 97 1/4" 57 1/4"
117 1/4" 77 1/4" 37 1/4"
8CC2280F
164"
8J3276
72 1/2"
120 1/4"
144 1/2"
168"
192 1/2"
SECTION 2 – INSTALLATION OF SHANKS AND COULTER GANGS
48"
16 1/4" 0"
0"
8CC2280F
48"
8J3286
24 1/4"
WHEN LOCATING BLADE, USE CENTER
HOLE ON REAR OF BRACKET, AS
SHOWN. DIMENSION SHOWN IS FROM
CENTERLINE OF MACHINE TO THIS HOLE.
8CC2252F
8CC2250F
8J3256 8J3246
8/30/2012 9DC3612.iam/
2-68
DETAIL A

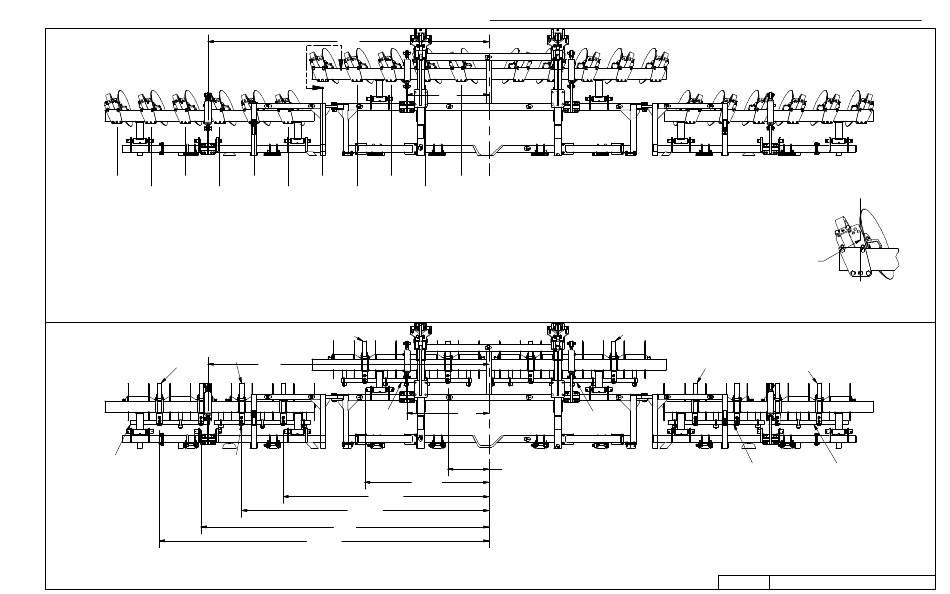

36' GANG LAYOUT
