Summers CoulterChisel CC2815 Operator's Manual page 134

1. 52" mounting arms (PN 8H2314) should be used when attaching Summers mounted harrows.

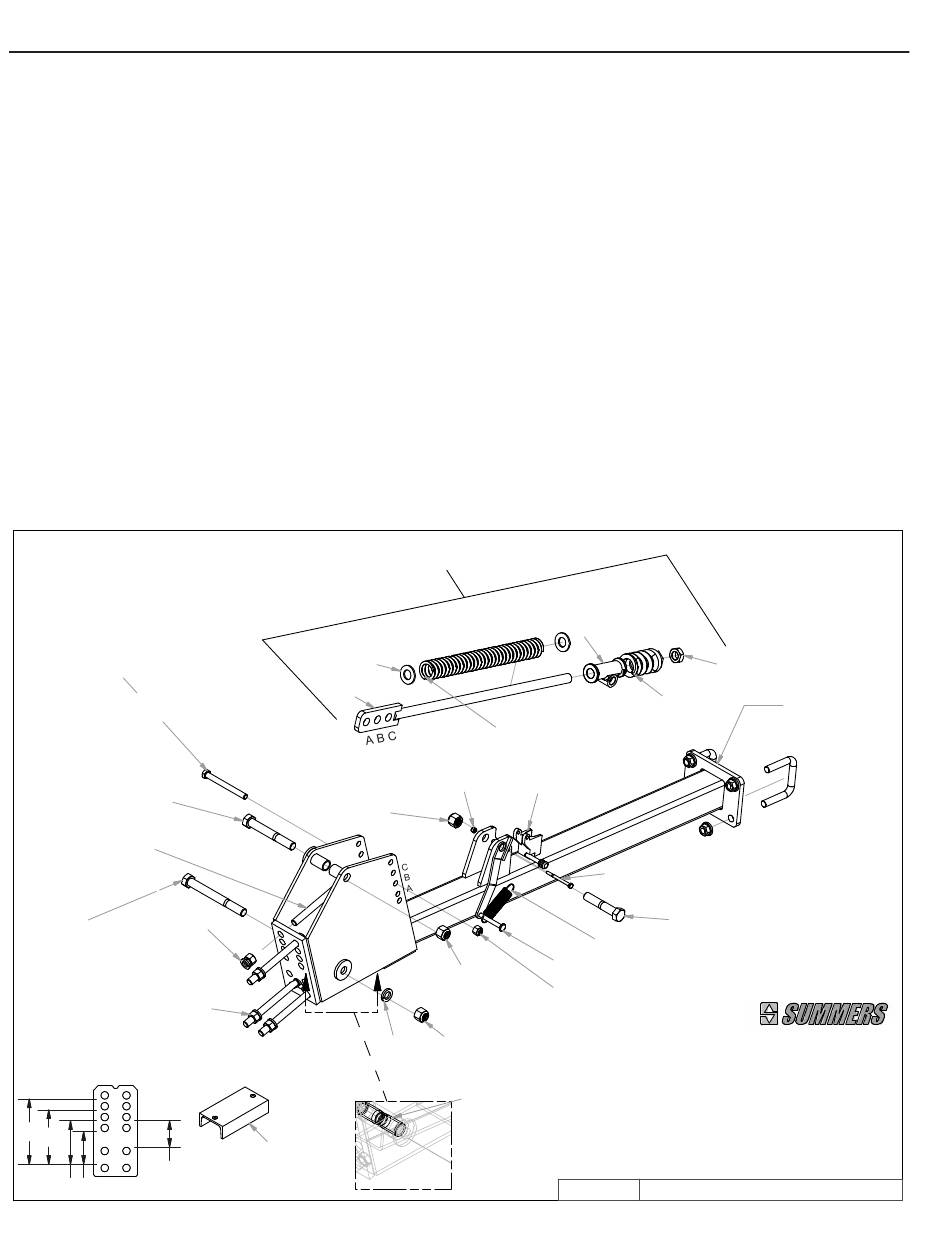

2. Mounting arm location can be found on the following layout drawings.
– In certain locations, the mounting arm will be installed directly behind a liftarm pivot. A
spacer block has been welded to the chisel plow frame so there is no interference be-
tween u-bolts and mounting head.
NOTE: Make sure that if one mounting arm rests against a spacer block, the other mounting arm,
on that section, also rests against a spacer block.
3. Adjust harrows according to performance desired.
8X0073
1/2 X 5"
WING-ARM TRAVEL STOP
MATCH LOCATION LETTER
ON SUPPORT ROD ASSEMBLY
8X0123
3/4" X 5.5"
8X0099
5/8" X 6-3/4"
8X0101
5/8" X 8" (SC)
8X0304
5/8" LW
8X0117
3/4 X 7"
8X0250
5/8" N
FRAME SIZES
6"
5"
2 1/2"
4" 3"
SECTION 6 – PARTS
8H1394
8D5219
8H1315
8X0261
3/4" LN
A
8X0306
3/4" LW
8H2104
CHANNEL 6"
8H2102
CHANNEL 4"
8H1327A
8H1309
8X0222
1/4" LN
8H2184
8X0014
1/4 X 3"
8H1280
8H2190
8X0261
3/4" LN
8X0242
NY-LOCK 1/2" N
WING-ARM TRAVEL STOP
8X0261
MATCH LOCATION LETTER
3/4" LN
ON SUPPORT ROD ASSEMBLY
8W1897
3/22/2016
6-34
8X0269
8A2131A ARM LENGTH
8H2132 - 34"
8H2142 - 42"
8H2144 - 52"
8X0118
3/4 X 4"
8Z0101
SMC DECAL
8H2314.iam/ MOUNTING ARM ASSEMBLY
