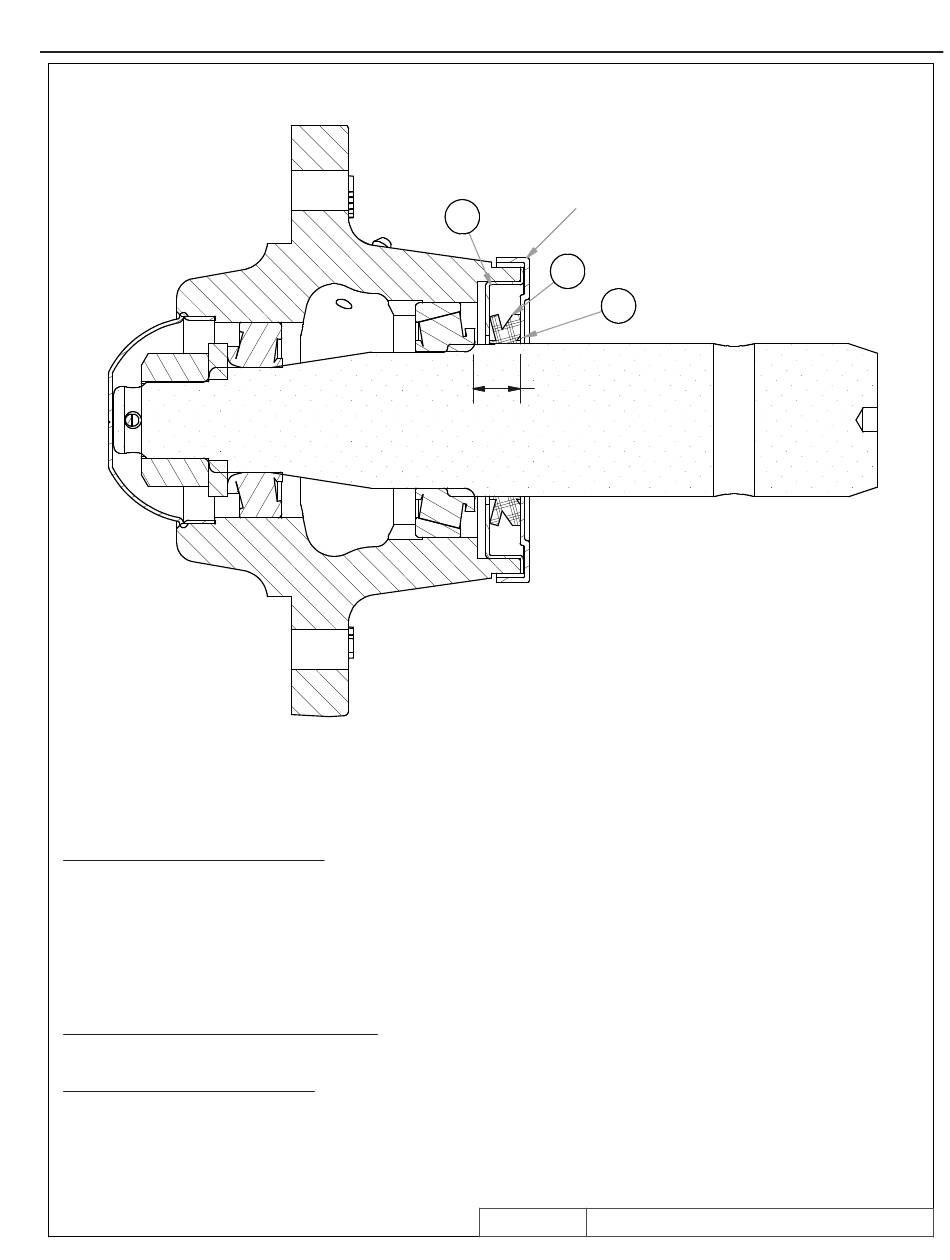

INSTALLATION INSTRUCTIONS FOR 8R6922 SEAL ASSEMBLY (3 PIECE-GBGI)
FOR H614 HUB:
SEAL SUPPORT (2 - 8R6927)
PRESS SEAL SUPPORT (2) ONTO SPINDLE 5/8" (+1/32", -0") PAST INNER BEARING RETAINING SHOULDER.
A. IF SEAL SUPPORT IS NOT PRESSED ON SPINDLE FAR ENOUGH THE SEAL SUPPORT WILL RUB ON HUB.
B. IF SEAL SUPPORT IS PRESSED TOO FAR ONTO SPINDLE IT WILL CAUSE IMPROPER CONTACT BETWEEN
RUBBER SEAL (3) AND INNER SEAL SUPPORT (1) RESULTING IN BEARING CONTAMINATION AND FAILURE.
NOTE: APPLY THIN LAYER OF GREASE TO COUNTERFACE (1) SURFACE AT TIME OF SEAL
INSTALLATION.
SEAL COUNTERFACE (1 - 8R6924)
PRESS SEAL COUNTERFACE INTO HUB UNTIL SHOULDER CONTACTS HUB.
V-SEAL (3 - 8R6923 (A-994))
STRETCH V-SEAL OVER SEAL SUPPORT UNTIL ITS BACK IS SEATED AGAINST THE BACK SHOULDER OF SEAL
SUPPORT AND LIES SMOOTH ALL AROUND.
SECTION 6 – PARTS
614 HUB W/GBGI SEAL
1
5/8 - 0
8/14/2014
6-33
8R6927
3
2
+ 1/32
"
GBGI
