Summers CoulterChisel CC2815 Operator's Manual page 122

8X0008
8X0067
8X0290
8X0327
8X0520
8D9110
8X0107
8X0259
8X0520
8T4094
SECTION 6 – PARTS (32'-40')
8T6010
8X0242
8X0202
8T6020
8T6000
8T4090
6/25/2008
6-22
APPLY ANTI-SIEZE
HOLE FOR
ROLL PIN
APPLY ANTI-SEIZE ON JACK BOLT (8T6000)
THREADS. SCREW JACK BOLT INTO AXLE
HOLDER (8T4094) FAR ENOUGH TO SEE HOLE
ON THE BOTTOM OF THE BOLT THROUGH THE
HOLE IN THE AXLE HOLDER.
INSERT 3/16" X 2" ROLL PIN. MAKE SURE PIN
IS PUSHED FAR ENOUGH IN SO THAT IT WILL
CLEAR TUBE WHEN ROTATED.

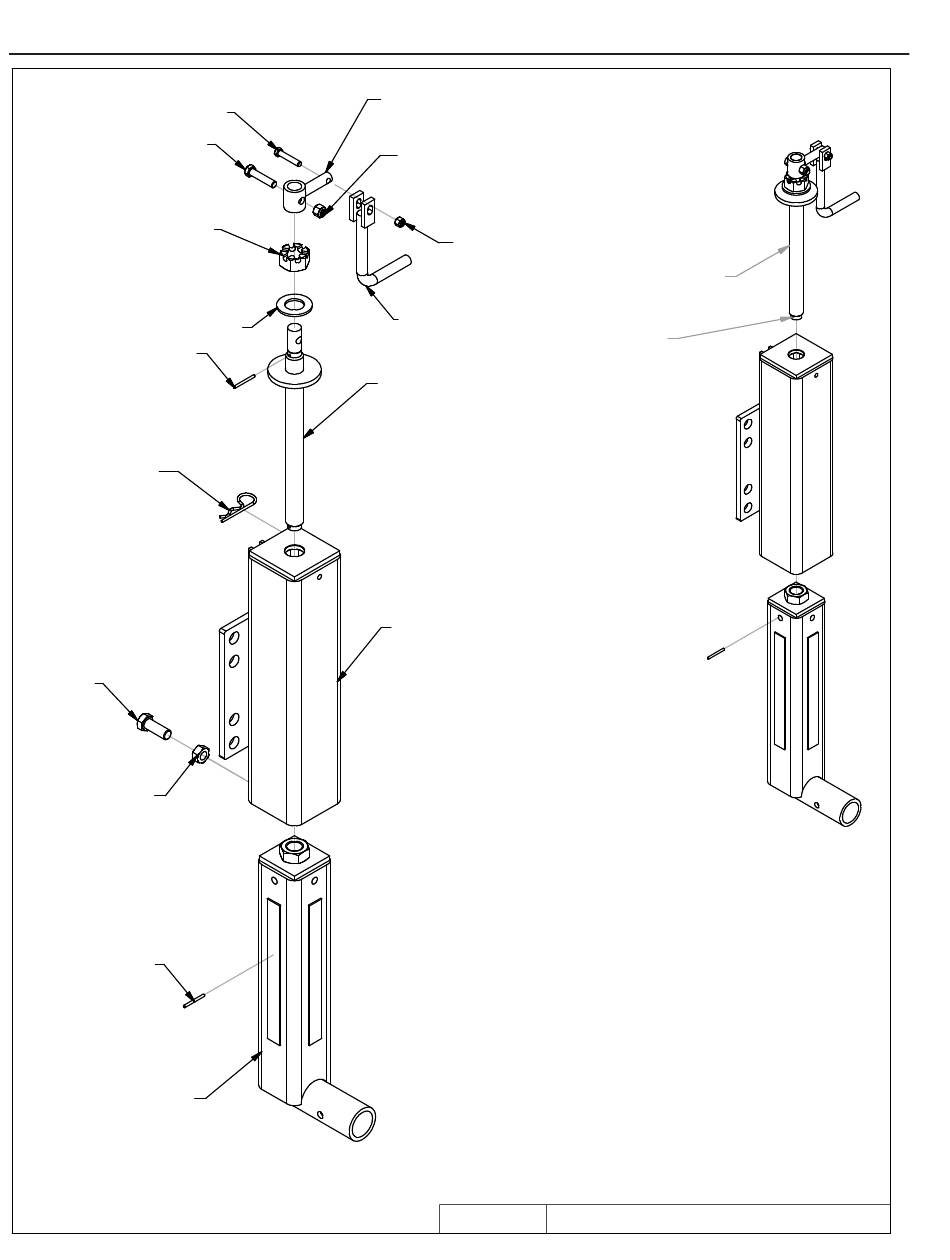

8T4096.iam/ GAUGE WHL ASSY W/O HUB
