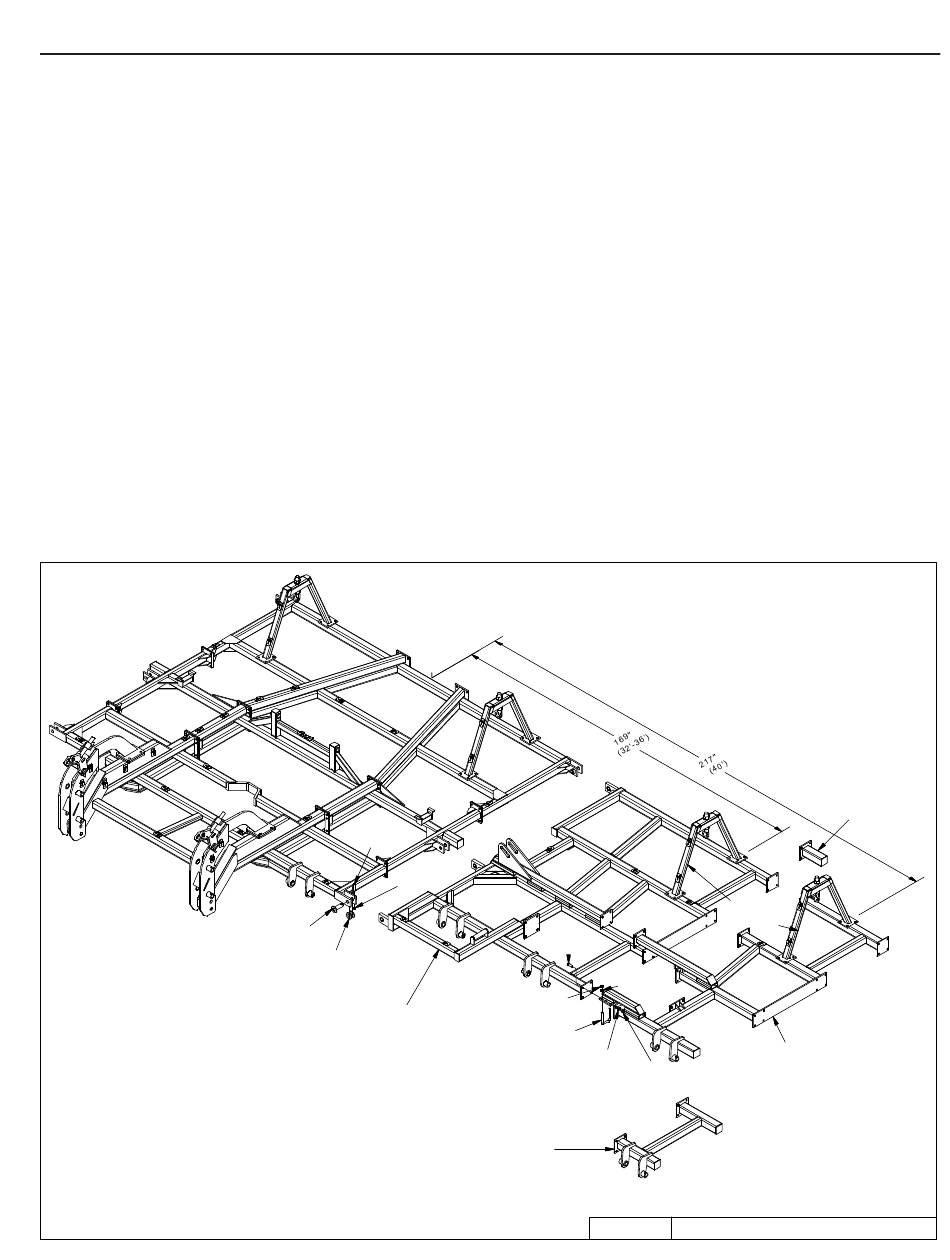

SECTION 2 – SET-UP OF DISK-CHISEL & COULTER-CHISEL WINGS (32'-40')
NOTE: It is recommended to set up both sides of machine at the same time. The left hand side is
shown.
1. Attach wing to center section with pins, washers, bolts and locknuts.
– Washers are used to center wing in hinges and prevent shift.
2. Fasten cylinder attach brackets with 3/4" u-bolts, located 169" from machine center.
3. Insert eyebolts (8K1755) into cylinder attach bracket.
– Tighten 1-1/2" nuts so the same amount of threads are above top nut on all eyebolts. Insure
that cylinder attach holes are aligned when eyebolts are tightened.
4. Center liftarm under cylinder attach brackets.
– Use 3/4" u-bolts for 4x4 to attach liftarm pivots (8T4100) to frame.
– The inside pivot will be attached with 3/4 x 6" bolts and a trip assembly.
– Slide pivot pin (8T3640) through liftarm and liftarm pivots.
– Insert 7/16 x 3-1/2" bolt in retaining bolt hole. Secure with lock nut.
8X0044
7/16" X 3-1/2"
8X0234
7/16" LNUT
8T3600
8C6015
8CC5050
LEFT
8CC5052 RIGHT
8X0112
3/4X2-1/4"
8X0306
3/4" LW
8X0260
3/4" N
8K5515
3/4 X 4 X 6"
8X0306
8X0260
3/4" LW
3/4" N
8CC4070
LEFT
8CC4072 RIGHT
(36' ONLY)
8/13/2012
2-23
8T4060
(36' ONLY)
8T4224
8CC4080 LEFT
8CC4082 RIGHT
(40' ONLY)
9DC4012.iam/ WING & CYL ATTCH
