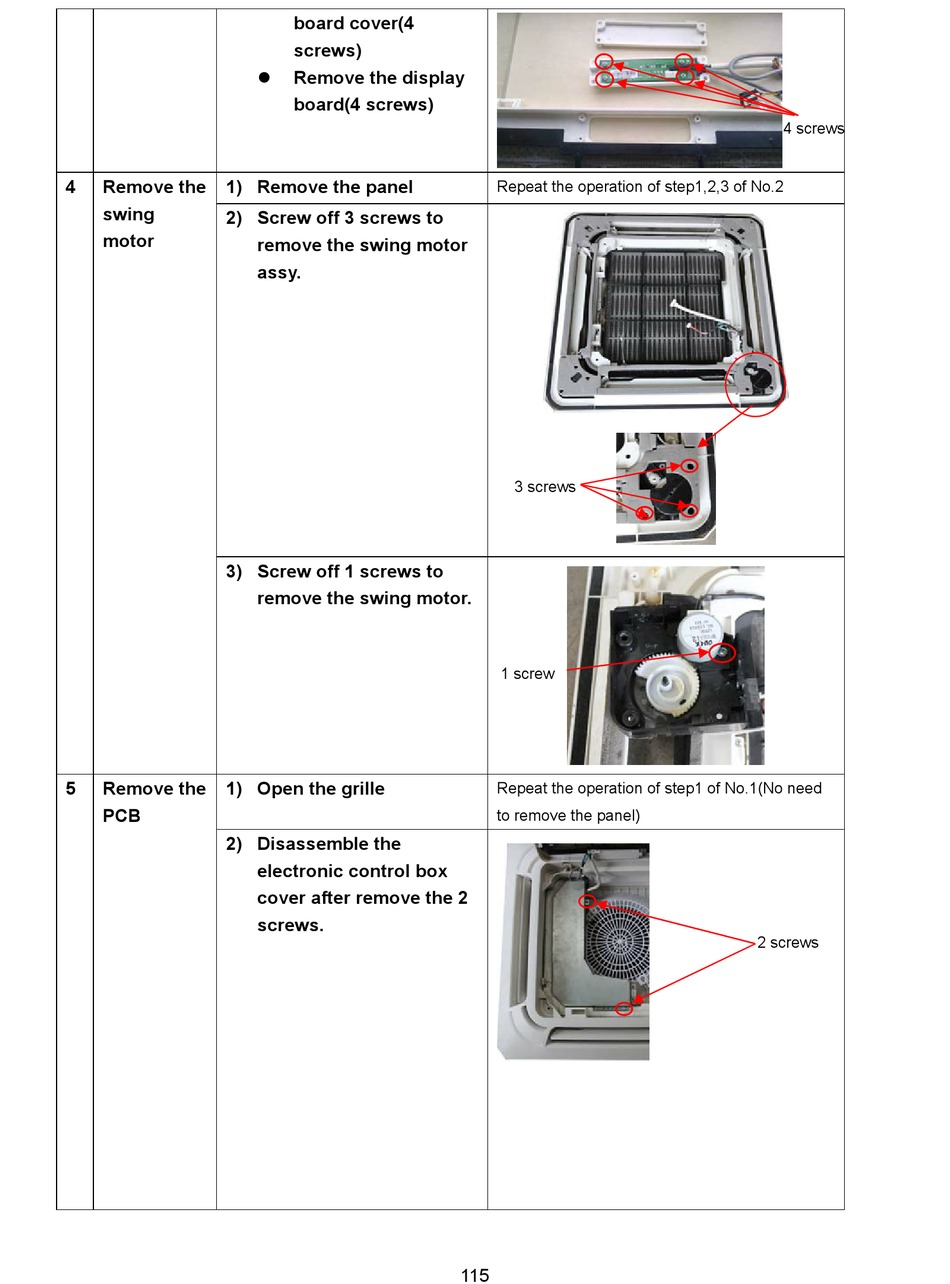

Pioneer CB009GMFILCFHD Service Manual page 118

4 Remove the 1) Remove the panel
swing
2) Screw off 3 screws to
motor
3) Screw off 1 screws to
5 Remove the 1) Open the grille
PCB
2) Disassemble the
board cover(4
screws)
 Remove the display
board(4 screws)
remove the swing motor
assy.
remove the swing motor.
electronic control box
cover after remove the 2
screws.
Repeat the operation of step1,2,3 of No.2
3 screws
1 screw
Repeat the operation of step1 of No.1(No need
to remove the panel)
115
4 screws
2 screws
