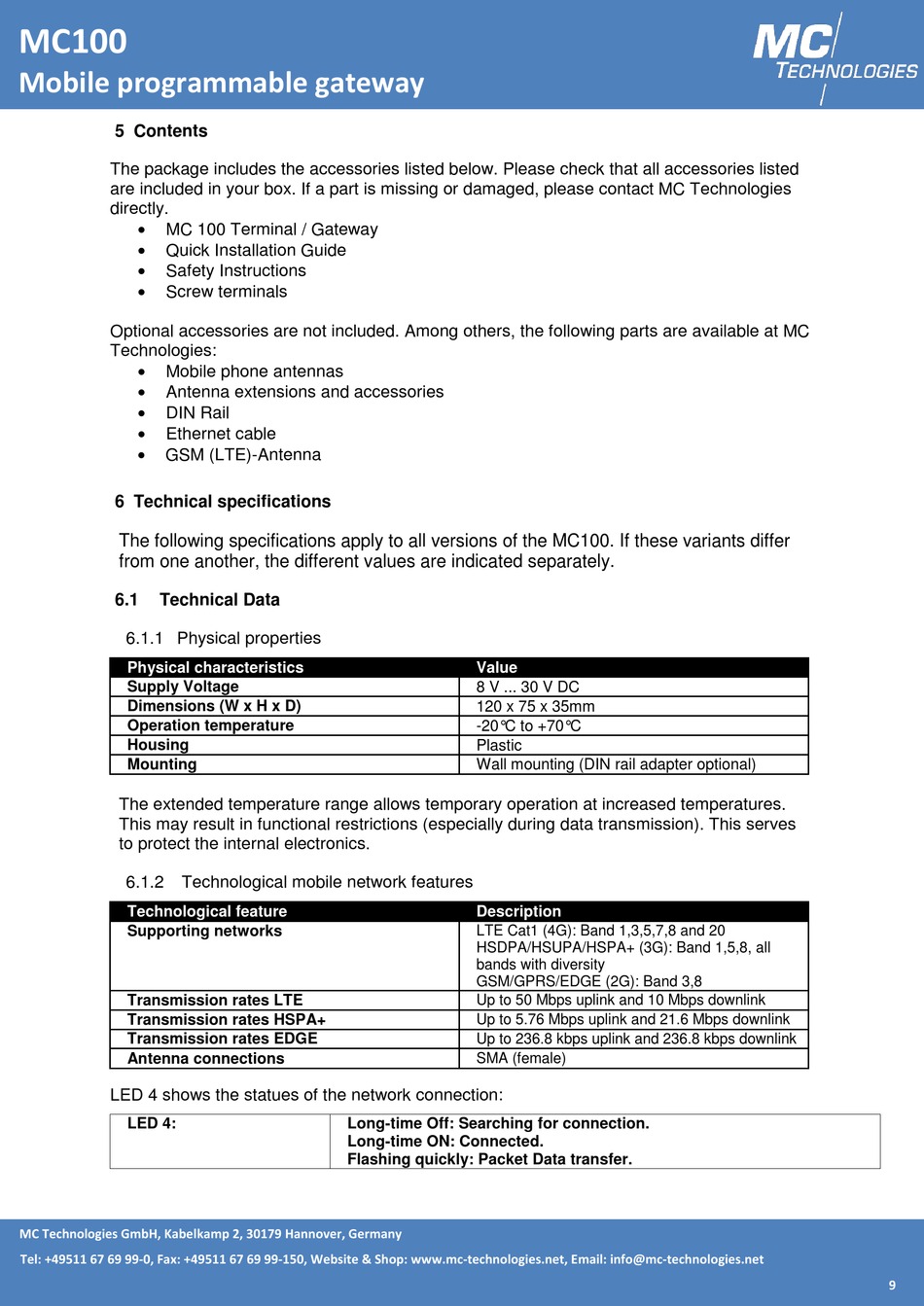

MC100
Mobile programmable gateway

5 Contents

The package includes the accessories listed below. Please check that all accessories listed
are included in your box. If a part is missing or damaged, please contact MC Technologies
directly.

MC 100 Terminal / Gateway

Quick Installation Guide

Safety Instructions

Screw terminals
Optional accessories are not included. Among others, the following parts are available at MC
Technologies:

Mobile phone antennas

Antenna extensions and accessories

DIN Rail

Ethernet cable

GSM (LTE)-Antenna

6 Technical specifications

The following specifications apply to all versions of the MC100. If these variants differ
from one another, the different values are indicated separately.
6.1

Technical Data

6.1.1

Physical properties

Physical characteristics
Supply Voltage
Dimensions (W x H x D)
Operation temperature
Housing
Mounting
The extended temperature range allows temporary operation at increased temperatures.
This may result in functional restrictions (especially during data transmission). This serves
to protect the internal electronics.
6.1.2

Technological mobile network features

Technological feature
Supporting networks
Transmission rates LTE
Transmission rates HSPA+
Transmission rates EDGE
Antenna connections
LED 4 shows the statues of the network connection:
LED 4:
MC Technologies GmbH, Kabelkamp 2, 30179 Hannover, Germany
Tel: +49511 67 69 99-0, Fax: +49511 67 69 99-150, Website & Shop: www.mc-technologies.net, Email: info@mc-technologies.net
Value
8 V ... 30 V DC
120 x 75 x 35mm
-20°C to +70°C
Plastic
Wall mounting (DIN rail adapter optional)
Description
LTE Cat1 (4G): Band 1,3,5,7,8 and 20
HSDPA/HSUPA/HSPA+ (3G): Band 1,5,8, all
bands with diversity
GSM/GPRS/EDGE (2G): Band 3,8
Up to 50 Mbps uplink and 10 Mbps downlink
Up to 5.76 Mbps uplink and 21.6 Mbps downlink
Up to 236.8 kbps uplink and 236.8 kbps downlink
SMA (female)
Long-time Off: Searching for connection.
Long-time ON: Connected.
Flashing quickly: Packet Data transfer.
