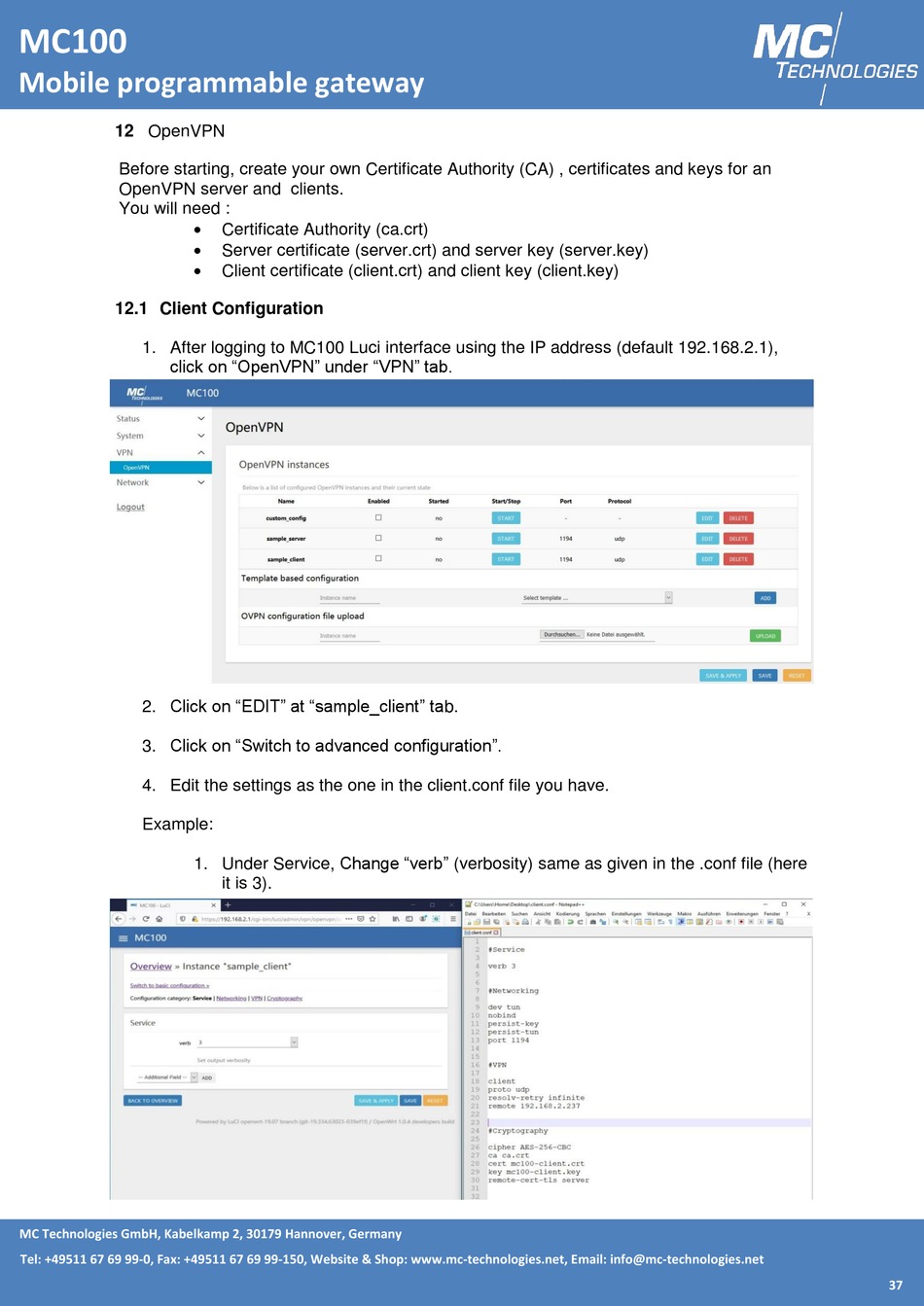

12 OpenVPN

Before starting, create your own Certificate Authority (CA) , certificates and keys for an
OpenVPN server and clients.
You will need :

12.1 Client Configuration

1. After logging to MC100 Luci interface using the IP address (default 192.168.2.1),
click on "OpenVPN" under "VPN" tab.
2. Click on "EDIT" at "sample_client" tab.
3. Click on "Switch to advanced configuration".
4. Edit the settings as the one in the client.conf file you have.
Example:
MC Technologies GmbH, Kabelkamp 2, 30179 Hannover, Germany
Tel: +49511 67 69 99-0, Fax: +49511 67 69 99-150, Website & Shop: www.mc-technologies.net, Email: info@mc-technologies.net

Certificate Authority (ca.crt)

Server certificate (server.crt) and server key (server.key)

Client certificate (client.crt) and client key (client.key)
1. Under Service, Change "verb" (verbosity) same as given in the .conf file (here
it is 3).
