MC100
Mobile programmable gateway

8 Ports and display

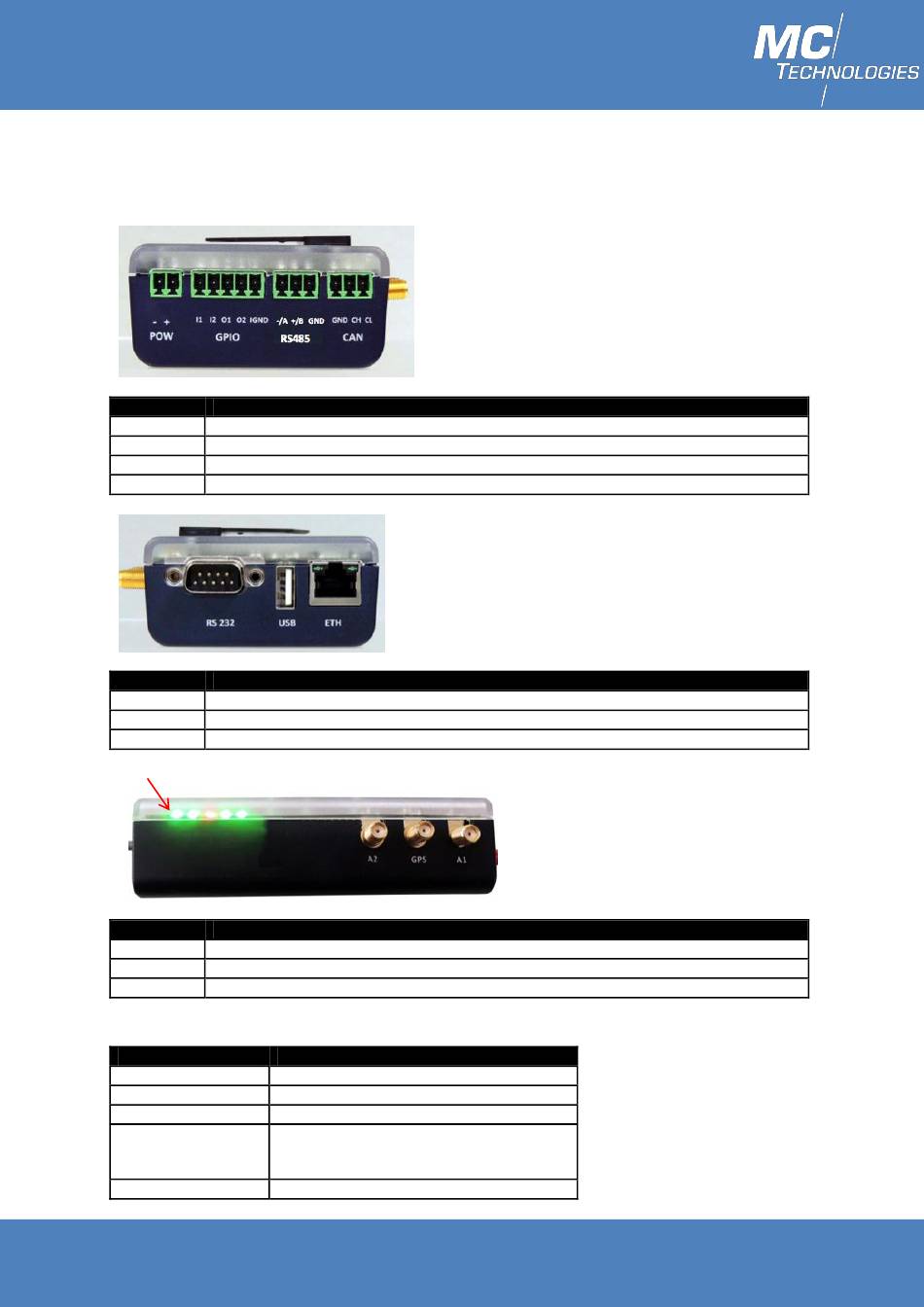

The following figures show a maximum equipped version of the MC100. Depending on the
variant, your MC100 may not have all connections, display or control elements.
Port
POW
GPIO
RS485
CAN
Port
RS232
USB
ETH
LED 1
Port
A1
A2
GPS
LED
LED 1
LED 2
LED 3
LED 4
LED 5
MC Technologies GmbH, Kabelkamp 2, 30179 Hannover, Germany
Tel: +49511 67 69 99-0, Fax: +49511 67 69 99-150, Website & Shop: www.mc-technologies.net, Email: info@mc-technologies.net
Description
Power supply
I/O-Interfaces
Serial RS485 interface (no galvanic isolation)
CAN-Port
Description
Serial RS232-Interface
USB-Port (USB 2.0 Host)
Ethernet-Port (RJ45, 10/100 BT)
Description
LTE Antenna - SMA socket (main connection)
LTE Diversity Antenna - SMA socket (MIMO)
GPS antenna – SMA socket
Description
Green, Power supply
Green, Configurable.
Red, Configurable.
Long-time Off: Searching for connection.
Long-time ON: Connected.
Flashing quickly: Packet Data transfer.
Green, Reserved for GPS.
