MC100
Mobile programmable gateway

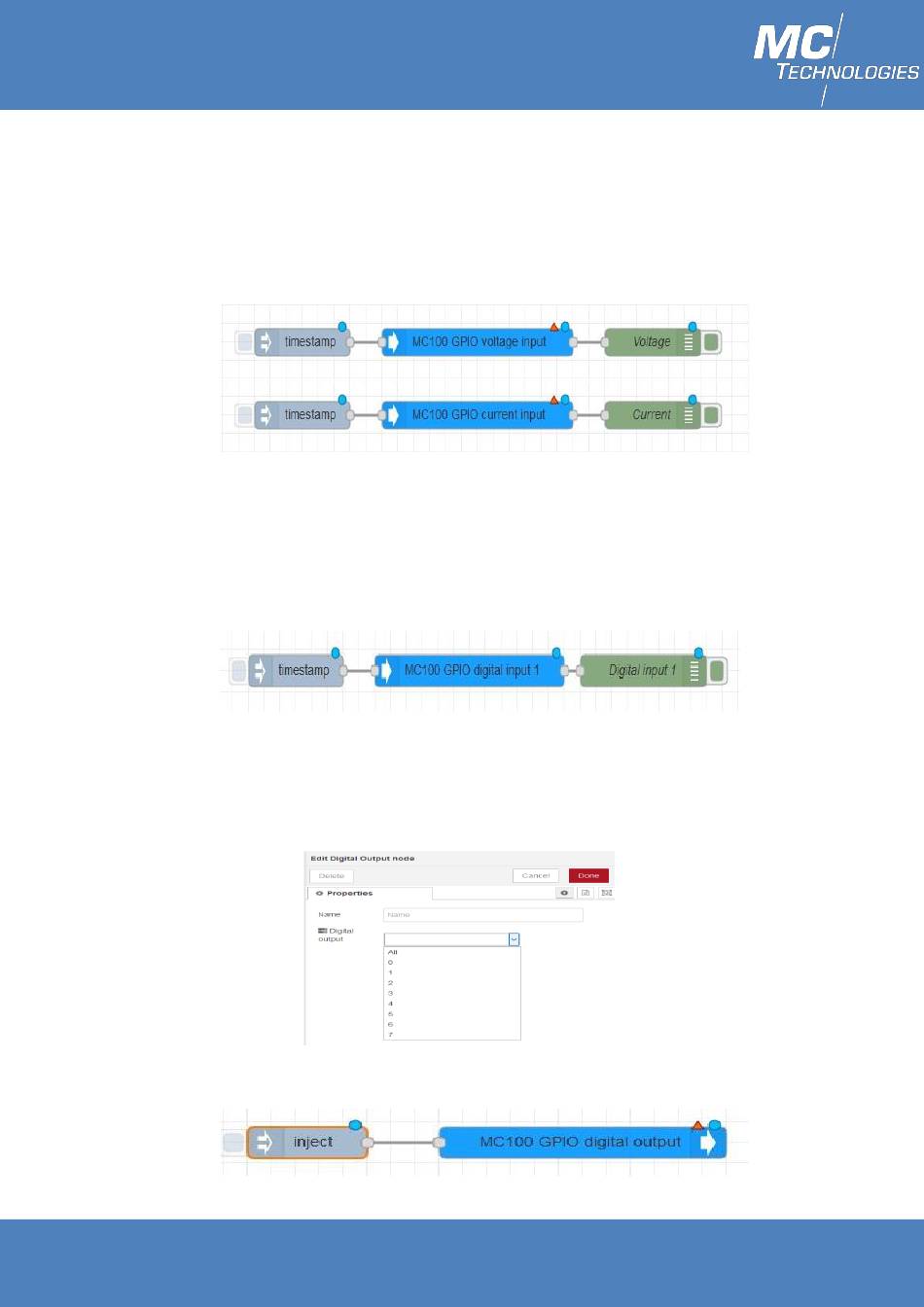

10 Readout analog and digital IO's via Node-RED website interface

10.1 MC100 GPIO

10.1.1
1. Add the inject node
2. Add voltage input/current input node
3. Add Debug node.
4. Wire and Deploy.
10.1.2
10.1.3
MC Technologies GmbH, Kabelkamp 2, 30179 Hannover, Germany
Tel: +49511 67 69 99-0, Fax: +49511 67 69 99-150, Website & Shop: www.mc-technologies.net, Email: info@mc-technologies.net

Analog Inputs (mA/V)

Digital Inputs

1. Add the inject node.
2. Add the digital inputs node.
3. Double click on MC100 GPIO digital input node to open the settings menu
and choose a Digital input.
4. Add Debug node (change name if wanted).
5. Wire and Deploy.

Digital Outputs

1. Add the Inject node.
2. Add the Digital output node.
3. Double click on MC100 GPIO digital output node to open the settings
menu and choose a Digital input.
4. Add Debug node (change name if wanted).
5. Wire and Deploy.
