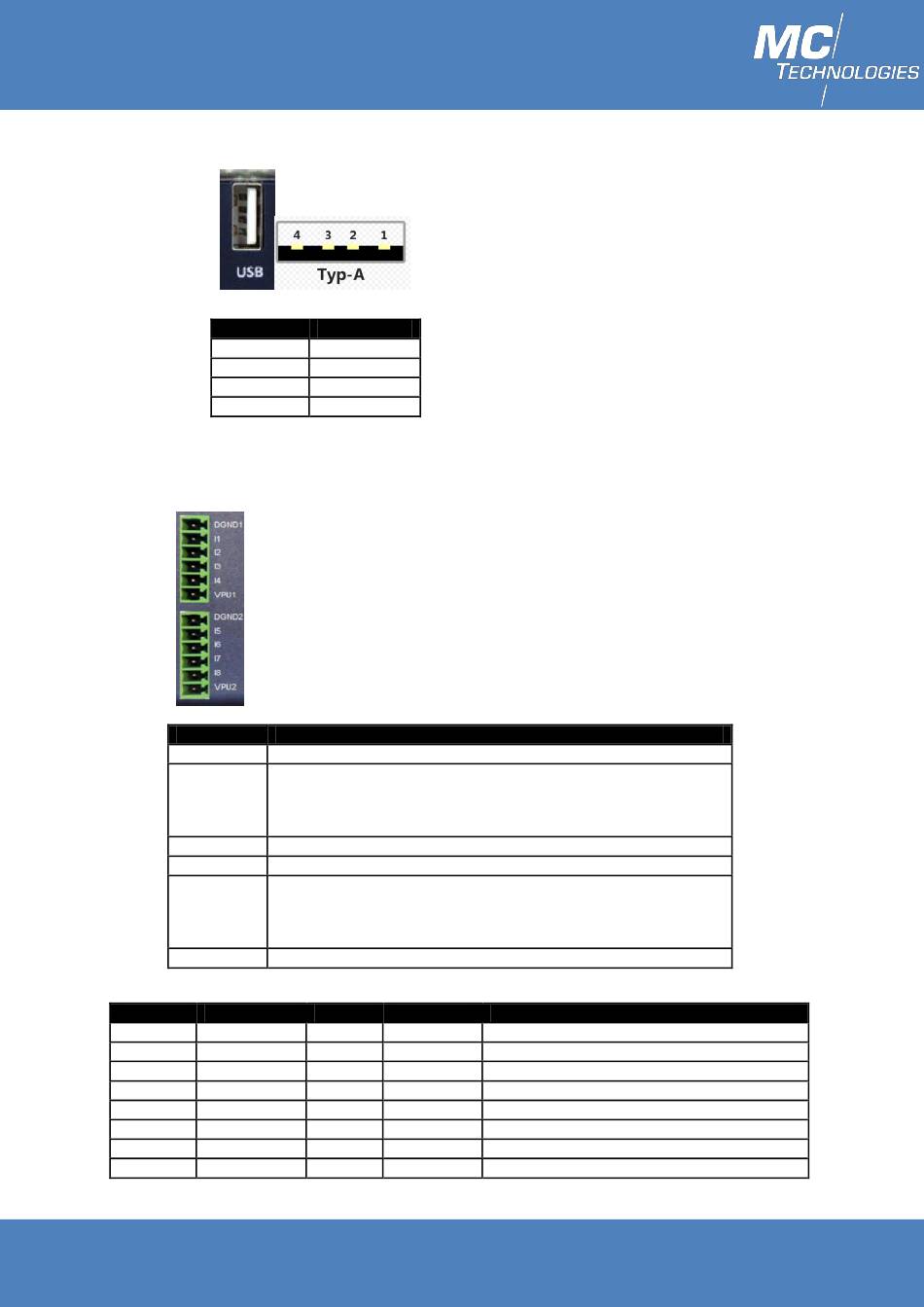

11.5 MC100 GPIO

11.5.1
Port
DGND1
I1 bis I4
VPU1
DGND2
I1 bis I4
VPU2
Function: Reading the digital inputs I1 to I8 (v1.0.4 and older)
Port
I1
I2
I3
I4
I5
I6
I7
I8
MC Technologies GmbH, Kabelkamp 2, 30179 Hannover, Germany
Tel: +49511 67 69 99-0, Fax: +49511 67 69 99-150, Website & Shop: www.mc-technologies.net, Email: info@mc-technologies.net

USB-Port 2.0 Type A

Port
Signal
1
+
2
D-
3
D+
4
-

Digital Inputs

Description
Digital Ground1, electrically isolated to all (D)GND
Digital inputs
Input voltage: 0 to 30V
Switching threshold: approx. 4V
All input voltages with DGND1 as ground
Not supported, please do not connect a signal
Digital Ground 2, electrically isolated to all (D)GND
Digital inputs
Input voltage: 0 to 30V
Switching threshold: approx. 4V
All input voltages with DGND2 as ground
Not supported, please do not connect a signal
Parameter
Read
1,0
x
1,0
x
1,0
x
1,0
x
1,0
x
1,0
x
1,0
x
1,0
x
Write
/sys/gpio_board_IO/inputs/input0/value
/sys/gpio_board_IO/inputs/input1/value
/sys/gpio_board_IO/inputs/input2/value
/sys/gpio_board_IO/inputs/input3/value
/sys/gpio_board_IO/inputs/input4value
/sys/gpio_board_IO/inputs/input5/value
/sys/gpio_board_IO/inputs/input6/value
/sys/gpio_board_IO/inputs/input7/value
Path
27
