11 Contol and readout of analog and digital IO's and LEDs via command line
interface
The digital and analog inputs and outputs of the MC100 products can be controlled or read
out by commands via command line interface using SSH access or from programming
tools. The corresponding commands are shown below with examples.

11.1 MC100 Circuit

Inputs:
- Galvanically isolated inputs with respect to ground.
- High detection from ~5VDC.
- max. 30VDC.
Outputs:
- Galvanically isolated OptoMOS outputs (against ground).
- Open drain circuit.
- max. 30VDC, 120mA RMS/DC.

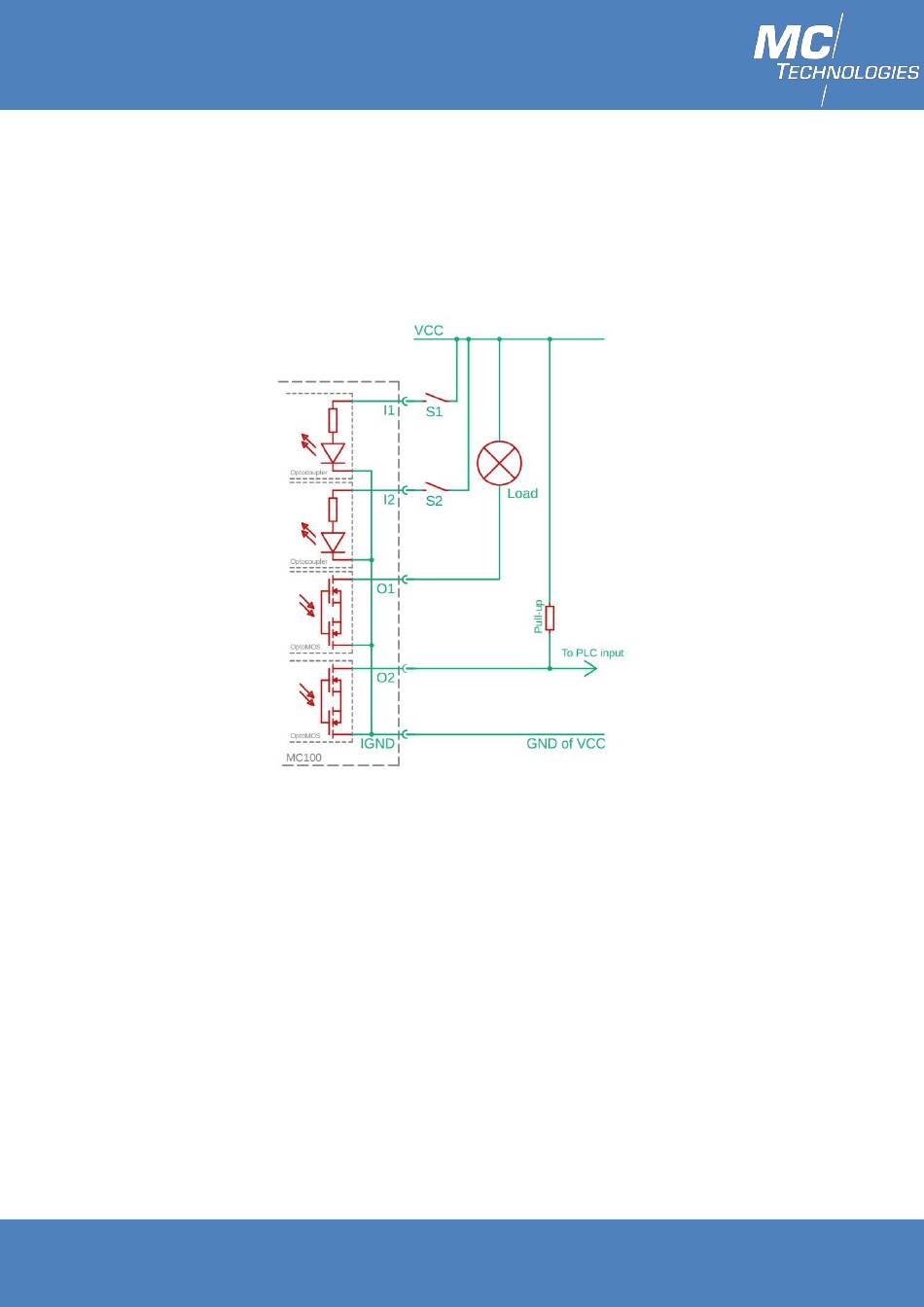

Example:
- O1: Control of direct load (relay, lamp,....).
- O2: Example with pull-up for control inputs.
