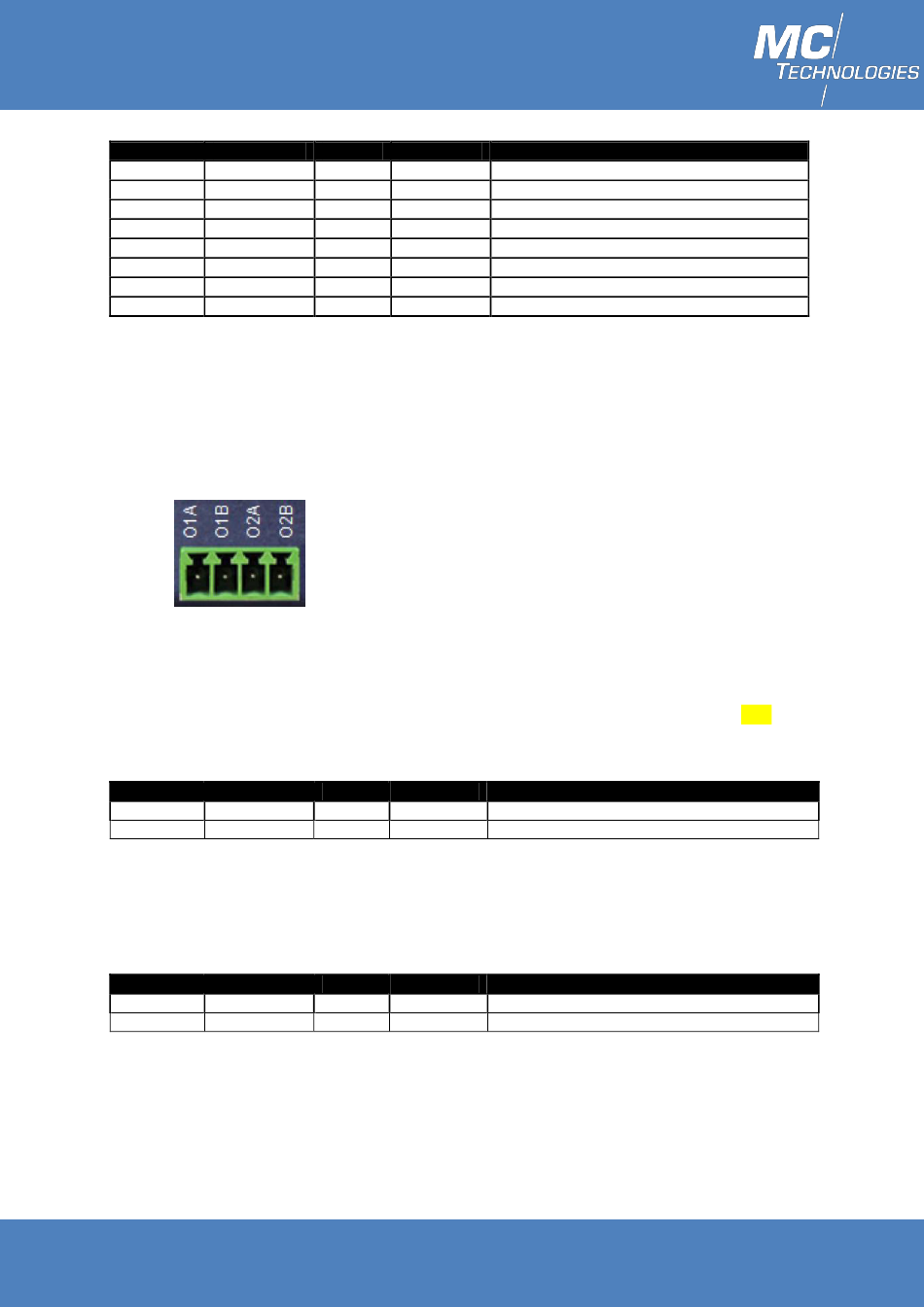

Function: Reading the digital inputs I1 to I8 (v1.0.5 and later)
Port
I1
I2
I3
I4
I5
I6
I7
I8
Example:
Command:
Response:
11.6.2
All outputs have an identical behaviour. The description here is only for one output (;
x = 1 and 2 MC100 SensT2).
All switching outputs are represented by solid state relays. OxA occupies one pin of
the switch, OxB the second pin. All outputs are galvanically isolated. The maximum
switching current is 300mA. The maximum applied voltage must not exceed 30V.
Function: Switching the digital outputs (v1.0.4 and older)
Port
O1A,O1B
O2A,O2B
Example:
Command:
Response:
Function: Switching the digital outputs (v1.0.5 and later)
Port
O1A,O1B
O2A,O2B
Example:
Command:
Response:
