MC100
Mobile programmable gateway

10.2 MC100 SensT2

10.2.1
10.2.2
10.2.3
MC Technologies GmbH, Kabelkamp 2, 30179 Hannover, Germany
Tel: +49511 67 69 99-0, Fax: +49511 67 69 99-150, Website & Shop: www.mc-technologies.net, Email: info@mc-technologies.net

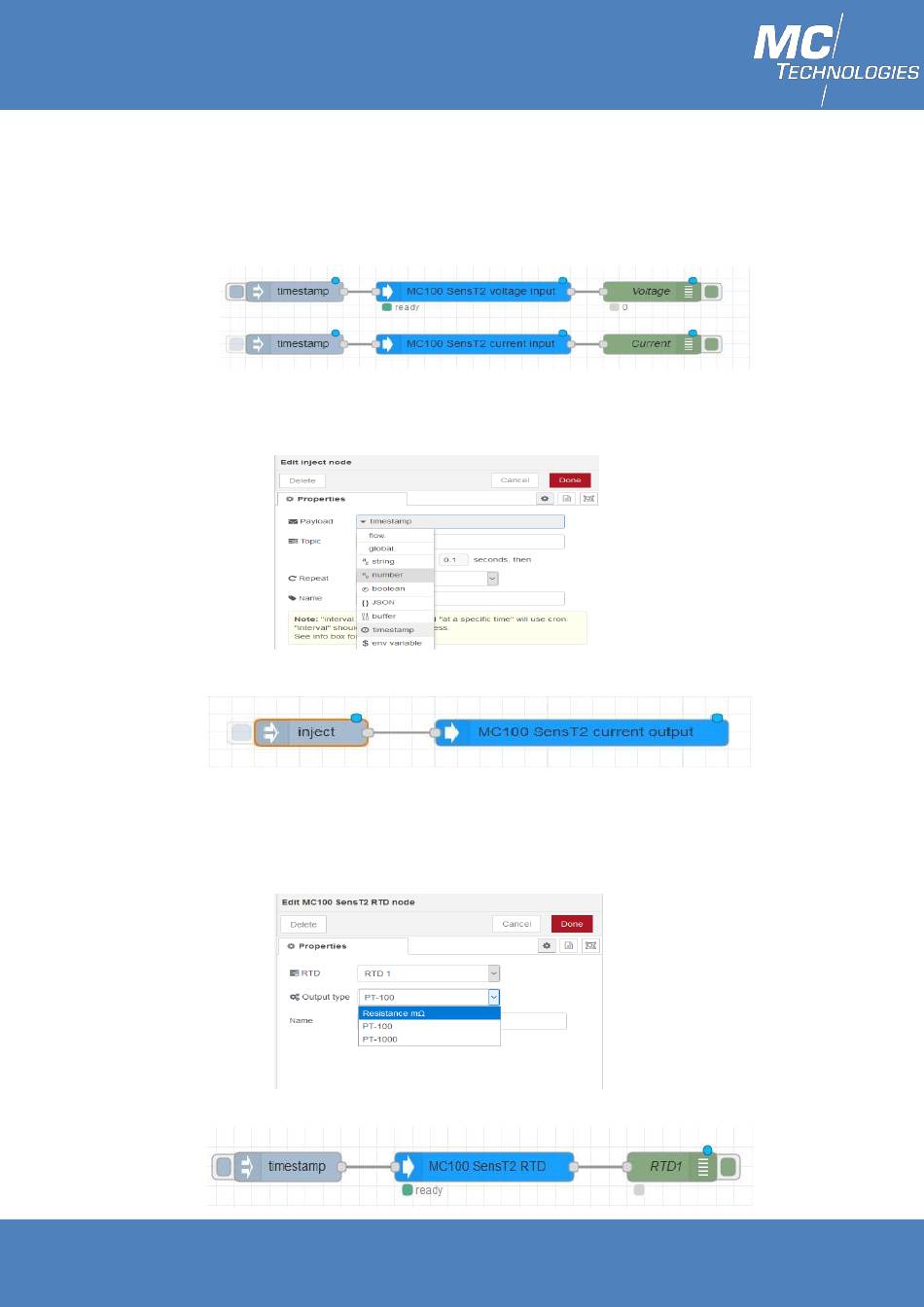

Analog Inputs

1. Add the inject node.
2. Add voltage input/current input node.
3. Add Debug node.
4. Wire (as shown in picture) and Deploy.

Write Analog Inputs

1. Add Inject node, double click on it and change the payload to Numbers
and give the analog Value (= Current in [0-20]mA*1000).
2. Add MC100 SensT2 current output node.
3. Wire and Deploy.

PT100/1000

1. Add the Inject node
2. Add MC100 SensT2 RTD
3. Double click on MC100 SensT2 RTD node to open the settings menu and
choose RTD and Output type.
4. Add Debug node(Change name if wanted)
5. Wire and Deploy
22
