Satel ACX-200 Manual

HARDWIRED ZONE / OUTPUT
EXPANDER
® ACX-200
acx200_e 11/06
The ACX-200 expander of hardwired zones and outputs is designed to work together
with the ACU-100 wireless system controller. It is supported by the ACU-100
controller with firmware version 1.05 or later. 4 zones and 4 outputs enable hardwired
equipment (detectors, sirens, etc.) to be connected to the wireless system. The
expander zones can be configured similarly to the hardwired ones. The expander
outputs are relay type outputs. The ACX-200 expander occupies 4 positions on the list
of devices which can be operated by the controller. It is supplied with direct voltage
12V (±15%).

1. Description of the PCB

5
1 2 3 4 1 2 1 2 6 2 1
C1 NC1 NO1 C2 NC2 NO2 C3 NC3 NO3 C4 NC4 NO4

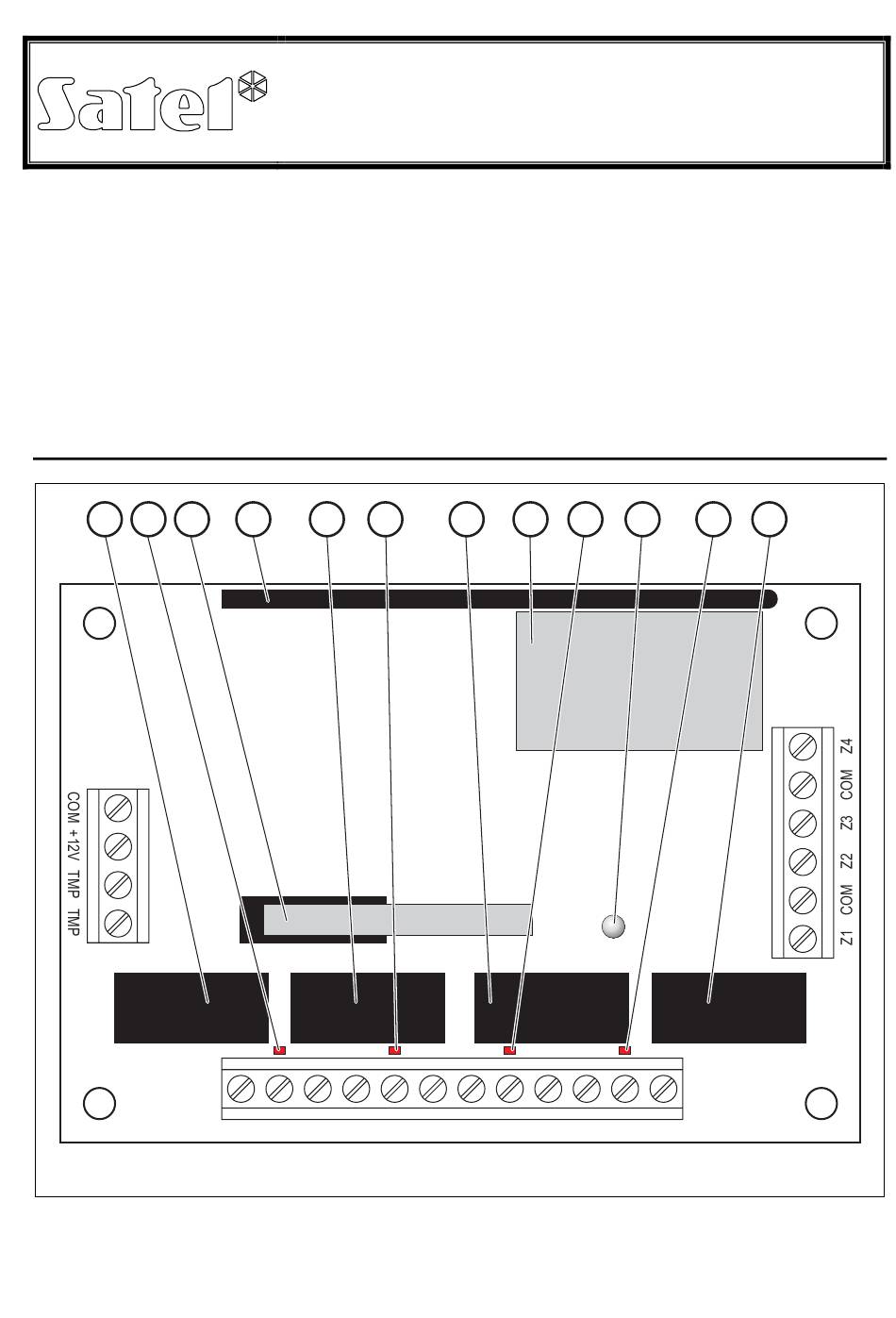

Fig. 1. View of the PCB.
Explanations for Fig. 1:
1 – relays.
2 – LED indicators. Indicate the status of outputs. ON when the output is active.
