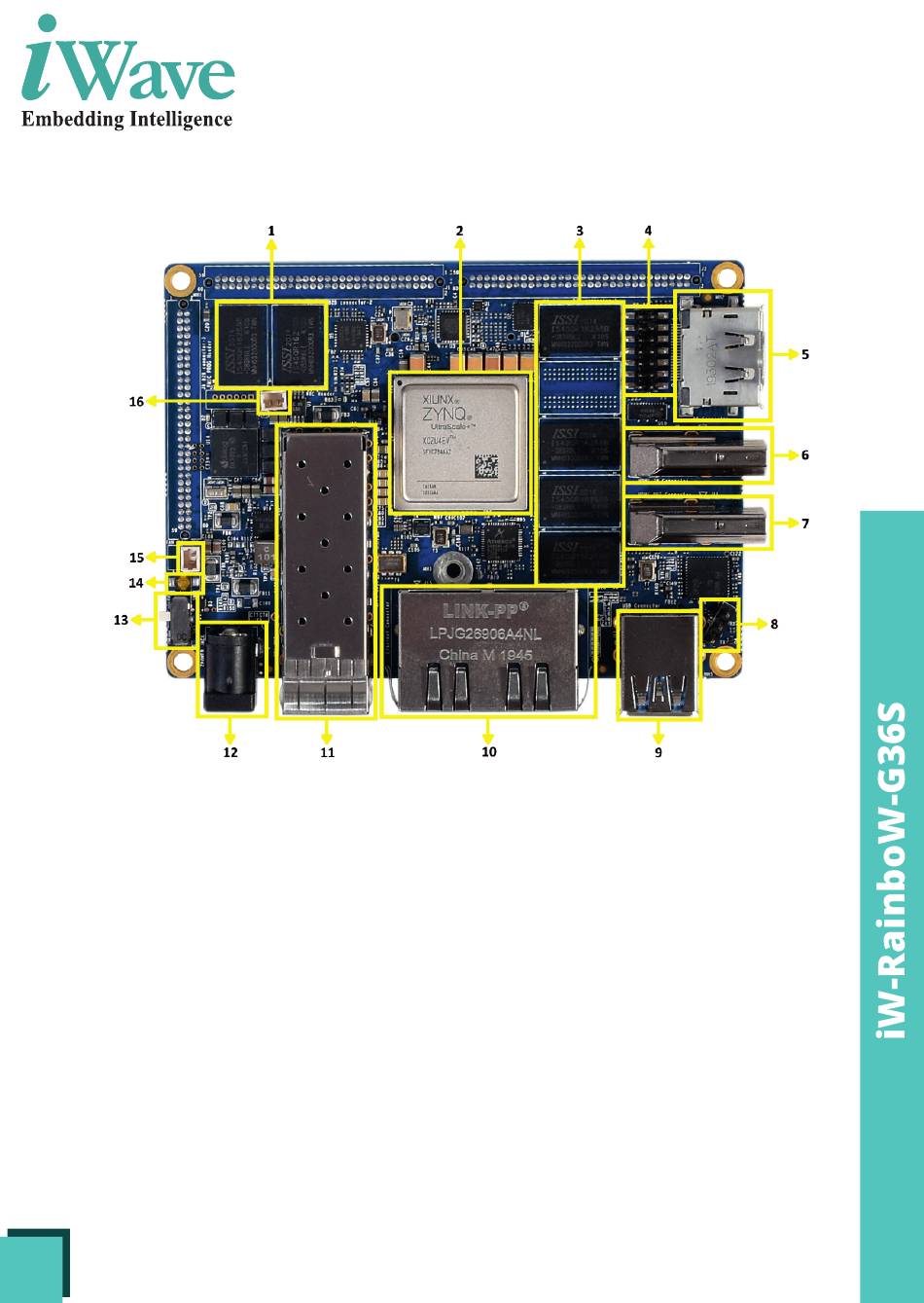

Step 4 - Quick View-SBC Top View
01. PL DDR4 RAM
02. Zynq US+ MPSoC
03. PS DDR4 RAM
04. JTAG Header
05. Display Port Connector
06. HDMI IN Connector
07. HDMI OUT Connector
08. Debug UART Header
06
09. Dual USB 3.0 Connector
10. Dual Gigabit Ethernet Jack
11. SFP+ Connector
12. Power IN Jack
13. Power ON/OFF Switch
14. RESET Button
15. FAN Header
16. RTC Battery Header
