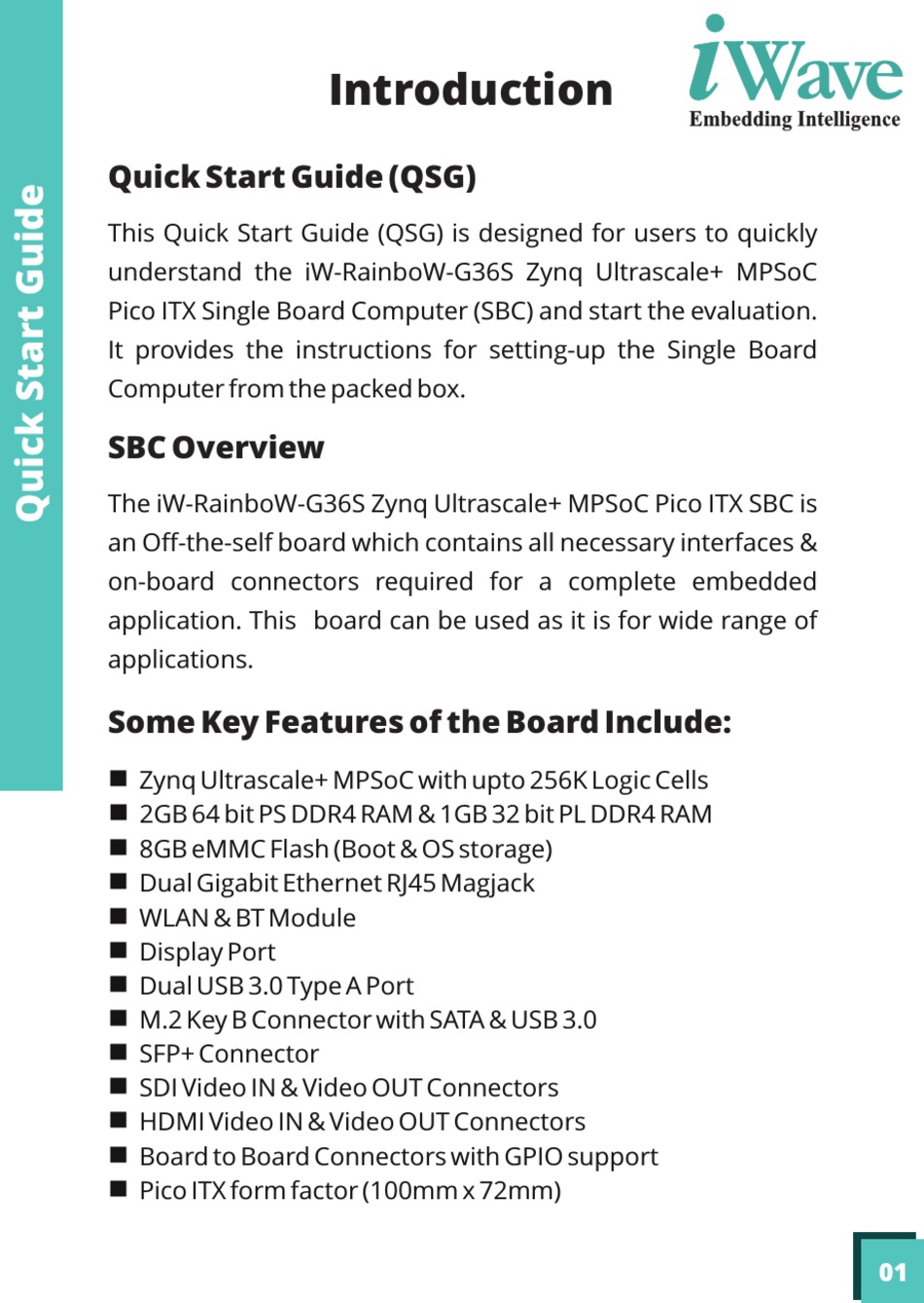

Quick Start Guide (QSG)
This Quick Start Guide (QSG) is designed for users to quickly
understand the iW-RainboW-G36S Zynq Ultrascale+ MPSoC
Pico ITX Single Board Computer (SBC) and start the evaluation.
It provides the instructions for setting-up the Single Board
Computer from the packed box.
SBC Overview
The iW-RainboW-G36S Zynq Ultrascale+ MPSoC Pico ITX SBC is
an Off-the-self board which contains all necessary interfaces &
on-board connectors required for a complete embedded
application. This board can be used as it is for wide range of
applications.
Some Key Features of the Board Include:
g
Zynq Ultrascale+ MPSoC with upto 256K Logic Cells
g
2GB 64 bit PS DDR4 RAM & 1GB 32 bit PL DDR4 RAM
g
8GB eMMC Flash (Boot & OS storage)
g
Dual Gigabit Ethernet RJ45 Magjack
g
WLAN & BT Module
g
Display Port
g
Dual USB 3.0 Type A Port
g
M.2 Key B Connector with SATA & USB 3.0
g
SFP+ Connector
g
SDI Video IN & Video OUT Connectors
g
HDMI Video IN & Video OUT Connectors
g
Board to Board Connectors with GPIO support
g
Pico ITX form factor (100mm x 72mm)
