Debug Port Setting

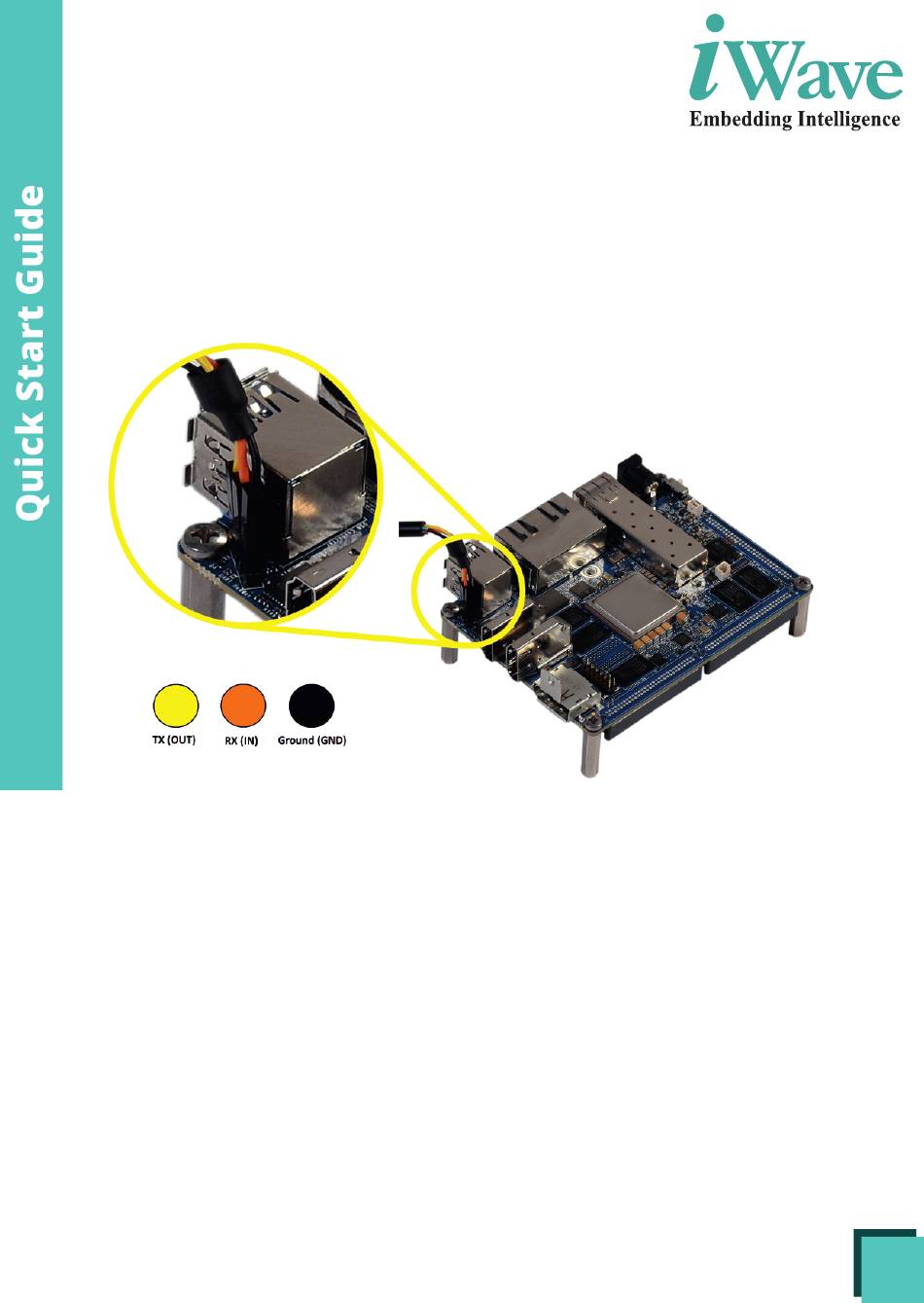

Connect TypeA end of TTL-232R-RPI cable to PC and 3 pin
(100mil) Berg house end of TTL-232R-RPI cable to SBC's Debug
UART Connector (J14) as shown below.
Install the driver for Debug Port in Host PC/Laptop using the
below link.
http://www.ftdichip.com/Products/ICs/FT232R.html
Setup the Debug Terminal parameters.
Baud Rate : 115200
Data bits : 8
Parity : None
Stop Bits : 1
Flow Control : None
