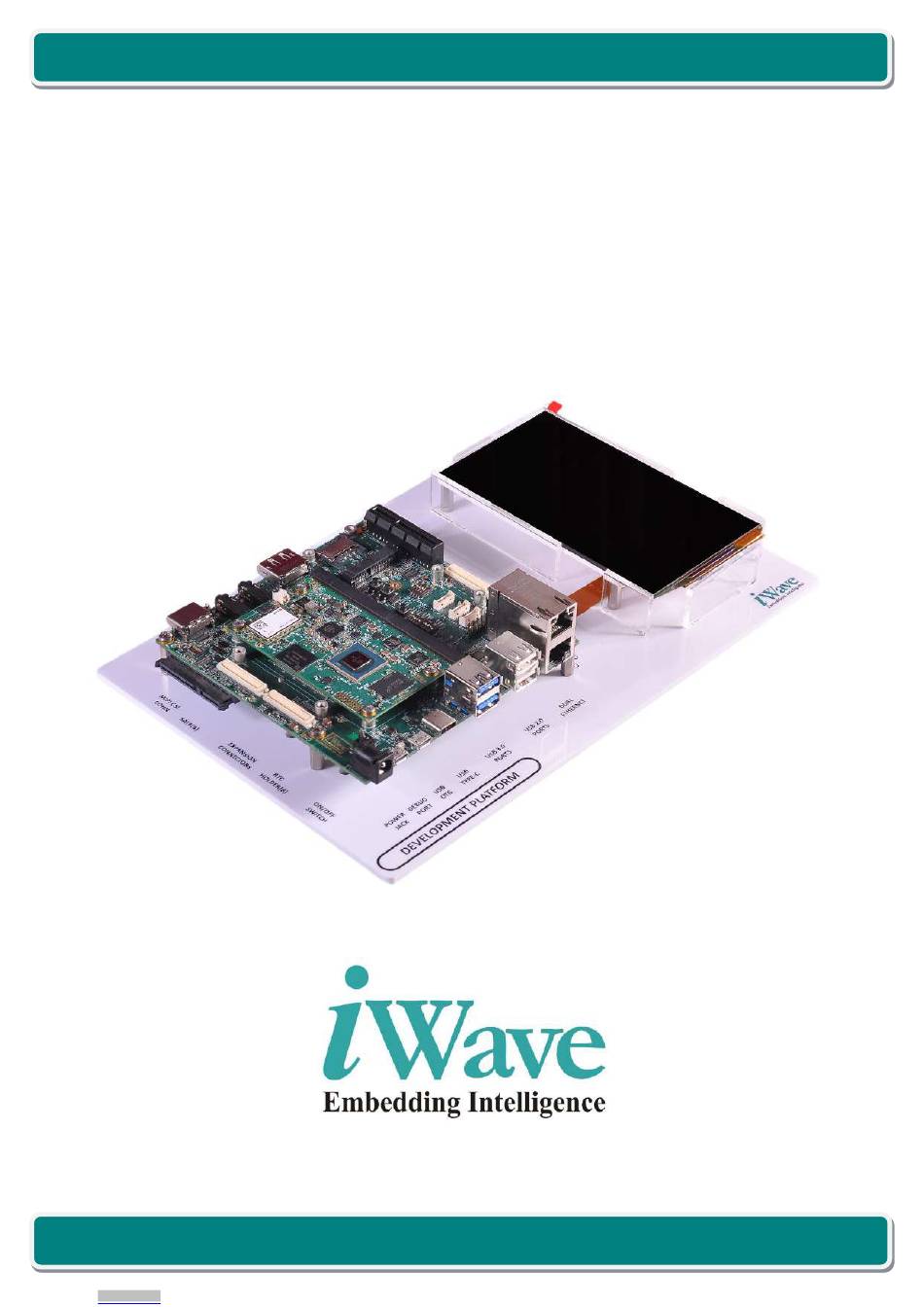

i.MX8M SMARC Development Platform Hardware User Guide
iW-RainboW-G33D
i.MX8M Quad/QuadLite/Dual
SMARC Development Platform
Hardware User Guide
REL1.1
iWave Systems Technologies Pvt. Ltd.
Page 1 of 90
Arrow.com.
Downloaded from

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iW-RainboW-G33D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iWave iW-RainboW-G33D

Summary of Contents for iWave iW-RainboW-G33D

  • Page 1 SMARC Development Platform Hardware User Guide iW-RainboW-G33D i.MX8M Quad/QuadLite/Dual SMARC Development Platform Hardware User Guide REL1.1 iWave Systems Technologies Pvt. Ltd. Page 1 of 90 Arrow.com. Downloaded from...
  • Page 2 If you are not the intended recipient (or authorized to receive for the recipient), you are hereby notified that any disclosure, copying distribution or use of any of the information contained within this document is STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” REL1.1 iWave Systems Technologies Pvt.
  • Page 3 No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.

  • Page 4: Table Of Contents

    ........................84 OWER UTPUT PECIFICATION ........................85 NVIRONMENTAL HARACTERISTICS 3.3.1 Environmental Specification ........................85 3.3.2 RoHS Compliance ........................... 85 REL1.1 iWave Systems Technologies Pvt. Ltd. Page 4 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 5 HARACTERISTICS 3.4.1 i.MX8M Q/QL/D SMARC Carrier Board Mechanical Dimensions .............. 86 3.4.2 Guidelines to insert the SMARC SOM into Carrier Board ................. 87 ORDERING INFORMATION ..........................88 REL1.1 iWave Systems Technologies Pvt. Ltd. Page 5 of 90 Arrow.com. Arrow.com. Arrow.com.
  • Page 6 ..........87 IGURE ECHANICAL DIMENSION OF I ARRIER OARD 25: SOM I ..........................87 IGURE NSERTION UIDELINE REL1.1 iWave Systems Technologies Pvt. Ltd. Page 6 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 7 16: E ........................85 ABLE NVIRONMENTAL PECIFICATION 17: O ....................... 88 ABLE RDERABLE RODUCT UMBERS REL1.1 iWave Systems Technologies Pvt. Ltd. Page 7 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from...

  • Page 8: Introduction

    RainboW-G33M-i.MX8M-SMARC-SOM-HardwareUserGuide”. Overview iW-RainboW-G33D-i.MX8M development Platform comes with i.MX8M Q/QL/D based SMARC SOM, SMARC V2.0 Generic Carrier board along with 5.5-inch Capacitive Touch Display. The development board can be used for quick prototyping of various applications targeted by the i.MX8M Q/QL/D application processor. With the 120mmx120mm Nano ITX form factor, SMARC carrier board is highly packed with all the necessary on-board connectors to validate the features of i i.MX8M Q/QL/D SMARC SOM.
  • Page 9 SMARC SOM Smart Mobility ARChitecture To Be Defined UART Universal Asynchronous Receiver/Transmitter Universal Serial Bus USB OTG USB On The Go Voltage REL1.1 iWave Systems Technologies Pvt. Ltd. Page 9 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 10: Terminlogy Description

    Note: Signal Type does not include internal pull-ups or pull-downs implemented by the chip vendors and only includes the pull-ups or pull-downs implemented On-SMARC SOM. References  IMX8MDQLQRM.pdf  SMARC Specification V2.0 REL1.1 iWave Systems Technologies Pvt. Ltd. Page 10 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 11: Architecture And Design

    2. Shared between M.2 Connector and A&V Expansion Connector 3. Shared between M.2 Connector and Expansion Connector-2 4. Shared between SPI Flash and Expansion Connector-2 Figure 1: i.MX8M Q/QL/D SMARC Development Platform Block Diagram REL1.1 iWave Systems Technologies Pvt. Ltd. Page 11 of 90 Arrow.com. Arrow.com. Arrow.com.

  • Page 12: I.mx8M Q/Ql/D Smarc Development Platform Features

     Power ON/OFF Switch  Board Configuration DIP Switch  Boot Selection DIP Switch  Reset Switch  Force Boot switch REL1.1 iWave Systems Technologies Pvt. Ltd. Page 12 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 13 At a time, do not set Both PCIe channel A & B neither to mini PCIe nor M.2 connector. Either USB Type C connector or USB 3.0 Type A top connector can be supported at a time. Anyone can be selected using on board configuration switch. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 13 of 90 Arrow.com. Arrow.com.

  • Page 14: Smarc Mxm Connector

    This SMARC MXM Edge mating connector (J16) is physically located at the top of the board as shown below. Figure 2: SMARC MXM Connector REL1.1 iWave Systems Technologies Pvt. Ltd. Page 14 of 90 Arrow.com. Arrow.com.

  • Page 15: Smarc Mxm Connector Pin Assignment

    Dual Magjack. GBE0_MDI3+ GBE0_MDI3+ IO, GBE Gigabit Ethernet0 MDI differential pair 3 positive to bottom port of Dual Magjack. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 15 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 16 Ground. SDIO_WP SD2_WP SD2_WP/M21 O, 3.3V CMOS SD Write Protect to Standard SD connector. Note: This is optional feature in SOM. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 16 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 17 SPI0_DO eCSPI1_MOSI ECSPI1_MOSI/A4 I, 1.8V CMOS eCSPI1 Master Out Slave In. Power Ground. SATA_TX+ SATA_TX- Power Ground. SATA_RX+ REL1.1 iWave Systems Technologies Pvt. Ltd. Page 17 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 18 USB Port2 HUB OUT1 Data Negative to 2 Port USB HUB. USB1_EN_OC# USB_HUB1_OC O, 3.3V CMOS USB Port2 HUB OUT1 Over Current Indicator. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 18 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 19 I, PCIe PCIe1 Transmit Negative. Power Ground. HDMI_D2+/ HDMI_TX_DATA2_ HDMI_TX_P_LN_2/ I, TMDS HDMI Transceiver 2 DP1_LANE0+ Positive to HDMI Connector. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 19 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 20 Output 1. P110 GPIO2/ SMARC_GPIO_2(GP GPIO1_IO15/J6 IO, 1.8V CMOS General Purpose Input/ CAM0_RST# IO1_15) Output 2. Used for Camera RESET. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 20 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 21 Note: This is optional feature in SOM. P123 BOOT_SEL0# BOOT_SEL0# O, 1.8V CMOS Boot Media Select bit 0 from 4bit DIP Switch (SW5). REL1.1 iWave Systems Technologies Pvt. Ltd. Page 21 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 22 SOM. P137 SER2_RX UART4_RX ECSPI2_SCLK/C5 I, 1.8V CMOS UART4 Receiver to M.2 Connector. Note: This is optional feature in SOM. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 22 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 23 CSI0_TX+/ I2C3_SDA I2C3_SDA/E9 IO, 1.8V CMOS I2C3 Data. I2C_CAM0_DAT CSI0_CK+ MIPI_CSI1_CLK_P MIPI_CSI1_CLK_P/ O, MIPI MIPI CSI1 differential Clock positive. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 23 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 24 Gigabit Ethernet1 MDI differential pair 2 positive to top port of Dual Magjack. GBE1_MDI2- GBE1_MDI2- IO, GBE Gigabit Ethernet1 MDI differential pair2 negative REL1.1 iWave Systems Technologies Pvt. Ltd. Page 24 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 25 Data Transmitter to I2S Audio Codec. I2S0_SDIN SAI2_RXD0 SAI2_RXD0/H6 I, 1.8V CMOS Serial Audio Interface 2 Data Receiver to I2S Audio Codec. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 25 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 26 USB1_TX_N/ B13 I, USB SS USB Port1 Super Speed Transmit Negative to Top Port of Dual Stack USB3.0 TypeA Connector (J15) or TypeC Connector (J18). REL1.1 iWave Systems Technologies Pvt. Ltd. Page 26 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 27 Port of Dual Stack USB3.0 TypeA Connector (J15). USB2_SSRX- USB2_RX_N USB2_RX_N/B8 O, USB SS USB Port2 Super Speed Receive Negative to bottom Port of Dual Stack REL1.1 iWave Systems Technologies Pvt. Ltd. Page 27 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 28 Power Ground. DP0_LANE0+ HDMI_TX_DATA0_ HDMI_TX_P_LN_0/ I, TMDS DP Transmitter Data0 Positive to DP connector. Note: This is optional feature in SOM. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 28 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 29 SOM. S106 DP0_AUX- HDMI_AUX_N HDMI_AUX_N/V2 I, DIFF DP AUX Negative to DP connector. Note: This is optional feature in SOM. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 29 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 30 Ground. S125 LVDS0_0+/ MIPI_DSI_DATA0_P MIPI_DSI_D0_P/B17 I, MIPI MIPI DSI Differential Data eDP0_TX0+/ Lane 0 Positive to 5.5” DSI0_D0+ AMOLED display. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 30 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 31 I, 1.8V CMOS Display Back Light M(GPIO1_14) Brightness control PWM. S142 RSVD9 S143 Power Ground. S144 eDP0_HPD GPIO_WDT_OUT(G PIO1_02) REL1.1 iWave Systems Technologies Pvt. Ltd. Page 31 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 32 Force Recovery. S156 BATLOW# S157 TEST# TEST# I, 1.8V CMOS Connected to 4bit DIP switch (SW6). S158 Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 32 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 33: Serial Interface Features

    3.3V level Translator and to USB Micro AB Connector (J22). This USB Micro AB Connector can be used for Debug purpose which is physically located at the top of the board as shown below. Figure 3: Debug UART REL1.1 iWave Systems Technologies Pvt. Ltd. Page 33 of 90 Arrow.com. Arrow.com.

  • Page 34: Data Uart Header

    UART2 interface Receive signal. UART_TXD UART2_TXD O, 3.3V CMOS UART2 interface Transmit signal. UART_RTS# UART2_RTS_B(UART4_TXD) I, 3.3V CMOS UART2 interface Ready to Send signal. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 34 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 35: High Speed Interface Features

    Switch” for more details on selecting PCIe connector. PCIex4 Connector: PCIeX4 connector (J4) is physically located at the top of the board as shown below Figure 5: PCIex4 Connector REL1.1 iWave Systems Technologies Pvt. Ltd. Page 35 of 90 Arrow.com. Arrow.com.

  • Page 36: Table 5: Pciex4 Connector Pin Out

    PCIe Port 0 Receive pair positive. PCIe Port 0 Receive pair positive. Note: Refer SW1 setting from Table 10 to support PCIE0_RX. Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 36 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 37 Ground. PETp3 Power Ground. PETn3 PERp3 Power Ground. PERn3 RSVD NC, Reserved Pin. Power Ground. PRSNT2# REL1.1 iWave Systems Technologies Pvt. Ltd. Page 37 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 38: Figure 6: Mini Pcie Connector

    1.5V Supply Voltage. CLK_REQ# CLK_REQ# O, 3.3V CMOS Used to enable Clock. UIM_PWR VSIM_3V O,3V Power 3V SIM Supply Voltage. Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 38 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 39 USB Data Positive +3.3V_aux VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. Power Ground. +3.3V_aux VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 39 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 40: Figure 7: M.2 Connector

    M.2 Connector: The i.MX8 SMARC carrier board supports M.2 Key-E Connector (J31) and is placed at the bottom side of the board. SPI, SDIO, PCIe, I2S, I2C, and UART interface are optionally supported over M.2 Connector. M.2 Connector Figure 7: REL1.1 iWave Systems Technologies Pvt. Ltd. Page 40 of 90 Arrow.com. Arrow.com. Arrow.com.

  • Page 41: Table 7: M.2 Connector Pinout

    IO, 1.8V CMOS M.2 Module I2S SD_OUT Note: This pin is connected from SMARC Edge connector S52 pin for I2S2_SDIN. This pin is also connected to A&V REL1.1 iWave Systems Technologies Pvt. Ltd. Page 41 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 42 This signal is Connected to SMARC Edge P139 pin for SER2_CTS#. SER2 is optional in default SOM Configuration. PETp0 PCIE1_TXP/PCIE2_TXP O, PCIe PCIe Port 0/1 Transmit pair positive. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 42 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 43 Note: by default, connected to Mini PCIe connector W_DISABLE# SMARC_GPIO_10(GPI O, 3.3V CMOS W_DISABLE. O1_07) This Pin is Connected to SMARC Edge P118 pin SMARC_GPIO_10. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 43 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 44 PCIe_A_RST# VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. Wake# VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 44 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 45 SMARC Development Platform Hardware User Guide Note-1: SMARC SDIO interface is directly connected to Standard SD and optionally connected to M.2 Connector. SMARC SDIO interface optional in default SOM Configuration. To Support SDIO interface at M.2 connector contact iWave Support team.

  • Page 46: Usb3.0 Otg As Device/Host Port

    ) of SMARC MXM connector USB3 port. This USB3.0 connector is physically located at the top of the board as shown below. Figure 8: USB3.0 OTG Port REL1.1 iWave Systems Technologies Pvt. Ltd. Page 46 of 90 Arrow.com. Arrow.com. Arrow.com.

  • Page 47: Usb3.0 Host Port

    ) of SMARC MXM connector USB2 port. This USB3.0 connector is physically located at the top of the board as shown below. Figure 9: USB3.0 Host Port REL1.1 iWave Systems Technologies Pvt. Ltd. Page 47 of 90 Arrow.com. Arrow.com. Arrow.com.

  • Page 48: Communication Interface Features

    (Yellow) and Link/Activity (Green) LED indications on RJ45 Magjack. This RJ45 Magjack combo connector is physically located at the top of the board as shown below. Figure 10: Dual Stack RJ45 Magjack REL1.1 iWave Systems Technologies Pvt. Ltd. Page 48 of 90 Arrow.com. Arrow.com.

  • Page 49: Usb2.0 Host Port

    SMARC MXM connector. This dual stack USB2.0 TypeA connector is physically located at the top of the board as shown below. Figure 11: USB2.0 Host Port REL1.1 iWave Systems Technologies Pvt. Ltd. Page 49 of 90 Arrow.com. Arrow.com.

  • Page 50: Sdio Port (Optional)

    This power enable/disable is controlled from the SDIO_PWR_EN pin (P37 ) of SMARC MXM connector. This SD connector (J32) is physically located at the bottom of the board as shown below. Figure 12: SDIO Port REL1.1 iWave Systems Technologies Pvt. Ltd. Page 50 of 90 Arrow.com. Arrow.com. Arrow.com.

  • Page 51: Audio & Video Features

    ) pin of SMARC MXM connector correspondingly. These Audio Jacks are physically located at the top of the board as shown below. Figure 13: Audio In and Out Ports REL1.1 iWave Systems Technologies Pvt. Ltd. Page 51 of 90 Arrow.com. Arrow.com.

  • Page 52: Mipi Dsi Display

    ) of SMARC MXM connector. This MIPI DSI display connector (J1) is physically located at the top of board as shown below. Figure 14: MIPI DSI Display Connector REL1.1 iWave Systems Technologies Pvt. Ltd. Page 52 of 90 Arrow.com. Arrow.com.

  • Page 53: Table 8: Mipi Dsi Display Connector Pin Out

    O, 1.8V Power 1.8V Supply voltage for Display IO Circuit. VDDIO VCC_1V8 3.3V Supply voltage for Display O, 3.3V Power VCI_1 Circuit. Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 53 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 54: Hdmi/Dp Port

    CPU, either one interface only can be used at a time. Display Port connector (J14) is physically located on top of the board as shown below. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 54 of 90 Arrow.com.

  • Page 55: Figure 15: Hdmi/Dp Port

    SMARC Development Platform Hardware User Guide Figure 15: HDMI/DP Port REL1.1 iWave Systems Technologies Pvt. Ltd. Page 55 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 56: Mipi Csi Camera

    Q/QL/D CPU’s dual lane MIPI CSI0 interface from SMARC MXM connector is used for this Camera interface. This MIPI CSI camera connector (J27) is physically located on top of the board as shown below. Figure 16: MIPI Camera Connector REL1.1 iWave Systems Technologies Pvt. Ltd. Page 56 of 90 Arrow.com. Arrow.com.

  • Page 57: Table 9: Mipi Camera Connector Pin Out

    MIPI_CSI1_DATA0_N I, MIPI MIPI_CSI DATA Lane0 Negative AF-VCC AF-VCC O, Power 2.8V Supply voltage AF-AGND AF-AGND Power AF Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 57 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 58: Additional Features

    The i.MX8M Q/QL/D SMARC carrier board supports SPI Flash through i.MX8M CPU’s eCSPI1 interface which is connected from SPI0 port of SMARC MXM connector. This SPI interface signals from SMARC MXM connector is connected to SPI Flash “IS25WPO16D-JNLE” and operating at 1.8V Level. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 58 of 90 Arrow.com. Arrow.com.

  • Page 59: On Board Switches

    All the seven switches location is highlight in below image and the switch description is given in the following table. Figure 18: SMARC On Board Switches REL1.1 iWave Systems Technologies Pvt. Ltd. Page 59 of 90 Arrow.com. Arrow.com. Arrow.com.

  • Page 60: Table 10: Board Configuration Switch

    (Floating) BOOT_SEL1# 110- Boot from SOM microSD (Optional) (DIP SW) 001- Boot from Carrier Board 1 -Switch ON BOOT_SEL2# SD(Optional) (GND) REL1.1 iWave Systems Technologies Pvt. Ltd. Page 60 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 61 Carrier Power ON/ OFF Carrier Board Power Carrier board Main 12V Power (Toggle SW) Switch is ON Power is OFF On/Off Switch. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 61 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 62: Audio & Video Expansion Connector

    This Audio & Video Expansion connector (J3) is physically located at the top of board as shown below. Connectors Part number : DF17(3.0)-80DS-0.5V(57) from Hirose Mating Connector : DF17(2.0)-80DP-0.5V(57) from Hirose Figure 19: Audio & Video Expansion Connector REL1.1 iWave Systems Technologies Pvt. Ltd. Page 62 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 63: Table 11: Audio

    This pin is also connected to M.2 connector (J31) 08 pin for I2S Clock. Note: This pin is connected from SMARC Edge connector S53 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 63 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 64 Note: This pin is connected from SMARC Edge connector P78 pin. Note: This pin is connected from SMARC Edge connector S111 Power Ground. Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 64 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 65 S123 pin. MIPI_CSI2_DATA2_P I, MIPI MIPI CSI1 differential data lane 2 Positive Note: This pin is connected from SMARC Edge connector P13 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 65 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 66 Power Ground. I2C1_SCL O, 1.8V CMOS I2C1 Clock for camera. Note: This pin is connected from SMARC Edge connector S1 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 66 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 67 MIPI_CSI2_CLK_P I, MIPI MIPI CSI1 differential Clock Positive. Note: This pin is connected from SMARC Edge connector P3 pin. Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 67 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 68: Som Expansion Connector(Optional)

    Mating Connector : FX8C-100S-SV(91) from Hirose Note: For this connector pinout, refer the i.MX8M Q/QL/D SMARC SOM Hardware User Guide. Figure 20: SMARC SOM Expansion Connector REL1.1 iWave Systems Technologies Pvt. Ltd. Page 68 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 69: Carrier Expansion Connectors

    & J26) are physically located at the top of board as shown below. Connectors Part number : DF17(3.0)-80DS-0.5V(57) from Hirose Mating Connector : DF17(2.0)-80DP-0.5V(57) from Hirose Figure 21: SMARC Expansion Connector REL1.1 iWave Systems Technologies Pvt. Ltd. Page 69 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 70: Table 12: Carrier Expansion Connector1 Pin Out

    Serial Audio Interface 1 Data Transmitter 5. Note: This pin is connected from SOM Expansion connector 11 pin. Note: This pin is connected from SOM Expansion connector 14 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 70 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 71 Note: This pin is connected from SOM Expansion connector 26 pin. Note: This pin is connected from SOM Expansion connector 25 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 71 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 72 SAI1_RXD2 O, 1.8V CMOS Serial Audio Interface 1 Data Receiver 2. Note: This pin is connected from SOM Expansion connector 39 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 72 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 73 SAI1_RXD6 O, 1.8V CMOS Serial Audio Interface 1 Data Receiver 6. Note: This pin is connected from SOM Expansion connector 53 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 73 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 74 General Purpose Input/Output. Note: This pin is connected from SOM Expansion connector 68 pin. Note: This pin is connected from SOM Expansion connector 67 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 74 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 75 O, 1.8V CMOS General Purpose Input/Output. Note: This pin is connected from SOM Expansion connector 77 pin. Power Ground. Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 75 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 76: Table 13: Carrier Expansion Connector2 Pin Out

    Note: This pin is connected from SOM Expansion connector 87 pin. Power Ground. Note: This pin is connected from SOM Expansion connector 90 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 76 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 77 WDT_TIME_OUT# I, 1.8V CMOS Watch DOG Time Out Interrupt. Note: This pin is connected from SMARC Edge connector S145 pin. Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 77 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 78 Note: This pin is connected from SMARC Edge connector S8 pin. eCSPI1_SCLK I, 1.8V CMOS eCSPI 1 Clock. This pin is also connected to on board SPI Flash. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 78 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 79 This pin is also connected to MIPI CSI camera connector. Note: This pin is connected from SMARC Edge connector S12 pin. Power Ground. Power Ground. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 79 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 80 QSPI_B_CLK I, 1.8V CMOS QSPIB Clock. This pin is connected to M.2 connector. Note: This pin is connected from SMARC Edge connector P56 pin. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 80 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 81 VCC_5V O, 5V Power 5V Supply voltage. VCC_3V3 O, 3.3V Power 3.3V Supply voltage. VCC_5V O, 5V Power 5V Supply voltage. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 81 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 82 VCC_3V3 O, 3.3V Power 3.3V Supply voltage. VCC_5V O, 5V Power 5V Supply voltage. VCC_3V3 O, 3.3V Power 3.3V Supply voltage. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 82 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 83: Technical Specification

    Plugs with an inner dimension of 2.5mm and an outer dimension of 5.5mm. This connector is physically placed at the top of the board as shown below. Figure 22: Power Jack REL1.1 iWave Systems Technologies Pvt. Ltd. Page 83 of 90 Arrow.com. Arrow.com.

  • Page 84: Power Output Specification

    500mA Power to Add-On Module (through Expansion Connector2) VCC_5V 4.85V 5.15V 1500mA VCC_3V3 3.15 3.45 1500mA VCC_1V8 500mA REL1.1 iWave Systems Technologies Pvt. Ltd. Page 84 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 85: Environmental Characteristics

    3.3.3 Electrostatic Discharge iWave’s i.MX8M Q/QL/D SMARC Development Platform is sensitive to electro static discharge and so high voltages caused by static electricity could damage some of the devices on board. It is packed with necessary protection while shipping.

  • Page 86: Mechanical Characteristics

    The i.MX8M Q/QL/D SMARC Development Platform PCB size is 120 mm x 120 mm x 1.6mm. SMARC carrier card mechanical dimension is shown below. (All dimensions are shown in mm) Figure 23: Mechanical dimension of i.MX8M Q/QL/D SMARC Carrier Board- Top View REL1.1 iWave Systems Technologies Pvt. Ltd. Page 86 of 90 Arrow.com. Arrow.com.

  • Page 87: Guidelines To Insert The Smarc Som Into Carrier Board

    Once the SMARC module is inserted to the MXM connector properly, press the board vertically down as shown below, such that the board is fixed firmly into the expansion connectors and fix the board by screwing. Figure 25: SOM Insertion Guideline REL1.1 iWave Systems Technologies Pvt. Ltd. Page 87 of 90 Arrow.com. Arrow.com.

  • Page 88: Ordering Information

    LCD display i.MX8M Dual SMARC Android 2xEthernet Development Platform with 1GB RAM, 8GB eMMC with 5.5" iW-G33D-SCMD-4L001G-E008G-ACC Commercial Capacitive touch LCD display REL1.1 iWave Systems Technologies Pvt. Ltd. Page 88 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
  • Page 89 Development Platform with 1GB RAM, 8GB eMMC without iW-G33D-SCMD-4L001G-E008G-ACD Commercial 5.5" Capacitive touch LCD display Note: For Development platform identification purpose, Product part number is pasted as Label with Barcode readable format. REL1.1 iWave Systems Technologies Pvt. Ltd. Page 89 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.

  • Page 90: Iwave Systems Technologies Pvt. Ltd

    SMARC Development Platform Hardware User Guide REL1.1 iWave Systems Technologies Pvt. Ltd. Page 90 of 90 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
